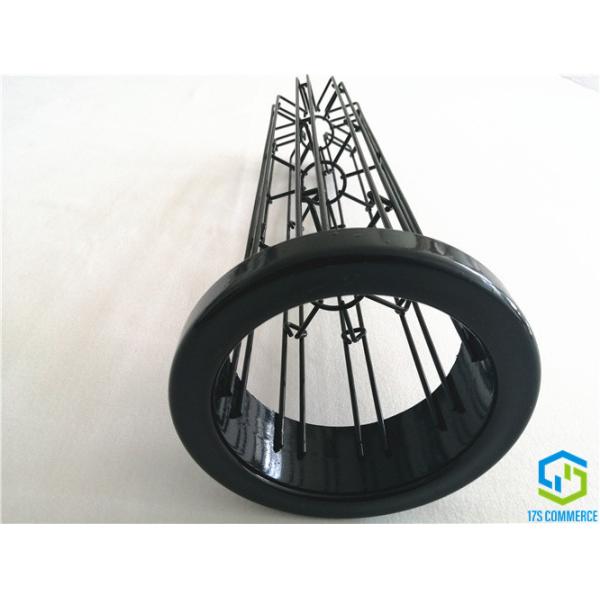

8 Pleat P84 Star Filter Bag Cage Pleat Bag Cage Bag House PE Star
Bag Cage Spider Cage
1. Specification
Star cage, also names pleat cage, spider cage, is the bone and
framework of bag, supporting the bag running, is special designed
and made for star bag. Star Cages are welded by special supporting
rings (Spiders). We are specialized in Star Cages design, develop
and process. We have own stretch line, cut line, weld line, coating
line and check equipment. Providing a wide range of star filter
cages for bag house collector, which improve the performance,
efficiency and bottom line of the bag house dust collector and
flue.
2. Datasheet
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 8 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 110, 120, 138, 144, 150 | mm | |
| Vertical Wire | Number | 16 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | wire |  |
| Thickness | 4 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section / two sections | ||
| Joining Method | No | ||
| Top Cap | Type | weld U shape top cap, various choices | |
| Size | be up to cage | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | wire bent inworder | |
| Size | 120 | mm | |
| Thickness | no | mm | |
| Fix | no | ||

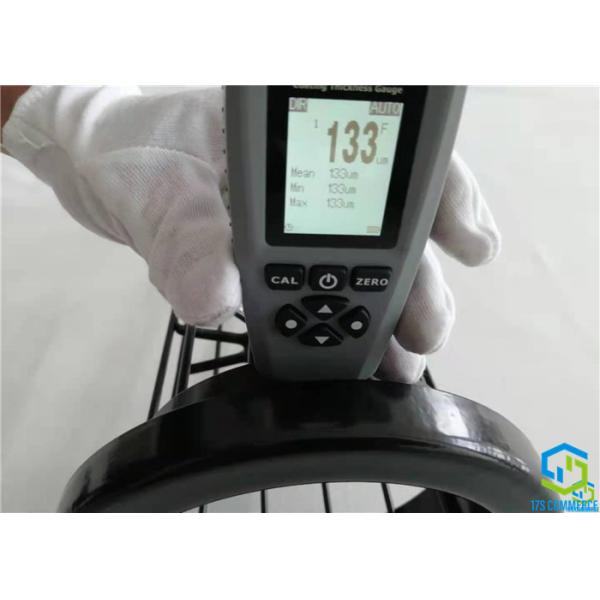

| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. Advantage
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
| 130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 | |
| 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 | |
| 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 | |
| 12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
| 130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 | |
| 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 | |
So
• longer bag service life
• increase the air volume of existing dust collectors to increase production capacity
• lower emission
• reduce energy consuption
• reduce operation cost
• reduce pressure drop
• lower pulse jet pressure and frequence
• small bag house and building area
• lower the filter velocity
4. Cage test
|
Dust Filter Cages For Bag House and Dust collectors And Various Choices
12 Pleat P84 Star Filter Bag Cage Pleat Bag Cage Spider Cage Bag House P84 Star Bag Cage
Enlarged Ring Top Cap Carbon Steel Star Filter Cages
Q235 Wild Steel Dust Collector Filter Cage Silicon Coating
8 Pleat Aramid Star Bag Cage Dust Collector Cages
Aramid 12 Pleat Bag Cage Dust Collector Filter Cage
P84 Felt Bag Cage Dust Collector Filter Bag Cages
Polyester Star Bag 150mm Dust Collector Filter Cage
12 Pleat Q235 Mild Steel Baghouse Filter Cages PTFE Star Bag Cage
Galvanized Mild Steel Wire Dust Collector Filter Cage
