High Torque 42mm Dia 24 Volt 35rpm 4.5N.M rs530 Dc Metal Gear Motor ce

Categories	DC Spur Gear Motor
Brand Name:	TYHE
Model Number:	TJZ42FGa
Certification:	CE/ROHS/ISO9001
Place of Origin:	China
MOQ:	500pcs
Price:	Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	100000pcs per month
Delivery Time:	15 working days after payment
Packaging Details:	Foam wrapped, carton packed
Size:	42mm size
Voltage:	6V 12V 16V 24V
Speed:	10-800rpm
Torque:	5N.m
Gear material:	Powder metallurgy, steel gear
Commutation:	brushed
Type:	Gear Motor, Micro Motor
Usage:	Electric threading knife
Keywords:	High Torque 42mm Dia 24 Volt 35rpm 4.5N.M rs530 Dc Metal Gear Motor ce

Contact Now

Add to Cart

Company Info.

Wenzhou Tyhe Motor Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

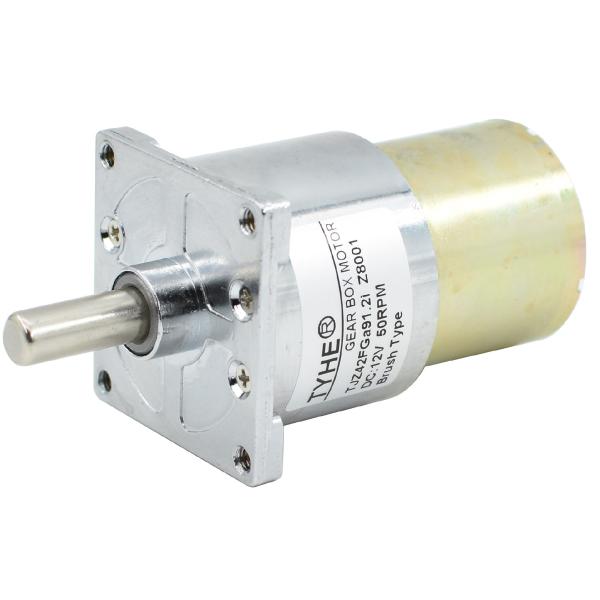

High Torque 42mm Dia 24 Volt 35rpm 4.5N.M rs530 Dc Metal Gear Motor ce

Products Description

High Torque 42mm Dia 24 Volt 35rpm 4.5N.M Rs530 Dc Metal Gear Motor Ce

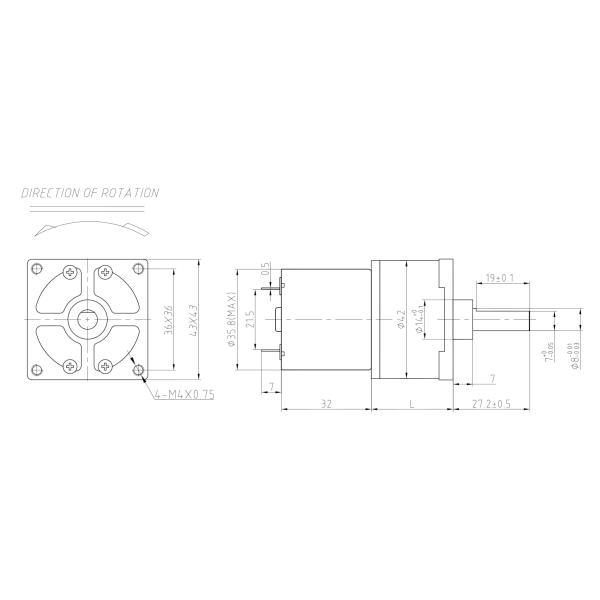

2D drawing

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ42FGa	φ42mm	RS50	8mm-D cut	380g


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	3500	60	2800	0.21	5.30	1.55	61.91	15.90	1.43
RS530	12	5000	160	4000	0.49	8.90	3.73	62.86	26.70	3.05
RS530	24	5000	80	4000	0.25	9.12	3.82	62.83	27.36	1.60
RS530	24	7500	72	6000	0.37	9.25	5.81	64.63	27.75	3.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-3500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1120.0	1.26	10.73	32.20	1600.0	3.02	18.02	54.07
25.7	81	3.1	903.2	1.26	13.31	39.92	1290.3	3.02	22.35	67.04
25.7	81	3.8	736.8	1.26	16.31	48.94	1052.6	3.02	27.39	82.18
25.7	81	4.8	583.3	1.26	20.61	61.82	833.3	3.02	34.60	103.81
25.7	81	6.1	459.0	1.26	26.19	78.56	655.7	3.02	43.97	131.92
25.7	73	6.8	411.8	1.13	26.31	78.93	588.2	2.72	44.18	132.54
25.7	73	8.3	337.3	1.13	32.11	96.34	481.9	2.72	53.93	161.78
25.7	73	10.3	271.8	1.13	39.85	119.55	388.3	2.72	66.92	200.76
25.7	73	12.8	218.8	1.13	49.52	148.57	312.5	2.72	83.16	249.48
25.7	73	16.4	170.7	1.13	63.45	190.35	243.9	2.72	106.55	319.65
25.7	65.6	18.2	153.8	1.02	63.28	189.83	219.8	2.45	106.26	318.78
25.7	65.6	22.2	126.1	1.02	77.18	231.55	180.2	2.45	129.61	388.84
25.7	65.6	27.4	102.2	1.02	95.26	285.79	146.0	2.45	159.97	479.92
25.7	65.6	34.2	81.9	1.02	118.91	356.72	117.0	2.45	199.67	599.02
25.7	65.6	43.8	63.9	1.02	152.28	456.85	91.3	2.45	255.72	767.17
29.5	59	48.6	57.6	0.92	151.97	455.92	82.3	2.20	255.20	765.60
29.5	59	59.3	47.2	0.92	185.43	556.29	67.5	2.20	311.38	934.15
29.5	59	73.0	38.4	0.92	228.27	684.81	54.8	2.20	383.32	1149.97
29.5	59	91.2	30.7	0.92	285.18	855.55	43.9	2.20	478.89	1436.67
29.5	59	117.0	23.9	0.92	365.86	1097.58	34.2	2.20	614.37	1843.10
29.5	59	120.0	23.3	0.92	375.24	1125.72	33.3	2.20	630.12	1890.36
32.7	53	130.0	21.5	0.82	365.17	1095.51	30.8	1.98	613.21	1839.63
32.7	53	158.0	17.7	0.82	443.82	1331.47	25.3	1.98	745.29	2235.86
32.7	53	195.0	14.4	0.82	547.76	1643.27	20.5	1.98	919.82	2759.45
32.7	53	243.0	11.5	0.82	682.59	2047.76	16.5	1.98	1146.23	3438.69
32.7	53	311.0	9.0	0.82	873.60	2620.80	12.9	1.98	1466.99	4400.96
32.7	53	323.0	8.7	0.82	907.31	2721.92	12.4	1.98	1523.59	4570.77
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-5000RPM Input				24V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1600.0	3.09	18.47	55.40	2400.0	4.71	18.73	56.19
25.7	81	3.1	1290.3	3.09	22.90	68.70	1935.5	4.71	23.23	69.68
25.7	81	3.8	1052.6	3.09	28.07	84.21	1578.9	4.71	28.47	85.41
25.7	81	4.8	833.3	3.09	35.46	106.38	1250.0	4.71	35.96	107.89
25.7	81	6.1	655.7	3.09	45.06	135.19	983.6	4.71	45.70	137.11
25.7	73	6.8	588.2	2.79	45.27	135.82	882.4	4.24	45.92	137.75
25.7	73	8.3	481.9	2.79	55.26	165.77	722.9	4.24	56.05	168.14
25.7	73	10.3	388.3	2.79	68.57	205.72	582.5	4.24	69.55	208.65
25.7	73	12.8	312.5	2.79	85.22	255.65	468.8	4.24	86.43	259.30
25.7	73	16.4	243.9	2.79	109.18	327.55	365.9	4.24	110.74	332.22
25.7	65.6	18.2	219.8	2.51	108.89	326.66	329.7	3.81	110.44	331.31
25.7	65.6	22.2	180.2	2.51	132.82	398.45	270.3	3.81	134.71	404.13
25.7	65.6	27.4	146.0	2.51	163.93	491.78	219.0	3.81	166.26	498.79
25.7	65.6	34.2	117.0	2.51	204.61	613.83	175.4	3.81	207.53	622.58
25.7	65.6	43.8	91.3	2.51	262.04	786.13	137.0	3.81	265.78	797.34
29.5	59	48.6	82.3	2.25	261.51	784.52	123.5	3.43	265.23	795.70
29.5	59	59.3	67.5	2.25	319.08	957.24	101.2	3.43	323.63	970.89
29.5	59	73.0	54.8	2.25	392.80	1178.40	82.2	3.43	398.40	1195.19
29.5	59	91.2	43.9	2.25	490.73	1472.19	65.8	3.43	497.72	1493.17
29.5	59	117.0	34.2	2.25	629.55	1888.66	51.3	3.43	638.53	1915.58
29.5	59	120.0	33.3	2.25	645.70	1937.09	50.0	3.43	654.90	1964.70
32.7	53	130.0	30.8	2.02	628.37	1885.10	46.2	3.08	637.33	1911.98
32.7	53	158.0	25.3	2.02	763.71	2291.13	38.0	3.08	774.60	2323.79
32.7	53	195.0	20.5	2.02	942.55	2827.66	30.8	3.08	955.99	2867.96
32.7	53	243.0	16.5	2.02	1174.56	3523.69	24.7	3.08	1191.31	3573.92
32.7	53	311.0	12.9	2.02	1503.25	4509.75	19.3	3.08	1524.68	4574.03
32.7	53	323.0	12.4	2.02	1561.25	4683.76	18.6	3.08	1583.51	4750.52

Please let us know your requirements and we will provide you with transmission solutions.
