IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof

Categories	DC Spur Gear Motor
Brand Name:	TYHE
Model Number:	TJZ60FO
Certification:	CE/ROHS/ISO9001
Place of Origin:	China
MOQ:	500pcs
Price:	Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	100000pcs per month
Delivery Time:	15 working days after payment
Packaging Details:	Foam wrapped, carton packed
Size:	60mm
Voltage:	12-24V
Speed:	Customized
Torque:	10N.m
Gear material:	Steel
Commutation:	Brush
Type:	Gear Motor, Micro Motor
Usage:	head-up display, vehicle sunroof
Keywords:	IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof

Contact Now

Add to Cart

Company Info.

Wenzhou Tyhe Motor Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof

Products Description

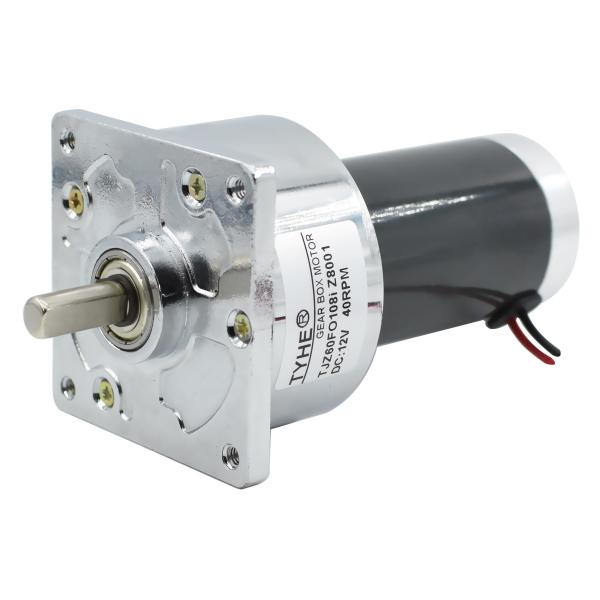

IE3 Full Steel Big Power 60mm Size 25w 12v 24v Brushed Dc Small Gear Motor For Vehicle Sunroof

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3864	12	5700	340	4560	1.22	19.80	9.45	64.37	59.40	7.14
ZY3864	12	6000	380	4800	1.37	20.30	10.20	62.15	60.90	7.98
ZY3864	24	4500	130	3600	0.46	18.20	6.86	62.83	54.60	2.60
ZY3864	24	5000	160	4000	0.55	19.50	8.17	61.88	58.50	3.10
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			12V-5700RPM Input				12V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	786.2	7.66	93.02	279.06	827.6	8.26	95.37	286.11
28.5	81	6.8	670.6	7.66	109.06	327.18	705.9	8.26	111.81	335.44
28.5	81	7.9	577.2	7.66	126.70	380.10	607.6	8.26	129.90	389.70
28.5	81	8.8	518.2	7.66	141.13	423.40	545.5	8.26	144.70	434.10
28.5	81	9.8	465.3	7.66	157.17	471.52	489.8	8.26	161.14	483.42
28.5	81	10.5	434.3	7.66	168.40	505.20	457.1	8.26	172.65	517.95
28.5	81	11.6	393.1	7.66	186.04	558.12	413.8	8.26	190.74	572.22
33.5	73	18.6	245.2	6.90	268.84	806.53	258.1	7.45	275.63	826.90
33.5	73	24.0	190.0	6.90	346.90	1040.69	200.0	7.45	355.66	1066.97
33.5	73	28.0	162.9	6.90	404.71	1214.14	171.4	7.45	414.93	1244.80
33.5	73	33.6	135.7	6.90	485.65	1456.96	142.9	7.45	497.92	1493.76
36	65.6	60.0	76.0	6.20	779.33	2337.98	80.0	6.69	799.01	2397.02
36	65.6	71.0	64.2	6.20	922.20	2766.61	67.6	6.69	945.49	2836.48
36	65.6	83.0	54.9	6.20	1078.07	3234.21	57.8	6.69	1105.29	3315.88
36	65.6	91.0	50.1	6.20	1181.98	3545.94	52.7	6.69	1211.83	3635.49
36	65.6	100.0	45.6	6.20	1298.88	3896.64	48.0	6.69	1331.68	3995.04
36	65.6	108.0	42.2	6.20	1402.79	4208.37	44.4	6.69	1438.21	4314.64
36	65.6	118.0	38.6	6.20	1532.68	4598.04	40.7	6.69	1571.38	4714.15
40	59	191.0	23.9	5.58	2231.26	6693.79	25.1	6.02	2287.61	6862.82
40	59	226.0	20.2	5.58	2640.13	7920.40	21.2	6.02	2706.80	8120.41
40	59	265.0	17.2	5.58	3095.73	9287.19	18.1	6.02	3173.91	9521.72
40	59	288.0	15.8	5.58	3364.42	10093.25	16.7	6.02	3449.38	10348.13
40	59	345.0	13.2	5.58	4030.29	12090.87	13.9	6.02	4132.07	12396.20
40	59	379.0	12.0	5.58	4427.48	13282.43	12.7	6.02	4539.28	13617.85
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			24V-4500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	620.7	5.56	85.50	256.51	689.7	6.62	91.61	274.83
28.5	81	6.8	529.4	5.56	100.25	300.74	588.2	6.62	107.41	322.22
28.5	81	7.9	455.7	5.56	116.46	349.39	506.3	6.62	124.78	374.34
28.5	81	8.8	409.1	5.56	129.73	389.19	454.5	6.62	139.00	416.99
28.5	81	9.8	367.3	5.56	144.47	433.41	408.2	6.62	154.79	464.37
28.5	81	10.5	342.9	5.56	154.79	464.37	381.0	6.62	165.85	497.54
28.5	81	11.6	310.3	5.56	171.01	513.02	344.8	6.62	183.22	549.67
33.5	73	18.6	193.5	5.01	247.12	741.36	215.1	5.96	264.77	794.31
33.5	73	24.0	150.0	5.01	318.86	956.59	166.7	5.96	341.64	1024.92
33.5	73	28.0	128.6	5.01	372.01	1116.02	142.9	5.96	398.58	1195.74
33.5	73	33.6	107.1	5.01	446.41	1339.23	119.0	5.96	478.30	1434.89
36	65.6	60.0	60.0	4.50	716.35	2149.06	66.7	5.36	767.52	2302.56
36	65.6	71.0	50.7	4.50	847.68	2543.05	56.3	5.36	908.23	2724.70
36	65.6	83.0	43.4	4.50	990.95	2972.86	48.2	5.36	1061.74	3185.21
36	65.6	91.0	39.6	4.50	1086.47	3259.40	44.0	5.36	1164.07	3492.22
36	65.6	100.0	36.0	4.50	1193.92	3581.76	40.0	5.36	1279.20	3837.60
36	65.6	108.0	33.3	4.50	1289.43	3868.30	37.0	5.36	1381.54	4144.61
36	65.6	118.0	30.5	4.50	1408.83	4226.48	33.9	5.36	1509.46	4528.37
40	59	191.0	18.8	4.05	2050.96	6152.87	20.9	4.82	2197.46	6592.37
40	59	226.0	15.9	4.05	2426.79	7280.36	17.7	4.82	2600.13	7800.39
40	59	265.0	13.6	4.05	2845.57	8536.71	15.1	4.82	3048.83	9146.48
40	59	288.0	12.5	4.05	3092.54	9277.63	13.9	4.82	3313.44	9940.32
40	59	345.0	10.4	4.05	3704.61	11113.83	11.6	4.82	3969.23	11907.68
40	59	379.0	9.5	4.05	4069.70	12209.11	10.6	4.82	4360.40	13081.19

Please let us know your requirements and we will provide you with transmission solutions.
