PMDC 24V 5nm 12V DC Metal Gear Motor 32mm 10 Kg Cm Torque

Categories	12V DC Gear Motor
Brand Name:	TYHE
Model Number:	TJX32RM
Certification:	CE/ROHS/ISO9001
Place of Origin:	China
MOQ:	500pcs
Price:	Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	100000pcs per month
Delivery Time:	15 working days after payment
Packaging Details:	Foam wrapped, carton packed
Size:	OD 32mm diameter
Voltage:	6v~24v or customized
Speed:	1-2000rpm Customized
Torque:	5N.m
Gear material:	Metal gears
Commutation:	brushes
Type:	DC Planetary Gear Motor, Small Motor
Keywords:	32mm Diameter Pm 12v 24v 5nm 10kg Torque Small Size Electric Dc Planetary Metal Gear Motor

Contact Now

Add to Cart

Company Info.

Wenzhou Tyhe Motor Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

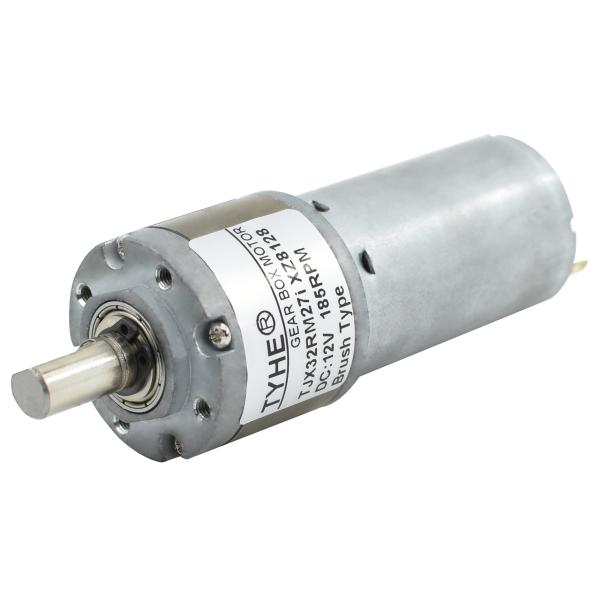

PMDC 24V 5nm 12V DC Metal Gear Motor 32mm 10 Kg Cm Torque

Products Description

32mm Diameter Pm 12v 24v 5nm 10kg Torque Small Size Electric Dc Planetary Metal Gear Motor

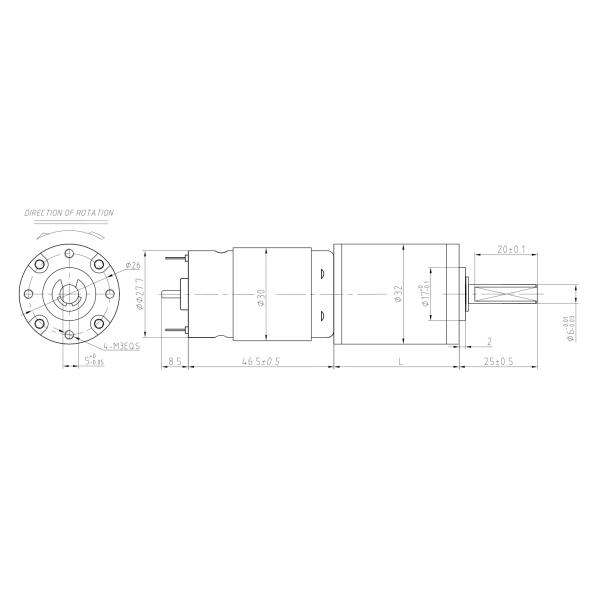

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS395	12	4500	100	3600	0.29	5.90	2.22	63.55	17.70	1.70
RS395	12	7500	160	6000	0.62	7.30	4.59	62.15	21.90	4.50
RS395	24	5000	50	4000	0.17	6.30	2.64	64.68	18.90	1.14
RS395	24	5300	60	4240	0.20	6.70	2.97	62.49	20.10	1.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-4500RPM Input				12V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
21.4	90	3.7	973.0	2.00	19.65	58.94	1621.6	4.13	24.31	72.93
21.4	90	5.2	692.3	2.00	27.61	82.84	1153.8	4.13	34.16	102.49
27.7	81	13.7	262.8	1.80	65.47	196.42	438.0	3.71	81.01	243.02
27.7	81	19.2	187.5	1.80	91.76	275.27	312.5	3.71	113.53	340.59
27.7	81	26.9	133.8	1.80	128.56	385.67	223.0	3.71	159.06	477.18
27.7	81	35.0	102.9	1.80	167.27	501.80	171.4	3.71	206.96	620.87
34	73	51.0	70.6	1.62	219.66	658.97	117.6	3.35	271.78	815.34
34	73	71.0	50.7	1.62	305.80	917.39	84.5	3.35	378.36	1135.08
34	73	100.0	36.0	1.62	430.70	1292.10	60.0	3.35	532.90	1598.70
34	73	139.0	25.9	1.62	598.67	1796.02	43.2	3.35	740.73	2222.19
40.4	65.6	189.0	19.0	1.46	731.51	2194.52	31.7	3.01	905.08	2715.25
40.4	65.6	264.0	13.6	1.46	1021.79	3065.36	22.7	3.01	1264.24	3792.73
40.4	65.6	369.0	9.8	1.46	1428.18	4284.53	16.3	3.01	1767.07	5000.00
40.4	65.6	514.0	7.0	1.46	1989.39	5000.00	11.7	3.01	2461.44	5000.00
40.4	65.6	721.0	5.0	1.46	2790.56	5000.00	8.3	3.01	3452.72	5000.00
46.7	59	699.0	5.2	1.31	2433.22	5000.00	8.6	2.71	3010.59	5000.00
46.7	59	977.0	3.7	1.31	3400.94	5000.00	6.1	2.71	4207.94	5000.00
46.7	59	1367.0	2.6	1.31	4758.53	5000.00	4.4	2.71	5000.00	5000.00
46.7	59	1911.0	1.9	1.31	5000.00	5000.00	3.1	2.71	5000.00	5000.00
46.7	59	2672.0	1.3	1.31	5000.00	5000.00	2.2	2.71	5000.00	5000.00
46.7	59	3736.0	1.0	1.31	5000.00	5000.00	1.6	2.71	5000.00	5000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-5000RPM Input				24V-5300RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
21.4	90	3.7	1081.1	2.37	20.98	62.94	1145.9	2.68	22.31	66.93
21.4	90	5.2	769.2	2.37	29.48	88.45	815.4	2.68	31.36	94.07
27.7	81	13.7	292.0	2.14	69.91	209.73	309.5	2.41	74.35	223.05
27.7	81	19.2	208.3	2.14	97.98	293.93	220.8	2.41	104.20	312.60
27.7	81	26.9	148.7	2.14	137.27	411.81	157.6	2.41	145.99	437.96
27.7	81	35.0	114.3	2.14	178.61	535.82	121.1	2.41	189.95	569.84
34	73	51.0	78.4	1.93	234.55	703.65	83.1	2.17	249.44	748.32
34	73	71.0	56.3	1.93	326.53	979.59	59.7	2.17	347.26	1041.78
34	73	100.0	40.0	1.93	459.90	1379.70	42.4	2.17	489.10	1467.30
34	73	139.0	28.8	1.93	639.26	1917.78	30.5	2.17	679.85	2039.55
40.4	65.6	189.0	21.2	1.73	781.10	2343.30	22.4	1.95	830.69	2492.08
40.4	65.6	264.0	15.2	1.73	1091.06	3273.18	16.1	1.95	1160.33	3481.00
40.4	65.6	369.0	10.8	1.73	1525.00	4575.01	11.5	1.95	1621.83	4865.49
40.4	65.6	514.0	7.8	1.73	2124.26	5000.00	8.2	1.95	2259.13	5000.00
40.4	65.6	721.0	5.5	1.73	2979.75	5000.00	5.9	1.95	3168.94	5000.00
46.7	59	699.0	5.7	1.56	2598.18	5000.00	6.1	1.76	2763.15	5000.00
46.7	59	977.0	4.1	1.56	3631.51	5000.00	4.3	1.76	3862.08	5000.00
46.7	59	1367.0	2.9	1.56	5000.00	5000.00	3.1	1.76	5000.00	5000.00
46.7	59	1911.0	2.1	1.56	5000.00	5000.00	2.2	1.76	5000.00	5000.00
46.7	59	2672.0	1.5	1.56	5000.00	5000.00	1.6	1.76	5000.00	5000.00
46.7	59	3736.0	1.1	1.56	5000.00	5000.00	1.1	1.76	5000.00	5000.00

Please let us know your requirements and we will provide you with transmission solutions.
