| Brand Name: | CR |
| Model Number: | OEM206/WP300 |
| Certification: | CE ISO9001 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | USD50/PCS |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/month |
| Delivery Time: | 8 |

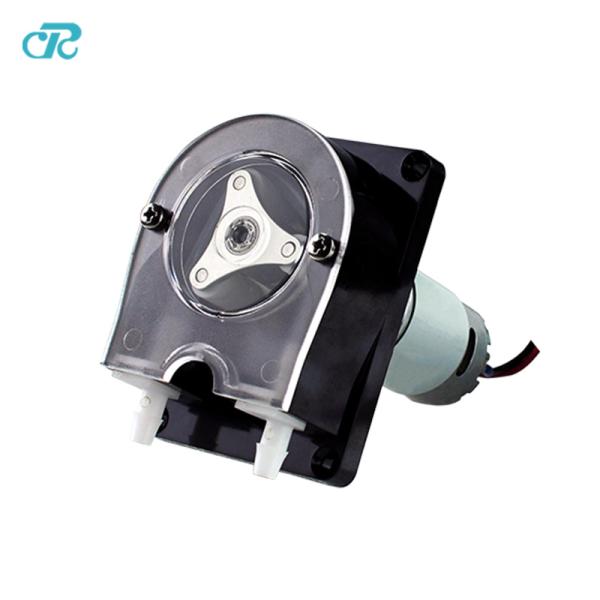

Custom mounting brackets available.
- Ideal for fluid transfer application which require high accuracy
and repeatability.
- Pump head is compact and simple in design with same side tubing
entry/exit.
- Perfect for space-limited applications.
- Pump heads are compact and easy to integrate into your OEM
applications.
- Call for more information on our OEM services.
Order number | Model | Pump head | Motor Voltage | Motor speed | Flow with tube 18# |
20624125 | OEM206-1 | WP300-3 | DC24V | 125rpm | 400 ml/min |
20624300 | OEM206-1 | WP300-3 | DC24V | 300 rpm | 1000 ml/min |
20612300 | OEM206-1 | wp300-3 | DC12V | 300 rpm | 1000 ml/min |
Tube model | ID(mm) | OD(mm) | Max Flow with 125 rpm(ml/min) | Max Flow with 300 rpm(ml/min) |
18# | 7.9 | 11.2 | 400 | 1000 |
17# | 6.4 | 9.6 | 300 | 750 |
25# | 4.8 | 8 | 200 | 500 |
14# | 1.6 | 4.8 | 20 | 50 |
|
