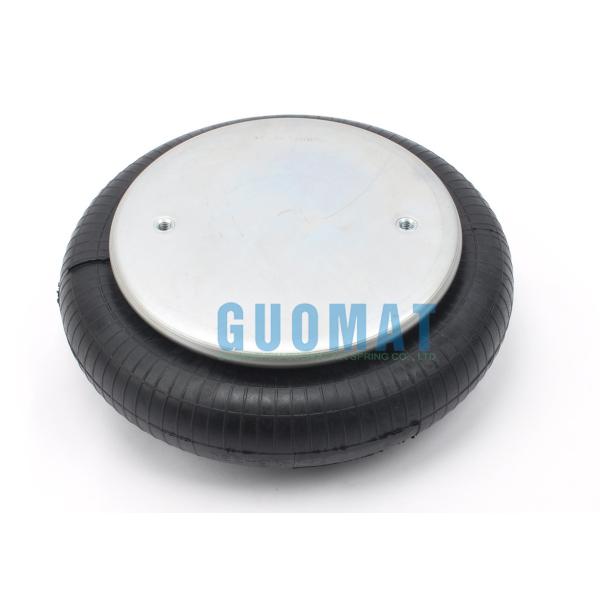

W01-358-7011 Firestone Rear Air Bags Industrial Shock Bellows Style 19 For Container Pallet

W01-358-7011 Firestone Air Spring Industrial Shock Bellows Style 19 For Container Pallet

GUOMAT 1B5330-3/4 Cross OEM Original Equipment Manufacturer:

GUOMAT Part Number:1B5330-3/4

Firestone Order Number: W01-358-7011 /

Firestone Order Number:WO13587011 /

Firestone Order Number:WO1-358-7011 /

Firestone Order Number:W013587011 /

Firestone Order Number:W01 358 7011

Firestone Part Number:W01-358-7011 /

Firestone Part Number:WO13587011 /

Firestone Part Number:WO1-358-7011 /

Firestone Part Number:W013587011 /

Firestone Part Number:W01 358 7011

Firestone Bellows Number: 19

Goodyear Part Number:1B12-300 /

Goodyear Part Number:1B12 300 /

Goodyear Part Number:1B12300 /

Goodyear Part Number:1B12-313

Goodyear Part Number:1B12 313

Goodyear Part Number:1B12313

Goodyear Bellows Number:578-91-3-301 /

Goodyear Bellows Number:578 91 3 301 /

Goodyear Bellows Number:578913301

Triangle Part Number:4474

Triangle Bellows Number:6374

Holland (Neway) Number:905-57-226

GUOMAT 1B5330-3/4 Specifications and Technical Data

1. Compressed Height: 2.12
2. Top Cover Plate Diameter: 9.00 inches / 231mm
3. Bottom Piston Number: 3212 or 3183
4. Bottom Cover Plate Diameter: 9.00 inches / 231mm
5. Screw Center Distance : 157.5 mm
6. Distance Gas Hole Between Nut 73 mm
7. Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
8. Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
9. Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm
10. Rubber Bellows Natural Diameter 300 mm
11. The Working Stroke : MAX 160 mm to MIN 55 mm
12. Compressed Height: 2.12 inches / 105 mm
13. Gas Hole / Air inlet : 3/4 N P.T.F.

Loading Capacity at 20 psig: 1,300 lbsf

Loading Capacity at 60 psig: 3,900 lbsf

Loading Capacity at 90 psig: 5,850 lbsf

Operating Temperature: 57Cº to -54Cº

Inch size of W01-358-7011 air spring:

Maximum diameter @ 100 PSIG (inch)
12.9
Maximum height (inch)
5.5
Maximum stroke (inch)
3.5
Minimum usable height (inches)
2
80PSI force at 1 inch stroke (lbs)
6720
80 PSI force (lbs) at a stroke of 3 inches
3730
Maximum thrust for maximum stroke @ 80PSI (pounds)
2630
Style cross reference extended height (similar end caps) style number
19-.75
material
2-layer standard line

Bead plate type
3
Blind nut center (inch)
6.2
Port offset of blind nut centerline (inch)
2.88

GUOMAT 1B5330-3/4 product description:

The air spring shock absorber can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber to the minimum height, a reset force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber must be used to absorb the force
• Before disassembling the air spring shock absorber, the internal air must be released to prevent accidents and personal injury
• During operation, the rubber air spring shock absorber must not be in contact with other parts

Other similar air spring use the same bellows:

Blind nuts, 1/4 NPT

W01-358-7008

Firestone Part Number:W01-358-7008

Firestone Part Number:WO13587008

Firestone Part Number:WO1-358-7008

Firestone Part Number:W013587008

Firestone Part Number:W01 358 7008

Blind nuts, 1/4 NPT, bumper

W01-358-7009

Firestone Part Number:W01-359-7009

Firestone Part Number:WO13597009

Firestone Part Number:WO1-359-7009

Firestone Part Number:W013597009

Firestone Part Number:W01 359 7009

Blind nuts, 3/4 NPT

W01-358-7011

Blind nuts, 3/4 NPT, bumper

W01-358-7012

Firestone Part Number:W01-359-7011

Firestone Part Number:WO13597011

Firestone Part Number:WO1-359-7011

Firestone Part Number:W013597011

Firestone Part Number:W01 359 7011

Countersunk steel bead rings, 15/8 bolts, nuts, washers

W01-358-7023

Firestone Part Number:W01-359-7023

Firestone Part Number:WO13597023

Firestone Part Number:WO1-359-7023

Firestone Part Number:W013597023

Firestone Part Number:W01 359 7023

Rubber bellows only

W01-358-0134

Firestone Part Number:W01-359-0134

Firestone Part Number:WO13590134

Firestone Part Number:WO1-359-0134

Firestone Part Number:W013590134

Firestone Part Number:W01 359 0134

OEM Original Equipment Manufacturer Cross:

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
