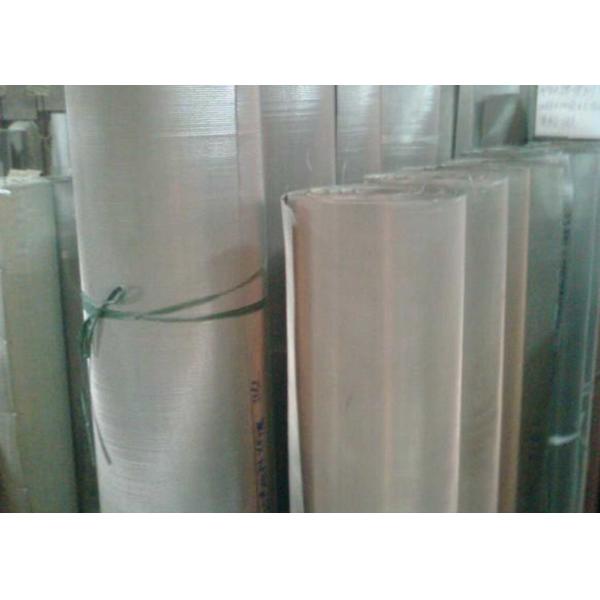

SS904L 128 x 36 Mesh 80Micron Stainless Steel Dutch Wire Mesh

Introduction:

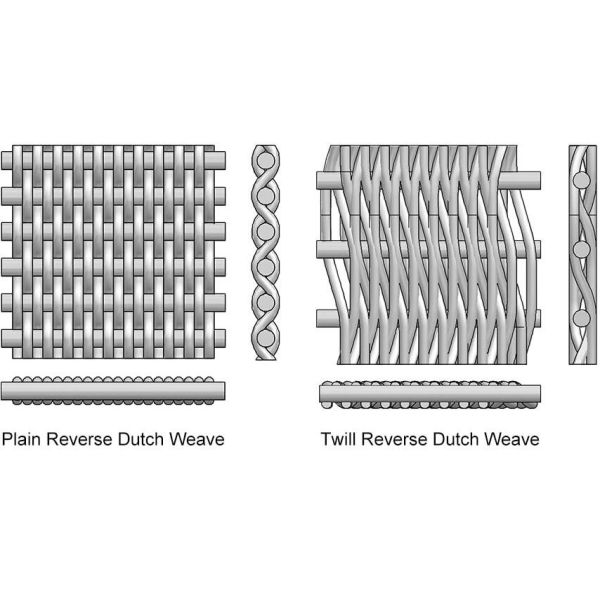

Reverse Dutch weave woven wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this woven wire cloth are filtration and separation of liquid and slurry products. Reverse Twill Dutch weave woven wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth. The weaving process allows for the use of very fine wires, producing filtering mesh for gas and liquid applications. We also provide Herringbone and Broken Pattern Reverse Twill Dutch Weave Products.

Reverse Dutch weave woven wire cloth products are in compliance with ISO 9001:2015 and ASTM standards. We offer a wide range of metals and alloys to provide the best material or combination of materials for the filter mesh. Most are available in DFARS-compliant materials. We also manufacture to ISO, DIN and client requirements. Our expert staff is available to help you select or design the most effective wire cloth product for your application.

Reverse Dutch weave woven wire cloth Specifications:

Othere specifications according to your requests.

Standard specifications:

48 × 10 mesh RDPW 400 nominal micron.
72 × 15 mesh RDTW 250 nominal micron.
132 × 17 mesh RDTW 200 nominal micron.
152 × 30 mesh RDTW 115 nominal micron.
260 × 40 mesh RDTW 75 nominal micron.

Features:

Smooth surface.
High hardness.
Zero aperture.
Chemical resistance.
Acid and alkali resistance.
Rust and corrosion resistance.
High tensile strength than the plain weave woven wire mesh.
Outstanding filtration performance.

Applications:

Reverse dutch woven wire mesh is widely used for filtering in various industries.

Aerospace.
Petroleum.
Chemical industry.
Chemical fiber.
Machinery.
Plastic products.
Conveying.
Other industries.

Packing:

Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
