| Categories | New Concrete Pump Truck |
|---|---|
| Brand Name: | ZOOMLION |
| Model Number: | ZLJ5440THBKE 63X-7RZ |
| Certification: | ISO/CE/SGS/BV |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 5 units per month |
| Delivery Time: | 20 working days |
| Packaging Details: | RORO ship, Cargo bulk ship |
| Chassis Brand: | SITRAK |
| Condition: | Brand New |
| Power(w): | 331KW |
| Emission Standard: | Euro 5 |
| Maximum Vertical Reach: | 62.1m |
| Maximum Horizontal Reach(From center of Slewing Axis): | 56.9m |
| Section Numbers: | 7.0 |
| Minumun Unfolding Height: | 15.8M |
| Boom Type: | RZ |
| Maximum Theorical Output: | 180 CBM/h |
| Maximum Theorical Pressure on Concrete: | 11.3Mpa |
| Concrete Cylinders (diam.*stroke): | 260*2100mm |
| Hydraulic Circuit: | Closed |
| Outrigger Open Dimension(mm): | 12250*12820*11660 |
| Dimension: | 13835*2550*4000mm |
| Weight: | 43870kg |
| Company Info. |
| ZHUZHOU BANGBO HUANYU IMPORT AND EXPORT CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

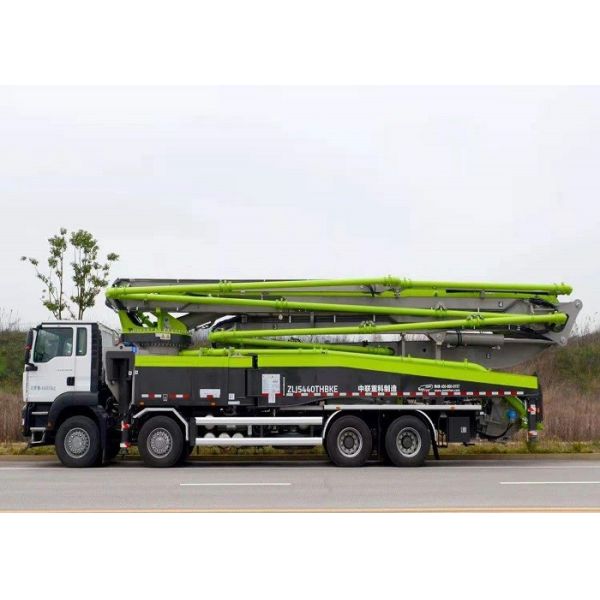

Sitrak 8*4 Euro 5 New ZOOMLION Truck Mounted Concrete Pumps 63X-7RZ
Product highlights:
Unique 7-arm technology in the industry, the effective placing radius is 75% higher than the 6-arm structure;
ZOOMLION pump truck arm frame foot, limit height, 8% larger than
the effective fabric range of the 66-meter pump truck;
The length of the whole machine is 13.8 m, 8% shorter than that of
the same grade; the whole machine is improved by 17%, with smaller
turning radius and better site adaptability;
High precision and efficient high pressure pumping technology,
pumping efficiency is 8% higher than the industry




|
