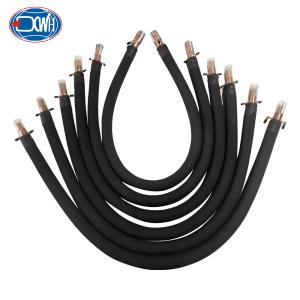

Low Kick Water Cooled Kickless Cables For Resistance Portable Spot Welder

Categories	Kickless Cables
Brand Name:	XWH
Model Number:	XW
Certification:	CE
Place of Origin:	China
MOQ:	5
Price:	USD300-USD350
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month
Delivery Time:	15 working days
Packaging Details:	Wooden Case
Product Name:	Kickless Cable
Usage:	Industrial Usage
Insulation:	Rubber
Conductor Type:	Pure Red Copper
Standard Diameter:	300mm²/400mm²
Standard Length:	2m-3.5m
Feature:	low-kick
After Warranty Service:	Video technical support, Online support and Spare parts
After-sales Service Provided:	Free spare parts, Field installation, commissioning and training
Warranty:	One Year

Contact Now

Add to Cart

Company Info.

Chengdu Xingweihan Welding Equipment Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Low Kick Water Cooled Kickless Cables For Resistance Portable Spot Welder

Low-Kick Water Cooled Kickless Cables For Resistance Portable Spot Welder

Product Introduction:

Kickless cables pass through two cables with opposite and close current directions, and the magnetic field generated by them is mostly cancelled out, resulting in a significant reduction in impedance. The cable adopts water cooling method, greatly increasing the electrification capacitance.

Technical Parameters:

Item Specifiction		300mm²	400mm²	Note
Impedance	2.0M	480±15μΩ	358±15μΩ
Impedance	2.4M	593±15μΩ	445±15μΩ
Dc impedance value	2.0M	475μΩ	355μΩ
Dc impedance value	2.4M	587μΩ	440μΩ
Resistance	2.0M	78μΩ	74μΩ	Calculated Value
Resistance	2.4M	82μΩ	88μΩ	Calculated Value
Power		=0.99	=0.99
Cooling water capacity		7.0L/MIN	7.0L/MIN	Pressure Loss of 0.7KG/cm
Temperature rise characteristic	2.0M	45℃/5900A	45℃/6800A
Temperature rise characteristic	2.4M	45℃/5400A	45℃/6200A
Weight	2.0M	10.4KG	13.2KG	Average Value
Weight	2.4M	12.2KG	15.3KG	Average Value

Main Characteristics:

1. High-purity red copper hinge cables, having higher conductivity and lowering impedance between the transformer output and the welding gun

2. Excellent rubber sleeves and plum blossom rubber cores, having good pressure resistance, heat resistance, wear resistance, and bending performance

3. High resistance to repeating kicks and bending caused by electro-magnetic force induced by welding current and welding operation, and accordingly long life and good economy.

4. Minimal water pressure drop for excellent cooling effect

5. Convenient cable replacement and minimal downtime

Standard Drawing:

Cross Section 300mm²

Cross Section 400mm²

Besides standard models, we can customized according to your requirements. More details, please contact!

Scene Images

Raw Materials: Pure Red Copper

Careful Protection :Additional Rubber Sleeve

Finished Product

Application:

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
