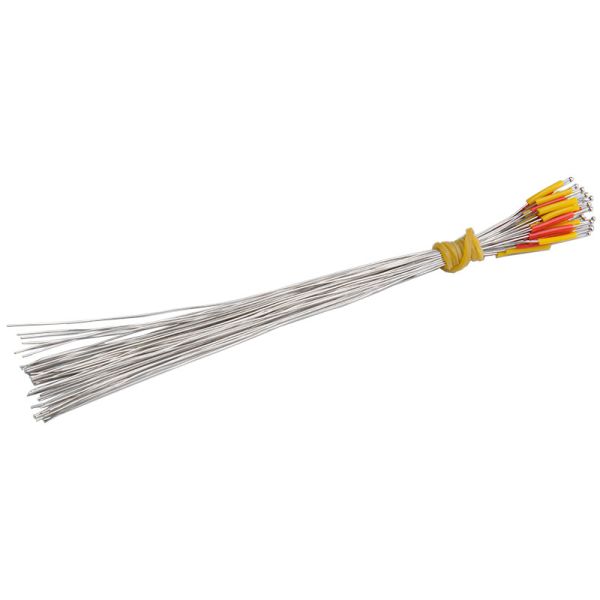

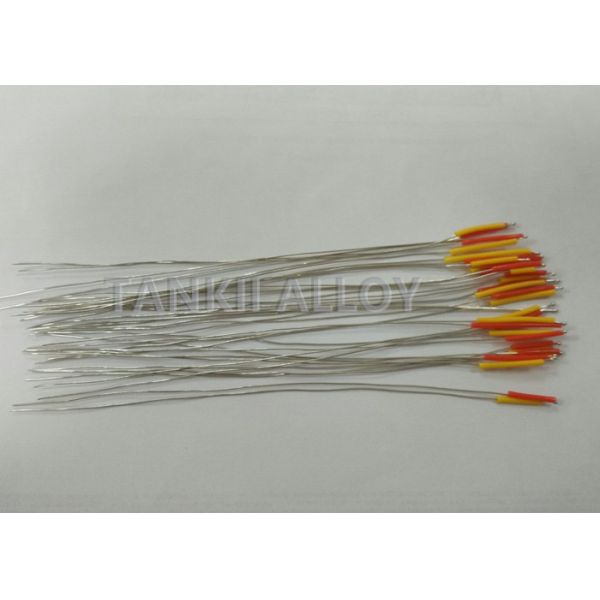

0.5mm Type S Bright Thermocouple Bare Wire For Steel Industry

0.5mm Type S Bright Thermocouple Bare Wire For Steel Industry

0.5mm Type S Bright Thermocouple Bare Wire For Steel Industry
0.5mm Type S Bright Thermocouple Bare Wire For Steel Industry
Categories Thermocouple Bare Wire
Brand Name: Tankii
Model Number: S/R/B
Certification: ISO9001
Place of Origin: China Mainland
MOQ: 1m
Price: Negotiation
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 10Ton per year
Delivery Time: 5-7 days after getting the payment
Packaging Details: Standard exoprt package in carton box or wooden box
Item: 0.5mm Type S /B/R Bright Thermocouple Bare Wire Used For Steel Industry
Application: thermocouple Sensor
MOQ: 1m per size for 0.5mm
Package: In coil or length
Surface: Bright
Diameter: 0.04~5.0mm
Wire Type: Round wire
Leading time: 5~10 days after getting the payment
Contact Now
Company Info.
Shanghai Tankii Alloy Material Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

0.5mm Type S Bright Thermocouple Bare Wire For Steel Industry

0.5mm Type S /B/R Bright Thermocouple Bare Wire Used For Steel Industry

Introduction:

The Accuracy of a thermocouple is measured by the difference between what a thermocouple is reading and the actual temperature of the chamber. This is measured when the kiln is at a steady state (not ramping up or down).

Tankii Type S thermocouple is considered to be the most accurate thermocouple and is therefore used as the standard to measure against. The material used to construct a Type S thermocouple will not degrade in most atmospheres and therefore the thermocouple will not drift with age.

Tankii Type S – Special Order Upgrade

  • Accurate – Type S wire is the most accurate thermocouple wire available.
  • Responsive – The low mass ceramic protection tube insures that this thermocouple remains responsive.
  • Long Life – This thermocouple does not degrade and will virtually last forever if not broken.
  • No Drifting – Since this thermocouple does not degrade it will not drift.
  • Sealed tube – Protects probe from kiln atmosphere.


0.5mm Type S /B/R Bright Thermocouple Bare Wire Used For Steel Industry

Characteristics:
Tankii thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Tankii products conform to the standards of IEC584 -1and IEC-2.

Tankii Thermocouple strips, thermocouple connectors are available.
Tankii thermocouple grade extension wire can be supplied as per your request.
Tankii noble metal thermocouple alloy wire with class 1 and 2 are available.
Application Range of S type thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Dental
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
11. Laboratory

0.5mm Type S /B/R Bright Thermocouple Bare Wire Used For Steel Industry

Tankii noble metal Thermocouple Type and Temperature Range

Thermocouple type and index

Measurement Range

℃

Type

Index


PtRh30-PtRh6

B600~1700


PtRh13-Pt

R0~1600


PtRh10-Pt

S0~1600


NiCr-NiSi

K-200~1300


NiCr-CuNi (constantan)

E-200~900


Fe-CuNi (constantan)

J-40~750


Cu-CuNi (constantan)

T-200~350


NiCrSi-NiSi

N-200~1300

The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range
℃

Allowable Tolerance /℃
Type BⅡ600~1700±0.25% t
Ⅲ600~800±4
800~1700±0.5%t
Type R(S)Ⅰ0~1100±1
1100~1600±[1+(t－1100) ×0.3％]
Ⅱ0~600±1.5
600~1600±0.25% t
Type K and Type NⅠ-40~1100±1.5℃ or ±0.4%t
Ⅱ-40~1300±2.5℃ or ±0.75%t
Ⅲ-200~40±2.5℃ or ±1.5%t
Type EⅠ-40~1100±1.5℃ or ±0.4%t
Ⅱ-40~1300±2.5℃ or ±0.75%t
Ⅲ-200~40±2.5℃ or ±1.5%t
Type JⅠ-40~750±1.5℃ or ±0.4%t
Ⅱ-40~750±2.5℃ or ±0.75%t
Type TⅠ-40~350±0.5℃ or ±0.4%t
Ⅱ-40~350±1.0℃ or ±0.75%t
Ⅲ-200~40±1.0℃ or ±1.5%t


Shanghai tankii, specializing in producing thermocouple wire, thermocouple cable, thermocouple MI cable.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.

0.5mm Type S /B/R Bright Thermocouple Bare Wire Used For Steel Industry


Delivery and Packing of thermocouple wire:
1. Packaging Details : Carton box.
2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
3. Delivery: By express, air, sea as per thermocouple wire qty
High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry
Welcome to call me or email to me for more information on S /B/R type thermocouple wire, Thermocouple cable, thermocouple flat wire, thermocouple strip.
