ZTE ZXDU68 W301 (V5.0) ZXDU68 W201 (V5.0) Outdoor DC power system

Categories Huawei Power Supply
Place of Origin: China
Brand Name: Huawei
Model Number: ZTE ZXDU68
Output Power: >500W
Output Type: Single
Output Frequency: 45-65
Output Current: -48
Input Voltage: 220V
Size: 2000*600*600MM
Packaging Details: Export carton package
Port: Shenzhen
Supply Ability: 200 Piece/Pieces per Week
Price: Negotiable
Certification: CE FCC RoHS
MOQ: Negotiable
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ZTE ZXDU68 W301 (V5.0) ZXDU68 W201 (V5.0) Outdoor DC power system

ZTE ZXDU68 W201 W301 V5.0 Series Outdoor Powers

System ZTE ZXDU68 W201 Telecom Power Supply

Contact Us


  • Overview

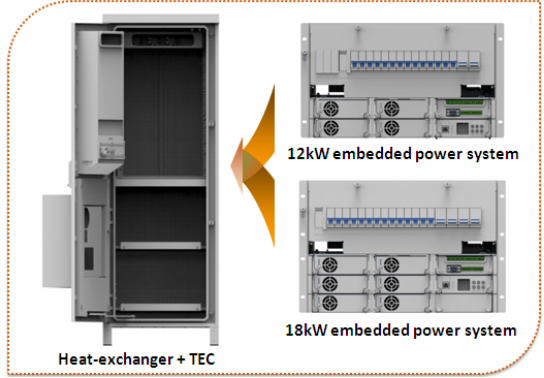

    ZXDU68 W201 (V5.0) and ZXDU68 W301 (V5.0) are outdoor DC power systems, which can provide -53.5V DC power for communications equipment. ZXDU68 W201 (V5.0) is equipped with Four ZXD3000 rectifiers and can provide 12kW output. ZXDU68 W301 (V5.0) is equipped with Six ZXD3000 rectifiers and can provide 18kW output. The cabinet is composed of two parts. The upper part is the power compartment. The lower part is the battery compartment. Multiple temperature control systems can be flexibly configured separately.

    Highlights

    Wide range of input phase voltage (85 V to 295 V) to prolong battery life
    Compact construction design, integrating the power distribution, rectifiers, CSU and battery in one single cabinet
    Energy saving, 96.3% high efficiency rectifier with modular hibernating function
    Reliable cabinet design, high security with concealed hinge, inner expansion bolt, three-point anti-theft lock
    Multiple temperature control modes, flexible for application in various environments
    Intelligent CSU, support centralized site monitoring
    Extensive network interfaces, input/output dry contacts, RJ45, RS232, RS485, USB, which can meet the requirements of Telnet, HTTP, FTP and SNMP networking to realize more flexible networking ways
Warranty

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
