| Categories | LED Underwater Spot Light |
|---|---|
| Brand Name: | COMI Landscape Lighting |
| Model Number: | B5BC0106, B5BC0357, B5BC0318,B5BC0320 |
| Certification: | CE, ROHS |
| Place of Origin: | China |
| MOQ: | No MOQ |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100,000pcs per month |
| Delivery Time: | 3-20days |
| Packaging Details: | 20PCS/CARTON |
| Product Name: | Underwater LED Pool lights |
| Item type: | Mini Led Underwater Spot light,COB LED spotlight |
| Light source: | 3pcs 3W or 4W LED, or 1piece 6W COB LED |
| Input voltage(v): | DC12V/24v |
| Lamp body material: | Stainless Steel 316 |
| Cri (ra>): | 80 |
| Beam angle: | 10° / 30° / 45° / 60° / 90° |
| Color temperature(cct): | Warm White,Pure White,Cool White,RGB,Multicolor |
| Working lifetime(hour): | 50000 |
| Working temperature(℃): | -20-+40 |
| Lamp luminous efficiency(lm/w): | 65-75LM/W |
| Warranty(years): | 2 |
| Application: | Swimming Pool,Fountain / Pond / Landscape/ Garden,outdoor,park fountain or hotel fountain |
| Company Info. |
| COMI LIGHTING LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Underwater Pond Spotlights 3x3W Or 3x4W Single Color RGB RGBW Made Of 316 Stainless Steel
IP68 underwater spotlight made of SUS 316 stainless steel is suitable as underwater flood lights or underwater spotlight for fountains, pools, ponds, water gardens, waterfall and etc. for atmospheric or underwater lighting.
Features and Benefits:
▪ Light source: 3pcsx2W/3W/4W, 1piece 6W COB LED
▪ Single color, RGB, RGBW available.
▪ Input voltage: 24VDC (12VDC available).
▪ Underwater ground and wall surface mount by bracket.
▪ Projection angle adjustable.
▪ Completely stainless steel SUS 316 housing & accessory
▪ Optional ON/OFF, DALI, 1-10 V, PWM Dimmable or DMX 512
controllable.
▪ IP68 waterproof,underwater installation in depth less than
1meter.
▪ Use the silicone with good stickiness and thermal effect for
reach the purpose of radiating and prevent moisture.
▪ SUS 316 stainless steel bracket included.
▪ 2 Years warranty.
Materials Specifications of IP68 submersible pond lights
| Housing & Front cover | Molding shaped sus 316 stainless steel housing |
| Bracket | SUS 316 stainless steel |
| Window glass | Step tempered glass. T=5mm |
| Lens | Separate optical lens efficiency≥85% |
| Cable gland | IP-68 PG-11 copper with nickel -coated |
| Seal | Molding shaped silicon seal under the front cover Silicon glue among LED, lens and PCB |
| PCB | Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
| Driver | Constant current output ▪ Single color LED=2-circuit output ▪ RGB 3in1 LED=3-circuit output |
| Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
| Electrical connection | ▪ 1x cable 3meters H05RN-F 2x1.0mm² to open wires (for Single
color) ▪ 1x cable 3meters H05RN-F 4x0.75mm² to open wires (for RGB) |
| Tripod | SUS 316 stainless steel(Included) |
| Dimmable or DMX512 | ▪ Standard non-dimmable. ▪ Optional DALI, 1-10 V, PWM Dimmable or DMX512 controllable support. |
Technical Parameters of IP68 waterproof led lights for fountains:
| Item No. | Control Mode | Color | Light Source | Beam Angle (Θ1/2)(°) | Input Voltage | Rated Power | Luminous Flux (lm)±10% | IK Rate |
| B5BC0106 | ON/OFF | Single Color 2700-10000K | 1×6W | 15°,25°,36° | 24VDC | 6W | 432 | IK10 |
| B5BC0657 | ON/OFF | Single Color 2700-6500K | 3pcs×3W | 5°, 15°,25° | 24VDC | 6W | 420 | IK10 |
| B5BC0618 | PWM | RGB | 3×3W RGB 3-in-1 Full Color LED | 25°, 40°,60° | 24VDC | 9W | 171 | IK10 |
| B5BC0620 | PWM | RGBW | 3×4W | 25°, 40°,60° | 24VDC | 12W | 345 | IK10 |
Notes:
1. Optional PWM, 0-10V, DALI, DMX512 control;
2. Specifications of IP68 24V or 12V LED waterproof lights are
subjected to change without notice.

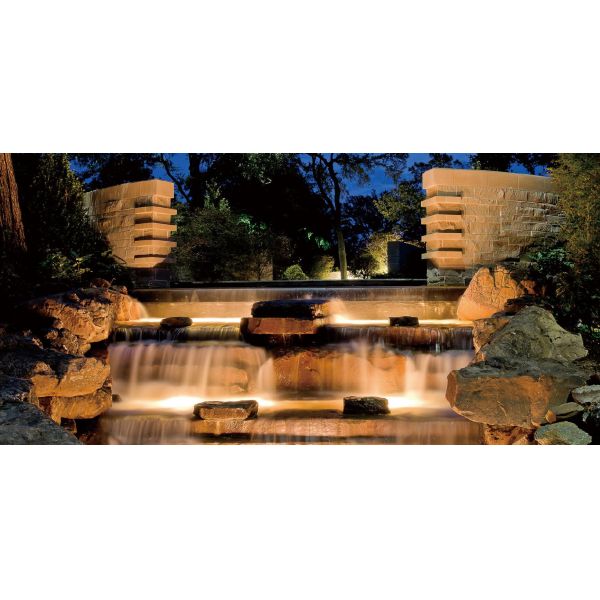

Applications of submersible led lights for fountains:
IP68 waterfall lights underwater are suitable for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
|
