| Categories | Needle Roller Bearing |
|---|---|
| Brand Name: | SFT |
| Model Number: | FH-506038 |
| Place of Origin: | China |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS/MONTH |
| Delivery Time: | 20-45DAYS |
| Packaging Details: | carton,pallet |
| Lubrication: | Grease Lubrication |
| Bore Size: | 50 - 50.01 mm |
| type: | Needle |
| Feature: | High Speed Low Noise |
| Precision Rating: | P0,P4,P6 |
| Seals Type: | open |

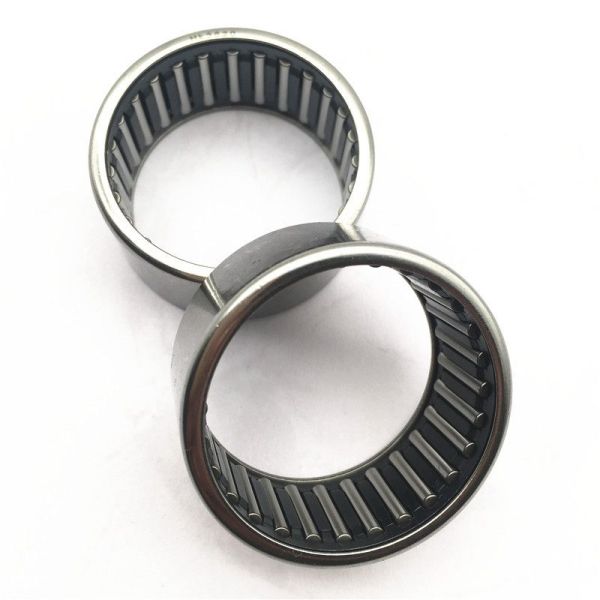

Full complement bearing 50X60X38mm needle roller bearing 943/50 FH-506038
Compared with other types of rolling bearings, needle roller bearings have a small cross-sectional height and significant load-bearing capacity and rigidity relative to their volume. Also, because the inertial forces acting on them is limited, they are an ideal choice for applications
with oscillating motion. Needle roller bearings also work well in compact and lightweight machine designs and they serve as a ready replacement for sliding bearings.
SPECIAL NOTES
• HFL series has two integral radial bearings arranged on both
sides of needle roller clutch. They can therefore support radial
forces in particularly space-saving bearing arrangements.
• Plastic springs (HFL...KF) are available for some sizes.
• Partially knurled outer ring (HFL...R) is available upon request.
• A special tool is suggested when assembling the clutch and
bearing assembly. For details please contact our engineers.
• Only after the clutch and bearing assembly has been pressed into
the hole of the housing, the drawn thin-walled outer ring could
then obtain its final dimension and geometric accuracy.
• The transmissible torque and the stresses which can be taken by
the housing are subject to the material and the wall thickness of
the housing, and such data is needed upon enquiry.
• The clutch and bearing assembly can be normally used in
temperature range from -30°C to 120°C. For the working environment
above 70°C, oil lubrication is recommended.
Needle roller bearing 943/50 Parameter:
| Bearing No. | Boundary Dimensions (mm) | ||||
| Fw | D | C | |||
| FH-1818 | 50942/18 | 18 | 26 | 18 | |
| FH-1820 | 60942/18 | 18 | 26 | 20 | |
| FH-1824 | 70942/18 | 18 | 26 | 24 | |
| F-2010 | 20941/20 | 20 | 26 | 10 | |
| F-2012 | 30941/20 | 20 | 26 | 12 | |
| 941/20 | F-2014 | 40941/20 | 20 | 26 | 14 |
| 940/20 | F-2016 | 50941/20 | 20 | 26 | 16 |
| F-2018 | 60941/20 | 20 | 26 | 18 | |
| 942/20 | F-2020 | 70941/20 | 20 | 26 | 20 |
| 943/20 | 20 | 26 | 25 | ||
| **F/20X26X26 | **F-2026 | 20 | 26 | 26 | |
| FH-2012 | 20942/20 | 20 | 28 | 12 | |
| FH-2014 | 30942/20 | 20 | 28 | 14 | |
| FH-2016 | 40942/20 | 20 | 28 | 18 | |
| FH-2018 | 50942/20 | 20 | 28 | 18 | |
| FH-2020 | 60942/20 | 20 | 28 | 20 | |
| FH-2024 | 70942/20 | 20 | 28 | 24 | |
| F-2210 | 20941/22 | 22 | 28 | 10 | |
| 949/22 **94904 | F-2212 | 30941/22 | 22 | 28 | 12 |
| 941/22 | F-2214 | 40941/22 | 22 | 28 | 14 |
| 942/22K | F-2216 | 50941/22 | 22 | 28 | 16 |
| F-2218 | 60941/22 | 22 | 28 | 18 | |
| F-2220 | 70941/22 | 22 | 28 | 20 | |
| 942/22 **947/22K1 | **F/22X29X20 | 22 | 29 | 20 | |
| 943/22 **948/22K1 | **F/22X29X25 | 22 | 29 | 25 | |
| FH-2212 | 20942/22 | 22 | 30 | 12 | |
| FH-2214 | 30942/22 | 22 | 30 | 14 | |
| FH-2216 | 40942/22 | 22 | 30 | 16 | |
| FH-2218 | 50942/22 | 22 | 30 | 18 | |
| FH-2220 | 60942/22 | 22 | 30 | 20 | |
| FH-2224 | 70942/22 | 22 | 30 | 24 | |
Application:
Needle Roller Bearing can be used for Cooler, curing machine, machinery, welding machine, mold temperature machine, and so on
|
