Ex Proof Brass Solenoid Valve 2 Way Normally Closed 2'' 24VDC 220VAC

Ex Proof Brass Solenoid Valve 2 Way Normally Closed 2'' 24VDC 220VAC

Ex Proof Brass Solenoid Valve 2 Way Normally Closed 2'' 24VDC 220VAC
Ex Proof Brass Solenoid Valve 2 Way Normally Closed 2'' 24VDC 220VAC
Categories Brass Solenoid Valve
Brand Name: Brando
Model Number: 0927-Z
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: negotiation
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Delivery Time: 4-8 days
Packaging Details: Inner Box, Carton, Pallet
Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
Orifice Size: 8mm, 10mm, 12mm, 20mm, 25mm, 32mm, 40mm, 50mm
Function: 2 Way Normally Closed
Action: Diaphragm Pilot Operated
Body Material: Brass
Seal Material: NBR, FKM, EPDM
Working Pressure Range: 0.07 to 1.6 MPa, 0.1 to 1.6 Mpa
Coil Voltages: 12VDC, 24VDC, 110VAC, 220VAC
Coil Protection Class: Explosion Proof
Contact Now
Company Info.
Ningbo Brando Hardware Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Ex Proof Brass Solenoid Valve 2 Way Normally Closed 2'' 24VDC 220VAC

Ex Proof Brass Solenoid Valve 2 Way Normally Closed 2'' 24VDC 220VAC

Product Features of 0927 & 0955 Series Brass Solenoid Valve:

1. Working Medium: Air, Water, Oil, etc
2. Working Pressure Range: 0 to 7 bar
3. Seal Material: NBR, EPDM, FKM
4. Body Material: Brass
5. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
6. Orifice Size: 8mm, 10mm, 12mm, 20mm, 25mm, 32mm, 40mm, 50mm
7. Operation: Diaphragm Pilot Operated
8. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of 0927 & 0955 Series Brass Solenoid Valve:

Model
0927000
0927100
0927200
0927300
0927400
0927500
0927600
0927700
0955105
0955205
0955305
0955405
0955505
0955605
0955705
0955805
Orifice Size
(mm)
8
10
12
20
25
32
40
50
Port Size
(Inch)
1/4''
3/8''
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Effective Area (mm²)
20
40
60
110
190
300
400
500
Function
2 Way, Normally Closed: (0927 series), Normally Open: (0955 series)
Action
Diaphragm Pilot Operated
Working Pressure
0.07 to 1.6 MPa
0.1 to 1.6 Mpa
Working Temp
NBR: -5 to +80℃; FKM, EPDM: -5 to +150℃
Voltages
12VDC, 24VDC, 110VAC, 220VAC

Main Dimension of 0927 & 0955 Series Brass Solenoid Valve:

Model
Orifice Size
(mm)
Port Size
(Inch)
a
b
c
e
h
0927000
8
1/4''
45
31.5
22
53
97
0955105
114
0927100
10
3/8''
97
0955205
114
0927200
12
1/2''
97
0955305
114
0927300
20
3/4''
65
44
30
86
113
0955405
130
0927400
25
1''
113
0955505
130
0927500
32
1 1/4''
95
47
31
131
136
0955605
153
0927600
40
1 1/2''
136
0955705
153
0927700
50
2''
112
55
39.5
163
155
0955805
172

Brando Solenoid Valve Factory Production Video:

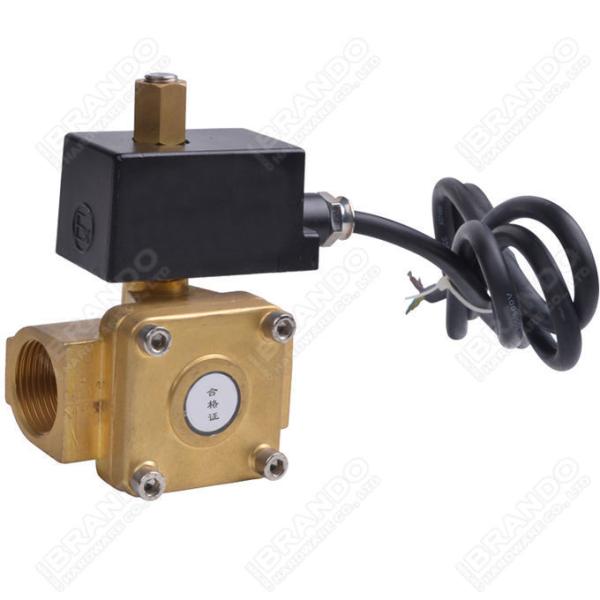

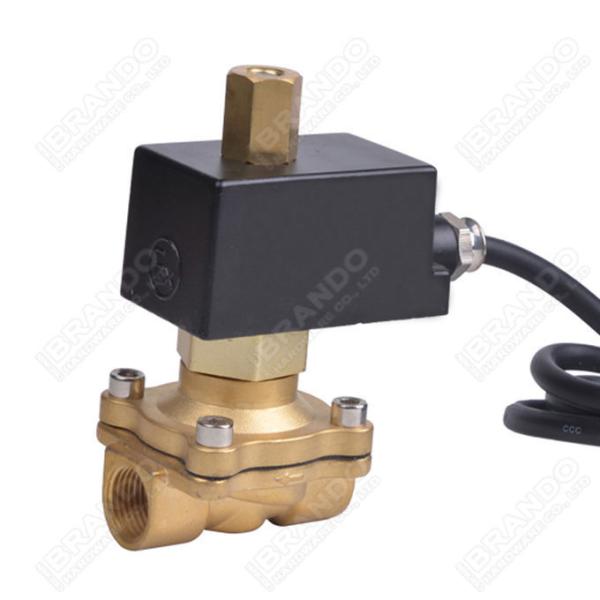

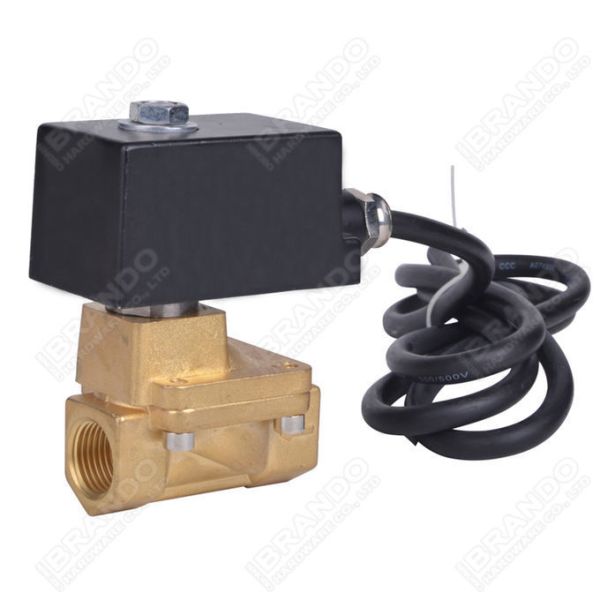

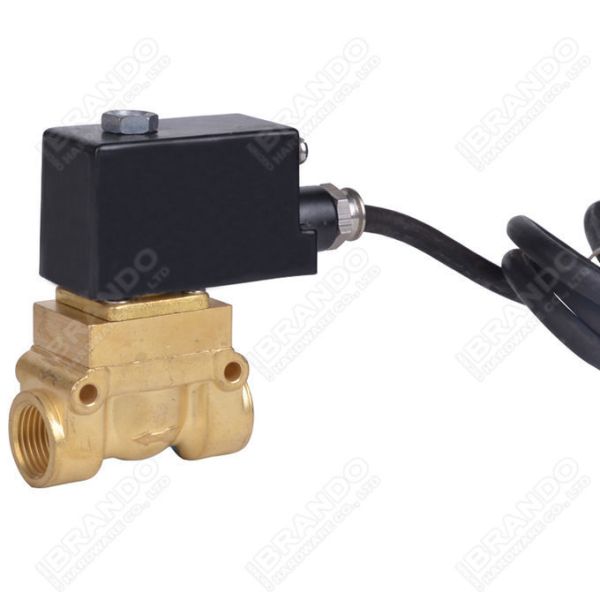

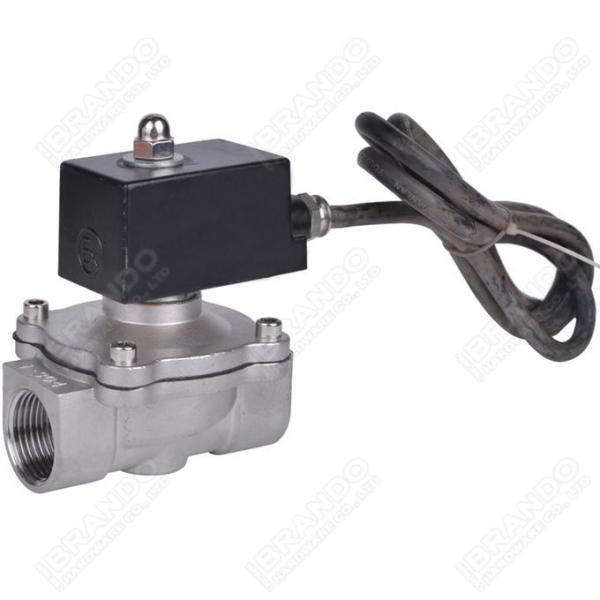

More Explosion Proof Solenoid Valves for you to choose:

1'' Ex Proof Water Brass Solenoid Valve 2 Way Normally Closed 24V 220V 2 1'' Ex Proof Water Brass Solenoid Valve 2 Way Normally Closed 24V 220V 3 1'' Ex Proof Water Brass Solenoid Valve 2 Way Normally Closed 24V 220V 4 1'' Ex Proof Water Brass Solenoid Valve 2 Way Normally Closed 24V 220V 5
1'' Ex Proof Water Brass Solenoid Valve 2 Way Normally Closed 24V 220V 6 1'' Ex Proof Water Brass Solenoid Valve 2 Way Normally Closed 24V 220V 7 1'' Ex Proof Water Brass Solenoid Valve 2 Way Normally Closed 24V 220V 8 1'' Ex Proof Water Brass Solenoid Valve 2 Way Normally Closed 24V 220V 9


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
