| Categories | Inclined Screw Feeder |
|---|---|
| Brand Name: | TECHANG |
| Model Number: | TCGX |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 20~30 working days |
| Packaging Details: | Wooden case |
| Name: | Concrete Powder Long Distance Helical Tubular Screw Conveyor |
| Diameter: | 108~600 mm |
| Length: | 3~70 m |
| Inclination Angle: | <90 degree |
| Rotation Speed: | 20~190 r/min |
| Speed: | Adjustable |
| Usage: | Material Transimission |
| Feature: | Simple Operation |
| Application: | Concrete Powder |
| Customized: | Acceptable |
Description
Concrete Powder Long Distance Helical Tubular Screw Conveyor is the main unit for mechanical transport operation of industry and agriculture, which uses motor to drive screw rotation and move material to achieve conveying purpose. Concrete Powder Long Distance Helical Tubular Screw Conveyor is suitable for all industries such as building material, chemical industry, power industry, metallurgy, coal industry and grain industry, for horizontal or tilted transportation for powdery, granular and small lump materials, such as coal, dust, residue, cement and grain which their temperature is less than 200℃.
Working principle of Concrete Powder Long Distance Helical Tubular Screw Conveyor is rotating spiral blade for screw conveyor conveying the material goes on, the material is not spinning force with the blades of screw conveyor is its own weight and screw conveyor casing material for material friction screw conveyor on the axis of rotation of the welding of spiral blade, blade surface type according to the conveying material have different entity type belt type surface type, such as type of screw conveyor screw axis of vane surface terminal at the direction of material movement have thrust bearings to the material to spiral axial reaction force, when the captain a long, should add hanging bearing in the middle.

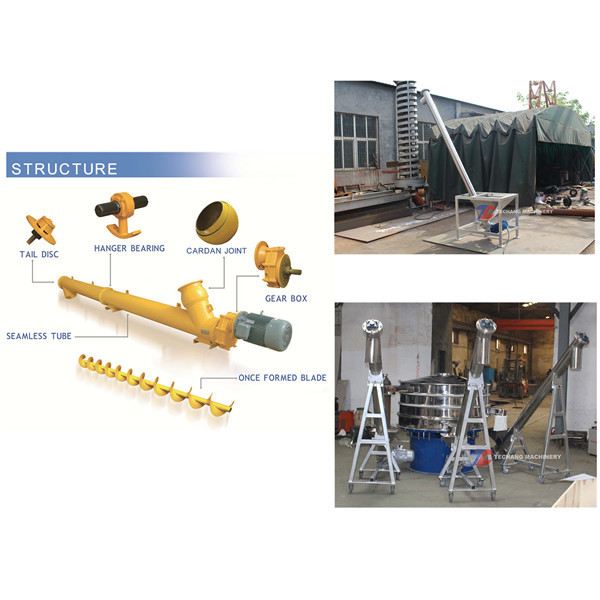

Concrete Powder Long Distance Helical Tubular Screw Conveyor can convey sorts of powder materials. Combined with the package-machine of our company, also can be used separately. Complete machine made in stainless steel or carbon steel, the machine consists of motor, reducer, coupler, inlet, screw blade, bracket, lifting shackle, the end bearing, outlet, and so on.
Technical data
The screw diameter range of Concrete Powder Long Distance Helical Tubular Screw Conveyor is 108 to 600mm. The maximum conveying length can be 70 meters.
| Model | Diameter | Screw Rotation Speed | Inclination Angle | Conveyor Length |
| (mm) | (r/min) | (degree) | (m) | |
| GX160 | 165 | 20,30,35,45,60,75,90,120,150,190,207,290 | <90 | 3~30 |
| GX219 | 219 | |||
| GX273 | 273 | |||
| GX325 | 325 |
Packing and Shipping
Concrete Powder Long Distance Helical Tubular Screw Conveyor is packed by wooden case or according to the customer's requested.
Customer Visiting
If you are interested in Concrete Powder Long Distance Helical Tubular Screw Conveyor, welcome to reach us here and visit our factory.
FAQ
Q: What information do I need to provide for getting an accurate quotation for Concrete Powder Long Distance Helical Tubular Screw Conveyor?
A: 1. Material’s name, bulk density, and water content
2. Capacity you required___t/h
3. Conveying length___meters
4. Is it a horizontal or inclined? What’s the angle if inclination.
5. Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
|
