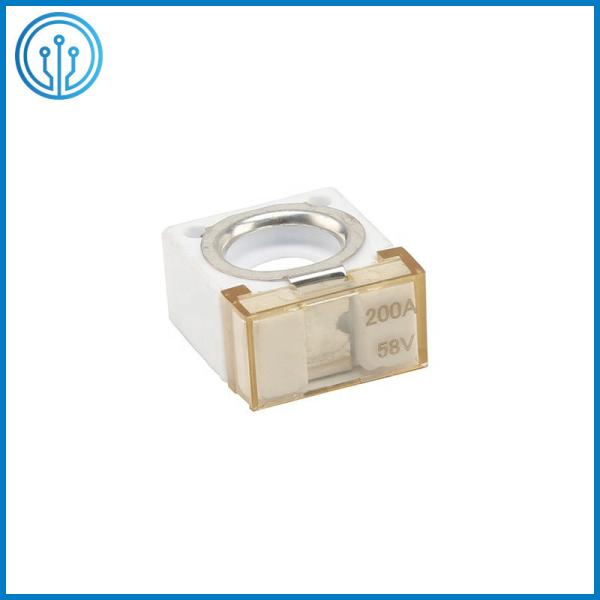

Littelfuse 58VDC Marine Rated Battery Fuses 50A - 300A

Littelfuse CF FUSE RATED 58V Cross Boat Car Marine Rated Battery Fuses MRBF 50A-300A

Description Of The Marine Rated Battery Fuses MRBF 50A-300A

Designed for the most demanding environment to provide high current protection for the tightest space constraints. Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs and accessory circuits.Space-saving ignition protected fuse for 50 to 300 Amp loads. Must use with Terminal Fuse Block.Main Fuse for mounting with battery clamp on the battery pole. Voltage rating 58 VDC, Current rating 50A - 300A. With transparent cover for visual inspection of melting element.

Features Of The Marine Rated Battery Fuses MRBF 50A-300A

* High Interrupt Rating satisfies ABYC requirements for DC main circuit protection on large battery banks
* Clear window—visual indication of blown condition
* Color-coded for easy amperage identification

* High load capacity

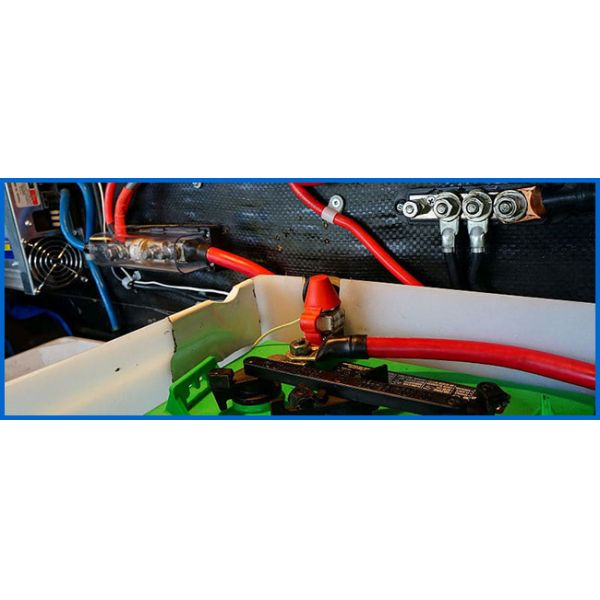

Application Of The Marine Rated Battery Fuses MRBF 50A-300A

This battery fuse and fuse holder are widely used in the circuit protection of new energy vehicles, RVs, cruise ships, cranes, batteries, charging piles and other DC main power sources, inverters, windlasses and bow thrusters.

Main Parameters Of The Marine Rated Battery Fuses MRBF 50A-300A

Ampere Range Of The Marine Rated Battery Fuses MRBF 50A-300A

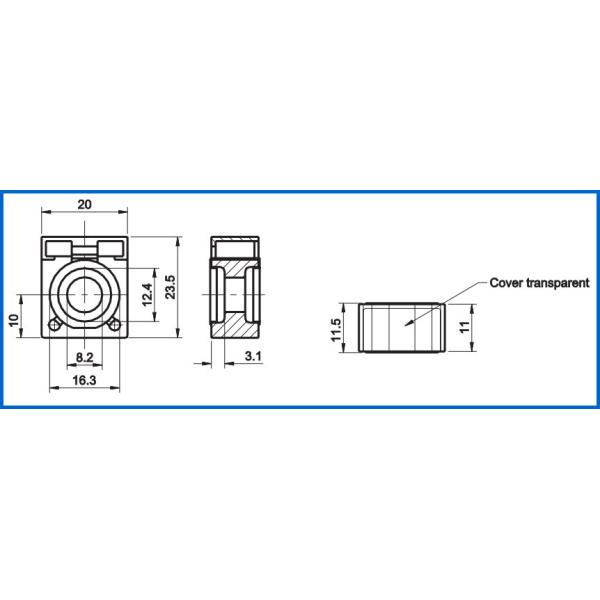

Dimensions in mm Of The Marine Rated Battery Fuses MRBF 50A-300A

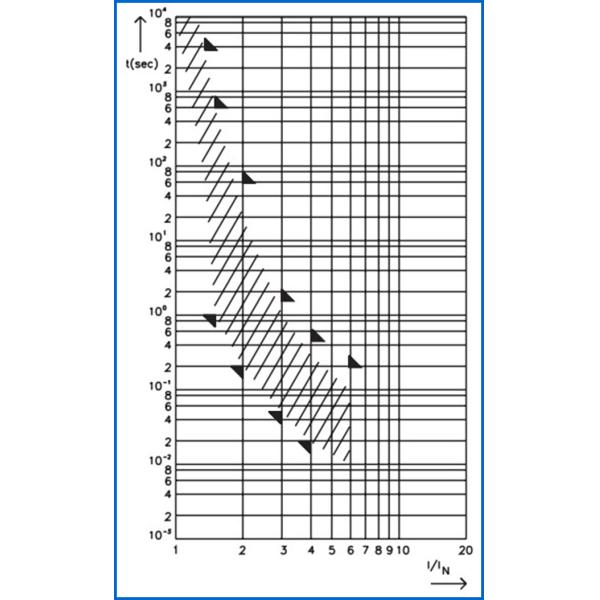

Pre-Arcing Time-Limits Of The Marine Rated Battery Fuses MRBF 50A-300A

FI = 1.25 (max. operating current:0.8 x Irat at 23°C)

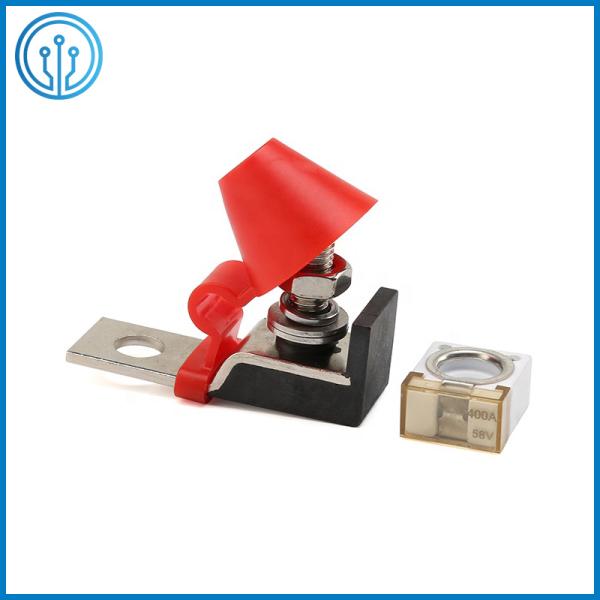

Suitable Fuse Block Of The Marine Rated Battery Fuses MRBF 50A-300A
