| Categories | Aerial Fiber Optic Cable |
|---|---|
| Brand Name: | jiqian |
| Model Number: | GYXTW 2 4 6 8 12 core |
| Certification: | ISO |
| Place of Origin: | CHINA |
| MOQ: | 1000m |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 100km per 2 day |
| Delivery Time: | 2-4day |
| Packaging Details: | wooden drum |
| Fiber type: | G652D |
| Oem: | Available |
| Application: | Aerial/duct |
| Number of conductors: | 2 4 6 8 12 24 |
| Structure: | Loose tube |
| Operating temperature: | -40 ~ +60 C |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

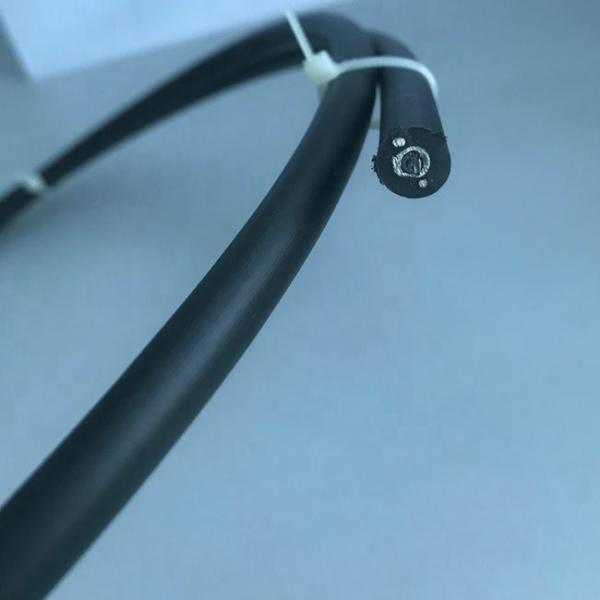

GYXTW single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blockingperformance.
Technical Parameters:
| Part NO:Increased by 2 fiber | Fiber Count | Tubes | Fillers | Cable OD(mm) | Cable Weight(kg/km) | Tensile Strength Long/Shot Term(N) | Crush Resistance Long/Short Term(N) |
| GYXTM-2~12 | 2~12 | 1 | 0 | 7.6 | 87 | 600/1500 | 300/1000 |
| GYXTM-14~24 | 14~24 | 1 | 0 | 8.5 | 120 | 600/1500 | 300/1000 |
| GYXTM-2~12 | 2~12 | 1 | 0 | 8.8 | 116 | 600/1500 | 300/1000 |
| GYXTM-14~24 | 14~24 | 1 | 0 | 9.6 | 134 | 600/1500 | 300/1000 |
Storage/Operating Temperature:-40℃ to +70℃
Bend Radius (Static/Dynamic):10D/20D
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||||
Attenuation (+20°C) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||||
Feature:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of
fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8.Steel wire used as the central strength member
|
