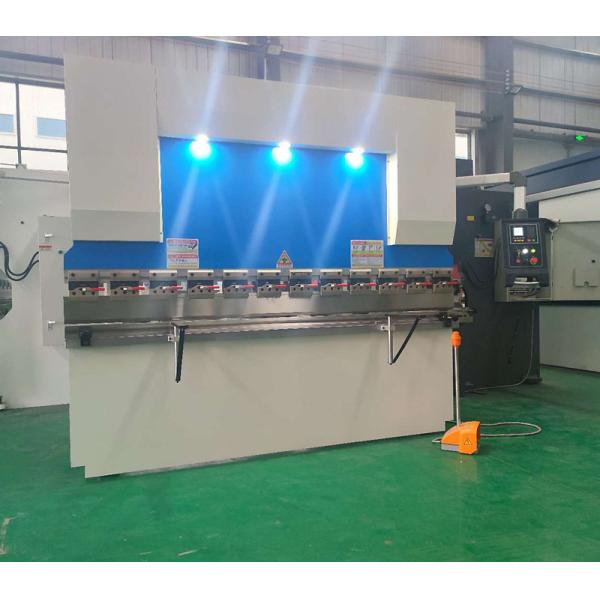

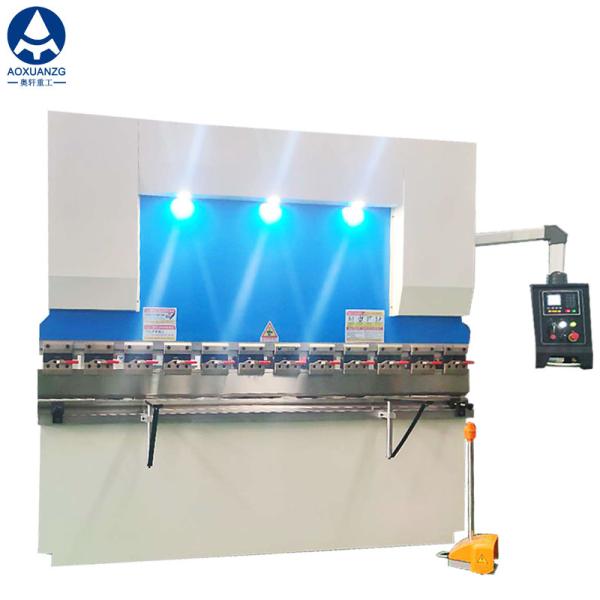

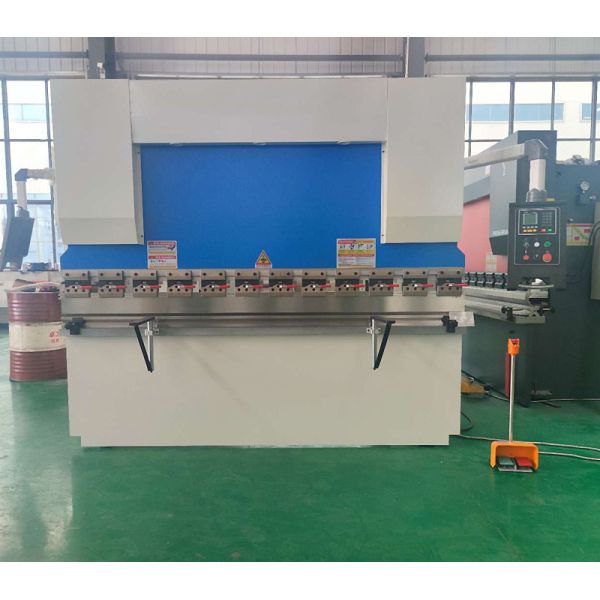

Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

63T/2500MM Blue White Press-Brakes Hydraulic Bending Press with Front Light Send To El Salvador

E21 Controller Press Brake
1. The X-axis and Y-axis are programmed by the NC E21 system to achieve accurate positioning of the inverter.
2. WC67K series press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes.
3. Rear Stopper and upper gliding block are both fitted with coders, for a more accurate display for positions of rear stopper and upper gliding block in coopeartion with digital display system, thus to further increase the operating precision of this machine.

The standard cofiguration:

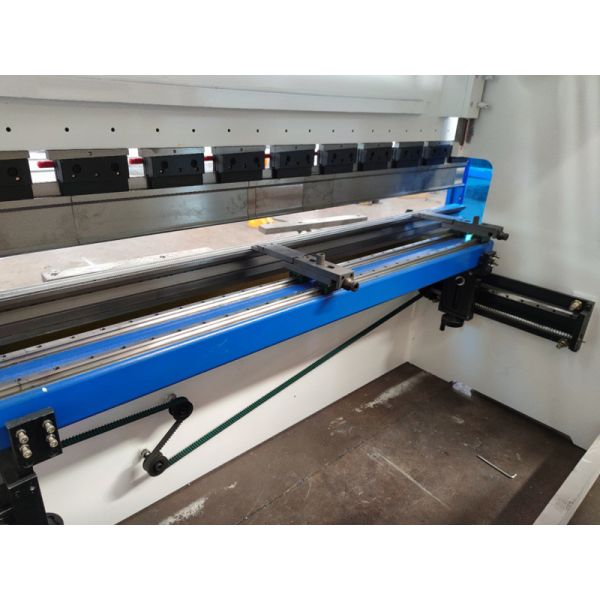

High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Compensation device on workbench (Optional
Quick mold clamping device

Details:

Technical Parameters:

Model	Nominal pressure (KN)	Worktable Length (mm)	Columns Distance (mm)	Throat	Slider	Max	Main	Dimension
				Depth	Stroke	Open	motor	L x W x H
				(mm)	(mm)	height	Power	(mm)
						(mm)	(KW)
WC67Y/K-30/1600	300	1600	1280	200	80	190	3	1700×900×1650
WC67Y/K-30/2000	300	2000	1280	200	80	190	3	1700×900×1650
WC67Y/K-40/2500	400	2500	1900	280	100	320	5.5	2600×1100×1900
WC67Y/K-63/2500	630	2500	1900	350	170	380	5.5	3100×1450×2050
WC67Y/K-80/3200	800	3200	2700	350	170	380	7.5	3500×1550×2100
WC67Y/K-100/3200	1000	3200	2700	400	200	420	7.5	3500×1580×2400
WC67Y/K-160/3200	1600	3200	2700	400	200	420	11	3500×1650×2550
WC67Y/K-200/3200	2000	3200	2700	400	200	420	15	3500×1680×2550
WC67Y/K-250/3200	2500	3200	2700	400	200	420	15	3500×1700×2600
WC67Y/K-320/3200	3200	3200	2700	400	200	420	22	3500×1800×2730
WC67Y/K-400/4000	4000	4000	3500	500	320	600	30	4300×2450×3500
WC67Y/K-500/5000	5000	5000	3900	500	320	600	37	5400×2810×4300
WC67Y/K-500/6000	5000	6000	4900	500	320	600	37	6500×2810×4300
WC67Y/K-500/7000	5000	7000	4900	500	320	600	37	7500×2810×4900
WC67Y/K-600/5000	6000	5000	3900	500	320	600	45	5500×2910×4900
WC67Y/K-600/6000	6000	6000	4900	500	320	600	45	6500×2910×5100
WC67Y/K-600/7000	6000	7000	5900	500	320	600	45	7500×2910×5200
WC67Y/K-800/6000	8000	6000	4900	600	400	600	55	6500×2750 ×5300
WC67Y/K-800/8000	8000	8000	6900	600	400	600	55	8500×2750×5900
WC67Y/K-1000/6000	10000	6000	4900	600	400	600	2×37	6500×2800×5600
WC67Y/K-1000/8000	10000	8000	6900	600	400	600	2×37	8500×2800×6100
WC67Y/K-1000/10000	10000	10000	8000	600	400	600	2×37	10500×2800×5850
WC67Y/K-1200/6000	12000	6000	4900	600	400	800	2×37	6500×3100×5850
WC67Y/K-1200/8000	12000	8000	6900	600	400	800	2×37	8500×3100×7150

Certifications:

Packing and shipping:

For standard export packaging, the whole body of the machine is wrapped with plastic film, and then packed in wooden cases.There two kinds of ways: LCL is for small press brake, FCL is for big press brake.

※ LCL: Covered by plastic films, packed by wooden case.

※ FCL: Covered by plastic films, packed by a container.

☀ Beforepackaged, the machines will be tested strictly to guarantee the stability and high accuracy.

☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.

☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

✈ Shipped in 30 days after payment.

Customer & EXPO:

FAQ

1. Are you the manufacture? Can we visit your factory?
◆ Of course, you can. We are manufacturer and we are located in Anhui,China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

2. What's your main product? What is your main foreign market?
◆ Our main products are press brake, shears machines, press, cutting machine, locking machine , auto duct line and related products.Our main foreign markets are Asia, North America, Europe, and Africa.

3. What are the advantages of your machines? And how can I believe the quality of your product?
◆ The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So The quality of our product is stable and reliable.

4. Are you able to update the production process Information in time after placing our order?
◆ After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
◆ Yes,we are looking for global agent, and we will help agent improve the market ,and supply all the service like machine
technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
◆ T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7. Are you provide product metal parts and provide us technical guidance?
◆ Wearing parts, Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with professional technical guidance.

8. How long is your warranty?
◆ 2 years free warranty, life-long maintenance.

9. Do you accept customer Logo and customized ?
◆ We accept kinds of customized , including logo and machine .

For more information, please contact me (^o^)/~

Product Tags:


*From:	Your email address is incorrect!
*To:	Anhui Aoxuan Heavy Industry Machine Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Torsion Bar Press Brake
Brand Name:	AOXUANZG
Model Number:	WC67K-63T/2500
Certification:	CE
Place of Origin:	China
MOQ:	1 set
Price:	$8185-$9485/unit
Payment Terms:	L/C, T/T, Western Union, D/P, D/A
Supply Ability:	500sets/Year
Delivery Time:	20-30 days
Packaging Details:	Standard export packing
Raw Material:	Sheet / Plate
Material / Metal Processed:	Carbon/Stainless steel/Iron/Aluminum
Controller:	Nanjing Estun E21
Machine Type:	NC Hydrualic press brake
Nominal Pressure:	630KN
Worktable Length:	2500mm
Machine Distance Between Housings:	2050mm
Throat Depth:	250mm
RAM Stroke:	140mm
Machine Max.Open Height:	395mm
Number of Strokes:	≥10 times/min
Machine Main Motor:	7.5kw
Size:	260517252355mm
