| Categories | Pneumatic Drilling Rig |
|---|---|
| Brand Name: | SHITAN |
| Model Number: | ST350 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | A detailed discussion |
| Payment Terms: | L/C, D/P, D/P, T/T, Western Union |
| Supply Ability: | 100000/yes |
| Delivery Time: | 5-8days |
| Packaging Details: | Wooden case or naked |
| Type: | Crawler Mounted Drill Rig |
| Drilling depth: | 350M |
| Application: | drilling well,hammer for drills |
| Air pressure: | 1.25-3.5Mpa |
| After-sales service provided: | Engineers available to service machinery overseas |
| Warranty: | 1 Year |
| Weight: | 9800KG |
| Power: | 92Kw |
| Usage: | Water Well |
| Hole diameter: | 140-305mm |
| Condition: | New |
| Voltage: | 220V/380V |
| Company Info. |
| Jinzhou City Shitan Machinery Equipment CO. LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

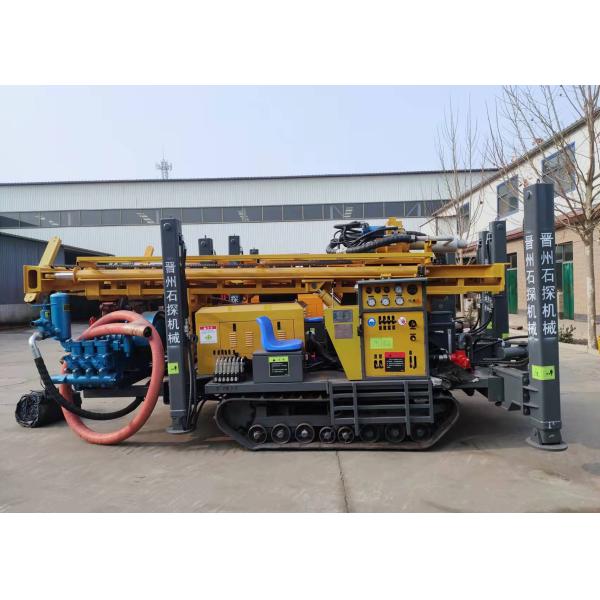

ST350 Drillable 350m Large Steel Crawler Water Gas Water Well Drilling Rig
Introduction of ST350 pneumatic drilling rig
ST350 pneumatic drilling rig adopting newest model & advanced hydro
technology, low consumption, large rotary torque, convenient hole
deflection,our water well drilling machine are mainly used for well
drilling in resource exploration and hydrology wells, civil use
water well, agriculture irrigation etc projects.
Made from high quality materials, with fashion and compact design,
that keeps our drilling rigs more efficiency and with low failure
rate, more economic and durable, and with a high comprehensive cost
performance. Our water drilling rigs have received the real market
validation as the majority of our customers’ positive feedback.
Parameters of 350 water well drilling rig
| Technical Parameters of ST300 water well drilling rig | |
| type | ST350 |
| The weight | 9.8T |
| Dimension | 6m×2m×2.5m |
| The hole diameter | 105-305mm |
| Drilling depth | 350m |
| One-time advance length | 6m |
| Walking speed | 2.5KM/H |
| Climbing angles | 30 |
| Power | 92KW |
| Using air pressure | 1.7-3.3MPA |
| Air consumption | 17-35 |
| Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
| Drill pipe diameter | 89mm,102mm, |
| Rig lifting force | 20T |
| Swing speed | 55-115rpm |
| Swing torque | 6200-85000N.m |








|
