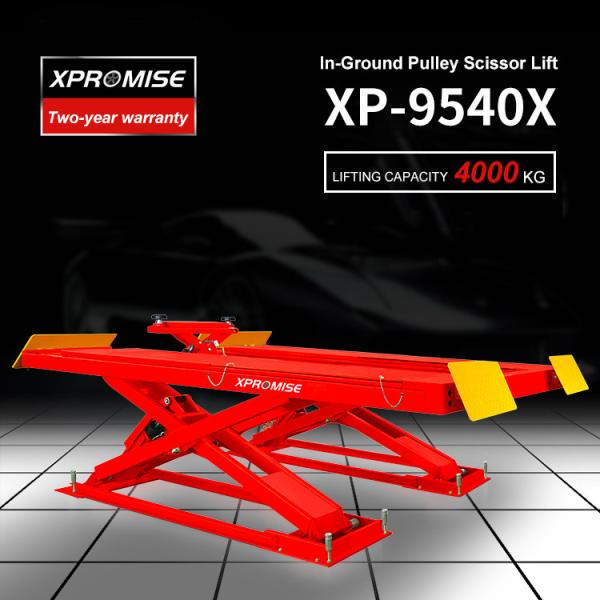

Wheel Alignment Scissor Lift Auto Repair

XP-9540X

In-GroundPulley ScissorLift

TECHNICAL SPECIFICATIONS

Lifting Capacity：4000kg

Lifting Height：(Main)1700(jack)450mm

Min. Height：340mm

Lifting Time：70s-90s

Platform Length：4480mm

Platform Width：600mm

Motor Power：3.0KW-380V or 3.0KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：1900kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Pneumatic safety lock.

2.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

3.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

4.Germanhydraulic valve parts, Italy imported oil sealing and ball valve.

5.Double cup oil-water separator.（Optional）

6.Front and behind door electronic control box.

7.24V safety electronic control.

WARRANTY：Whole machine warranty 2 years.

1.Top Limit Switch（Optional）

2.Lower Limit Switch（Optional）

3.Beam Structure

4.Mobile Handle Operated The Pulley

5.Oil Injection Hole

6.Explosion-proof Valve（Optional）

7.Slave Cylinder Return Oil System

8.Support Arm Can Be Pulled,Jack With Double Screw Heightening Sleeve

9.Emergency Hand Pump（Optional）
