| Categories | Stainless Steel Woven Wire Mesh |
|---|---|
| Brand Name: | H&F |
| Model Number: | SSWM-004 |
| Certification: | ISO-9001 |
| Place of Origin: | Hebei, China |
| MOQ: | 50 Square Meters |
| Price: | USD3.55~USD6.88 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sqm per week |
| Delivery Time: | According to order quantity |
| Packaging Details: | Inside plastic film and outside wooden box |
| Product Name: | 316 Stainless Steel Wire Mesh For Filter |
| Material: | SS316 |
| Wire Diameter: | 0.02-1mm |
| Mesh Count: | 15-500 mesh |
| Roll Width: | 0.5-3m |
| Length: | 30m, etc |
| Woven Type: | Plain weave, twill weave |
| Usage: | Filtering |
| Feature: | acid-resisting |
| Company Info. |
| Honesty & Faith Hardware Products Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

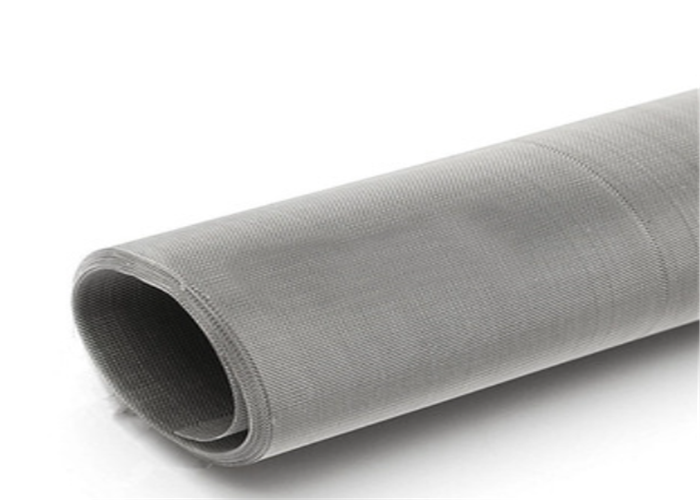

High Filtration Precision 316 Stainless Steel Wire Mesh For Filter
Product Description
Stainless steel wire mesh is made by weaving alternately the stainless steel warp wires and weft wires
to form a square opening or rectangular opening . Due to its own characteristics, the stainless steel mesh is
wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness,
anti static, anti-acid and alkali resistance.
Stainless Steel Woven Wire Mesh (Plain Weave) | ||||||
| mesh/inch | wire diameter(mm) | aperture(mm) | - | mesh/inch | wire diameter(mm) | aperture(mm) |
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.25 | 0.0385 | |
Product Applications
Product Features
1) With excellent performance on acid-resisting, alkali-resisting
and corrosion resisting.
2) With high intensity, abrasion resistant, ductility. High quality
and Long service life.
3) High temperature oxidation resistance. Can filter in high
temperature environment.
4) Cold processing, Diversify the usage of Metal Wire mesh.
5) Do not needsurface treatment, maintenance free.
