St52 Hydraulic Cylinder Piston Rod Hard Chrome Plated

St52 Hydraulic Cylinder Piston Rod Hard Chrome Plated

St52 Hydraulic Cylinder Piston Rod Hard Chrome Plated
St52 Hydraulic Cylinder Piston Rod Hard Chrome Plated
Categories Hydraulic Cylinder Tube
Brand Name: TORICH
Model Number: DIN2391, EN10305, GB/T 1619
Certification: ISO9001 ISO14001
Place of Origin: Zhejiang,CN
MOQ: 2 tons
Price: 1000-1500usd per ton
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 tons per year
Delivery Time: 30-45 days
Packaging Details: wooden box or paper tube
Product name: ST52 Hard Chrome Plated Piston Rod for Hydraulic Cylinder
Keyword: ST52 Piston Rod
Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc.
Application: for hydraulic cylinder
Diameter tolerance: ISO f7/h8/g6
Roundness: Half of the tolerance ISO f7
Contact Now
Company Info.
TORICH INTERNATIONAL LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

St52 Hydraulic Cylinder Piston Rod Hard Chrome Plated

ST52 Hard Chrome Plated Piston Rod for Hydraulic Cylinder

Main Process:

1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish

7. 100% Inspection

8. Craft Boxes and Wooden Case Packaging


Detailed Specification:

Materials: GCr15 SUS440C

Hardness:HRC62 ±2(SUS440C:HRC58)

Accuracy:g6 h6

Roughness: Rmax 0.8

Hard Belt: 0.8-3mm

Outer diameter:3-120mm (GCr15) 3-40m(SUS440C)

Standard length:100-6000mm

Straightness: <50um/1000m


Product
Machinery Use Hydraulic Cylinder Piston Rod Hard Chrome Piston Rod
Material
CK45, ST52, 20MnV6, 42CrMo4, 40Cr etc.
Supply Condition
Chrome Plated
Chrome Thickness
20-30 micron, or customized
Surface Roughness
Ra≤0.2 micron and Rt≤2 micron
Tolerance on Diameter
ISO f7/f8
Ovality
Half of the tolerance
Straightness
φ＜20mm max 0.3:1000mm
φ ≥20mm max 0.2:1000mm
Surface Hardness
min 900HV Induction hardness HRC 52-58
Cohesion
No cracks, breaking or detaching after thermic shock (warming up at 300 celsius degrees and cooling in water.

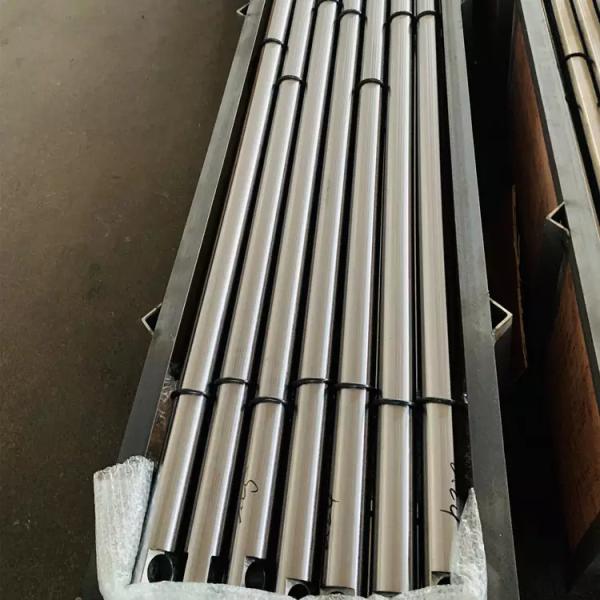

Packing
Anti rust oil to be applied on material and each packed in paper sleeve, wooden box, seaworthy packing.
Certificate
All certificate related with raw material, heat treatment and plating is required.
Applition
Piston rod is mainly used in hydraulic and pneumatic, engineering machinery, automobile manufacturing with piston rod, guide
column of plastic machinery, packaging machinery, printing machinery roller shaft, textile machinery, conveying machinery with the
axis, linear motion with the linear optical axis.

The longest length of shaft is 6000mm. And we can process according to your requirement about the length. If there is some other requirement such as threading, punching, stepped shaft,slotting, slotting for key, side angle and so on, please send detail design drawing to us, we will manufacture it and delivery to you according to your design drawing.

Piston Rod
Hard Chrome Plated Piston Rod






Product Tags:

st52 hard chrome piston rod



hard chrome hydraulic cylinder piston rod



st52 hydraulic cylinder piston rod

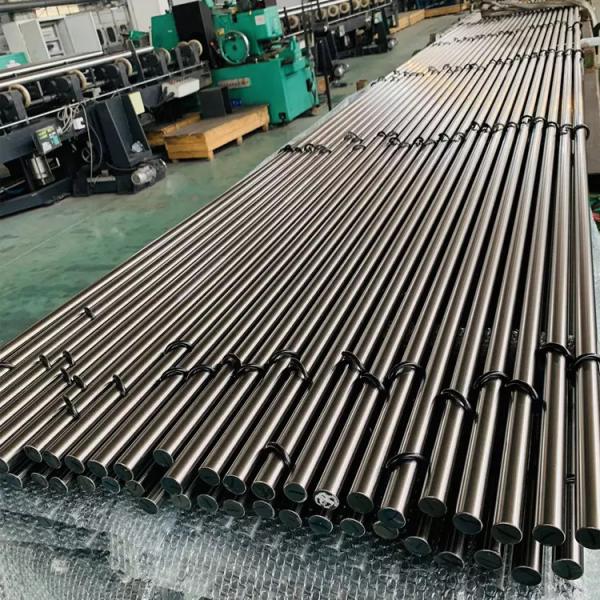

Buy St52 Hydraulic Cylinder Piston Rod Hard Chrome Plated at wholesale prices
