| Categories | Piezoelectric Effect Crystals |
|---|---|
| Brand Name: | Crystro |
| Model Number: | CR220129-04 |
| Certification: | SGS/COC |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | USD 20~200/pc |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 2000pcs per month |
| Delivery Time: | 4-5 weeks |
| Packaging Details: | Transparent clean box |
| Material: | Pyroelectric Lithium Tantalate Single Crystal Material |
| Melting Point: | 1650℃ |
| Density: | 7.45g/cm3 |
| Transparency Range: | 400 – 5000 nm |
| Absorption edge: | 270nm |
| Diameter: | up to 6inch |
| Origin: | China |
| Delivery: | 1-4 weeks |
| Company Info. |
| ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

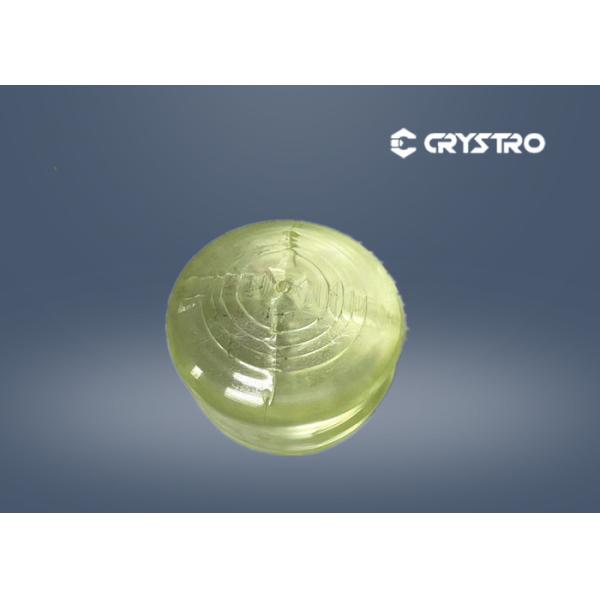

Pyroelectric Lithium Tantalate Single Crystal Material LiTaO3 Crsytal
Application: Lithium tantalate (LT) is used as SAW device which screens electromagnetic waves and only picks up specific frequencies. SAW device is used in mobile communication devices, including auto mobiles and TV and VTR tuners.
Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.
Basic Properties of LiTaO3:
| Crystal Structure | Trigonal, Space group R3c, Point group 3m |
| Cell Parameters | a=5.154Å,c=13.781Å |
| Melting Point | 1650℃ |
| Curie Temperature | 607℃ |
| Mohs Hardness | 5.5 |
| Density | 7.46g/cm3 |
| Dielectric Constants | ε11/ε0:51.7 |
| ε33/ε0:44.5 | |
| Elastic Stiffness Coefficients | CE11:2.33(×1011N/m2) |
| CE33:2.77(×1011N/m2) | |
| Piezoelectric Strain Constants | d22:2.4(×10-11C/N) |
| d33:0.8(×10-11C/N) | |
| Transmission range | 400-4500nm |
| Electro-optical coefficients | r33=30.4pm/V |
| Refractive index at 632.8nm | no=2.176,ne=2.180 |
Typical Specifications:
Note: Other sizes and coatings are available upon request.
| Specifications | Boule | Wafer | ||
| Diameter | Φ3'' | Φ4'' | Φ3'' | Φ4'' |
| Length or Thickness (mm) | ≤100 | ≤50 | 0.35-0.5 | |
| Orientation | 127.86°Y,64°Y,135°Y,X,Y,Z, and other cut | |||
| Ref.Flat Orientation | X,Y | |||
| Ref.Flat Length | 22±2mm | 32±2mm | 22±2mm | 32±2mm |
| Front Side polishing | / | Mirror polished 5-15 Å | ||
| Back Side Lapping | / | 0.3-1.0μm | ||
| Flatness (μm) | / | ≤15 | ||
| Bow (μm) | / | ≤25 | ||
Crystro can offer other size and specification of wafers upon request.
|
