| Categories | Gerotor Hydraulic Motor |
|---|---|
| Brand Name: | HANJIU |
| Model Number: | BMK6-630-J6-A-D |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 100 Pieces |
| Price: | start from 210 usd |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Payple |
| Supply Ability: | 70000 pieces per year |
| Delivery Time: | 10 - 15 work days |
| Packaging Details: | 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP |
| Type: | Gerotor hydraulic motor |
| Manufacturer: | HANJIU |
| Model: | BMK6-630-J6-A-D |
| Displacement: | 630 ml/r |
| Features: | compatible with Eaton 6,000 series |
| Rotation: | Right and Left |
| Company Info. |
| Shijiazhuang Hanjiu Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Eaton Motors, 6000 series replacement, 4 bolt square flange, pilot 160mm , shaft 50mm
This is a Eaton 6000 series aftermarket motor. it's not made by Eaton, it's made by Hanjiu from China, which is our specialty.
Quick review : BMK6-630-J6-A-D

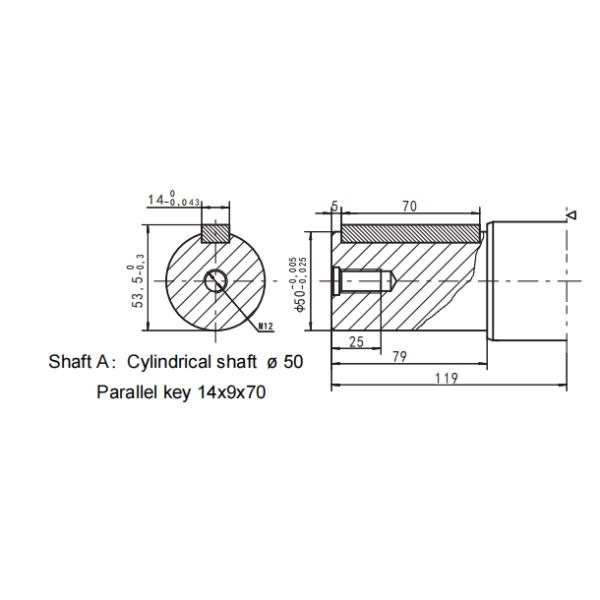

Output Shaft : Cylindrical Shaft Ø50,Parallel key 14×9×70
Port : G 1 Manifold
Rotation Direction : Left and Right
Spec:
| Type | BMK6 | |
| 630 | ||
| Geometric displacement (cm3 /rev.) | 623 | |
| Max. speed (rpm) | cont. | 240 |
| int. | 360 | |
| Max. torque (N•m) | cont. | 1480 |
| int. | 1890 | |
| Max. pressure drop (MPa) | cont. | 17.5 |
| int. | 22.5 | |
| peak | 24 | |
| Max. flow (L/min) | int. | 150 |
| cont. | 225 | |
| Weight kgs | 29.6 | |
If you are looking for a Eaton Chay-lynn similar or identical motor, contact us immediately, send your
request and we will work for you.



|
