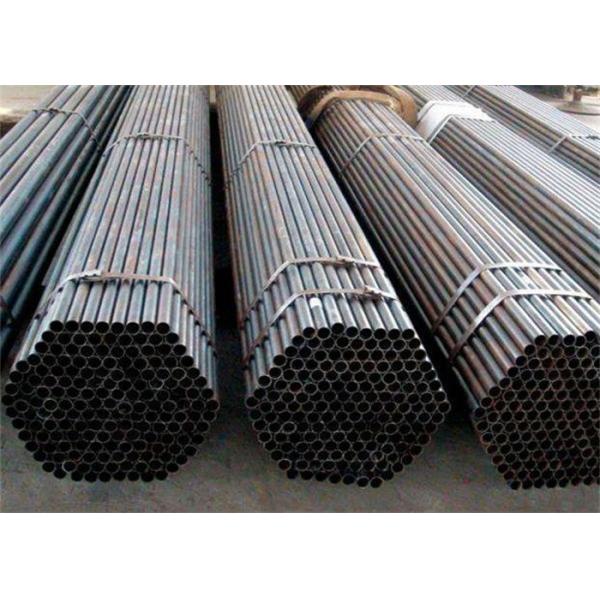

ASME U Seamless Carbon Steel Boiler Tube ST 37.8 Carbon Steel Pipe

ASME U Seamless Carbon Steel Boiler Tube St 37.8 Carbon Steel Pipe

Production Standard: GB/T20409-2006

Internal Thread High pressure boiler Rifled tube is one kind of endophragm processes the spiral line the seamless steel pipe. Main application in on capacity utility boiler's water cooling wall. Usually with the fluorescent tube which uses compares, it can maintain the nuclear ebullition condition under the high fever load operating condition, thus avoids sending the filming condition ebullition, prevents the pipe to burn out, lengthens the pipe service life.

SteelGrade:20G,20MNG,25MNG,12CRMOG,15CRMOG,SA210A1,SA210C,SA213T2/T12,WB36,T91,T11,

P11,P22,P92,P5,P9,R102,CR5MO,16MO3,12CR2MOWVTIB

Threads Number:4ribs/6ribs/8ribs/12ribs

Chemical&Mechanical parameters

Grade	C	Mn	Si	Cr	Mo	S	P
20G	0.17~0.23	0.35~0.65	0.17~0.37	---	---	≤0.020	≤0.025
20MnG	0.17~0.23	0.70~1.00	0.17~0.37	---	---	≤0.020	≤0.025
25MnG	0.22~0.29	0.70~1.00	0.17~0.37	---	---	≤0.020	≤0.025
12CrMoG	0.08~0.15	0.40~0.70	0.17~0.37	0.40~0.70	0.40~0.55	≤0.020	≤0.025
15CrMoG	0.12~0.18	0.40~0.70	0.17~0.37	0.80~1.10	0.40~0.55	≤0.020	≤0.025
SA-210A1	≤0.27	≤0.93	≥0.10	---	---	≤0.035	≤0.035
SA-210C	≤0.35	0.29~1.06	≥0.10	---	---	≤0.035	≤0.035
SA-213T2	0.10~0.20	0.30~0.61	0.10~0.30	0.50~0.81	0.44~0.65	≤0.025	≤0.025
SA-213T12	0.05~0.15	0.30~0.61	≤0.50	0.80~1.25	0.44~0.65	≤0.025	≤0.025

Grade	T(MPa)	Y(MPa)	E(%)	Hardness
20G	410~550	245	≥24	---
20MnG	≥415	≥240	≥22	---
25MnG	≥485	≥275	≥20	---
12CrMoG	410~560	≥205	≥21	---
15CrMoG	440~640	≥235	≥21	---
SA-210C	≥415	≥255	≥30	≤143HBW
SA-210A1	≥485	≥275	≥30	≤179HBW
SA-213T2	≥415	≥205	≥30	≤163HBW
SA-213T12	≥415	≥220	≥30	≤163HBW

Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter			BWG
		25	22	20	18	16	14	12	10
			Wall Thickness mm
		0.508	0.71	0.89	1.24	1.65	2.11	2.77	3.40
mm	inch		Weight kg/m
6.35	1/4	0.081	0.109	0.133	0.174	0.212
9.53	3/8	0.126	0.157	0.193	0.257	0.356	0.429
12.7	1/2		0.214	0.263	0.356	0.457	0.612	0.754
15.88	5/8		0.271	0.334	0.455	0.588	0.796	0.995
19.05	3/4		0.327	0.405	0.553	0.729	0.895	1.236
25.4	1		0.44	0.546	0.75	0.981	1.234	1.574	2.05
31.75	1 1/4		0.554	0.688	0.947	1.244	1.574	2.014	2.641
38.1	1 1/2		0.667	0.832	1.144	1.514	1.904	2.454	3.233
44.5	1 3/4				1.342	1.774	2.244	2.894	3.5
50.8	2				1.549	2.034	2.574	3.334	4.03
63.5	2 1/2				1.949	2.554	3.244	4.214	5.13
76.2	3				2.345	3.084	3.914	5.094	6.19
88.9	3 1/2				2.729	3.609	4.584	5.974	7.27
101.6	4					4.134	5.254	6.854	8.35
114.3	4 1/2					4.654	5.924	7.734	9.43
Form of Tube: Straight & U-bend & Finned & Coiled
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81.
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213, A.SA214

Certification

Product Tags:

ASME Carbon Steel Boiler Tube

ST 37.8 Carbon Steel Boiler Tube

ST 37.8 Carbon Steel Pipe

ASME U Seamless Carbon Steel Boiler Tube ST 37.8 Carbon Steel Pipe

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Boiler Steel Tube
Brand Name:	HDT
Model Number:	Boiler steel tube
Certification:	ASME,EN,ISO
Place of Origin:	JIANGSU, CHINA
MOQ:	5T
Price:	800 - 9000 USD / ton
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	About 10000 ton / month
Delivery Time:	60-75days
Packaging Details:	seaworthy packing for exporting
Product Name:	Carbon Steel Seamless Boiler Tube
Application:	For high, middle, low pressure boiler and pressure purpose
Standard:	DIN17175
Material:	ST35.8
