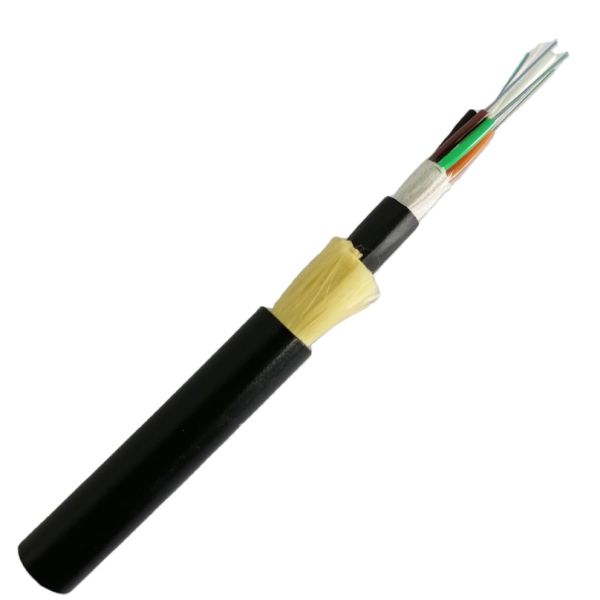

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed

Outdoor Double Sheath 8 12 24 48 96 Core 300m Span ADSS Fiber Optic Cable

Double Layer Aerial ADSS Cable is used for communication cable of overhead high-voltage electricity transmission system,

it also can be used as communication cable at the areas where lighting is frequent or distance is big.

Feature:

--Can be installed without shutting off the power
---Light weight and small diameter reducing the load caused by ice
and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years

Fiber parameter
ItemUnitSpecification
Fiber TypeG.652D
Mode field diameter1310nmmm9.2±0.4
1550nmmm10.4±0.8
Cladding diametermm125.0±1
Cladding non-circularity%£1.0
Core/cladding concentricity errormm£0.5
Coating diametermm245±5
Coating non-Circularity%£6.0
Coating/cladding concentricity errormm£12.0
Cable cut-off wavelengthnm£1260
Attenuation Coefficient1310nmdB/km£0.36
1550nmdB/km£0.22
Proof stress levelkpsi≥100
Note: Other parameters meet standard ITU-T G.652

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by
polyethelene sheet, then sealed by strong wooden battens.

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL
,UPS,TNT.....)

Factory Show

We still have more. Please feel free to contact me. Whatsapp: +86 18122383351

Product Tags:

300m all dielectric self supporting cable

300m self supporting aerial fiber cable

G657d all dielectric self supporting cable

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
Attenuation Coefficient	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100
