| Categories | Zone 1 Explosion Proof Lighting |
|---|---|
| Brand Name: | KHJ |
| Model Number: | Ex-KGF30,Ex-KGF60 |
| Certification: | ATEX,IECEx,CE,RoHS |
| Place of Origin: | Guangdong, China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 400pcs per day |
| Delivery Time: | 3-8 work days |
| Packaging Details: | 335*335*230mm |
| Product Name: | Golden Frog Series |
| Input Voltage: | 24-48 VAC/100-240 VAC,10-30 VDC/24-48 VDC/141-339 VDC |
| Rated Power: | 30W ,60W |
| Luminaire Efficacy: | 136.5lm/W |
| Area Classification: | Group II Zone 1 & 21 and 2 & 22 |
| Insulation Class: | I |
| Surge Protection: | 6KV |
| LED Driver: | Over voltage protection/short circuit protection |

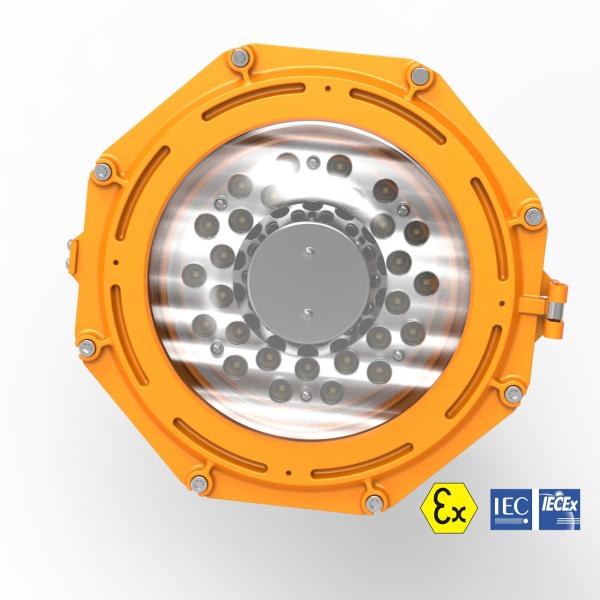

Explosion Proof Zone 1 Lighting,30W&60W,LED bulkhead, Surge Protection, power factor 0.98
Ex- Golden frog Explosion Proof Lighting, Zone 1&2, Zone 21&22, LED bulkhead
Highlight: Explosion Proof Lighting,Zone 1&2,Zone 21&22, LED bulkhead
Features And Benefits:
1. Die casting aluminum alloy enclosure, tempered glass transparent piece, high impact resistance.
2. High efficacy OSRAM/LUMI LED source,high output.
3. Available with a variety of different beam patterns.
4. Environmentally friendly, no mercury.
5. Five years full performance warranty.
Product Important Information:
| Type Of Protection | Ex d, Ex t | |||||
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 | |||||
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 | |||||
| Installation | (IEC)EN 60079-14 | |||||
| Certificate | LCIE 12 ATEX 3070 X | IECEx CQM 12.0033x | ||||
| Equipment Coding | Ex d IIB T5 or T6 Gb Ex t IIIC T95℃ or T80℃ Db IP66 | Ex d IIB T5/T6 Gb Ex t IIIC T95℃/T80℃ Db IP66 | ||||
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +40℃ | -40℃ ≤ Ta ≤ +55℃ | |||
| Gas | Dust | Gas | Dust | |||
| 30W | / | / | T6 | T80℃ | ||
| 60W | T6 | T80℃ | T5 | T95℃ | ||
| ATEx Coding |  II 2 G / II 2 D | |||||
| Ingress Protection | IP66 (IEC)EN 60529 | |||||
| Cable entry | M20*1.5 or M25*1.5 and 3/4 NPT | |||||
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements | |||||
Applications:
Can be widely used for hazardous area Zone 1&2 ,Zone 2&22 and where extremely corrosive, wet, dusty,hot and/or cold conditions exist.
1. Onshore and offshore platforms.
2. Oil refineries.
3. Petrochemical plants.
4. Pharmaceutical pants.
4 .Power plants.
Ordering information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Beam Distribution | Temp. Classification |
| Ex-KGFF30WM-E | 100~240 AC (141~339 DC) | 2992 | 30 | 80 | Warm white | 3000±300 | 180° | T6 |
| Ex-KGFF30NH-E | 3307 | 30 | 70 | Natural white | 4000±300 | 180° | T6 | |
| Ex-KGFF30NH-E | 3307 | 30 | 70 | Natural white | 5000±300 | 180° | T6 | |
| Ex-KGFF30CH-E | 3307 | 30 | 70 | Cool white | 5700±300 | 180° | T6 | |
| Ex-KGFB30WM-E | 3780 | 30 | 70 | Warm white | 3000±300 | 80° | T6 | |
| Ex-KGFB30NH-E | 4095 | 30 | 70 | Natural white | 4000±300 | 80° | T6 | |
| Ex-KGFB30NH-E | 4095 | 30 | 70 | Natural white | 5000±300 | 80° | T6 | |
| Ex-KGFB30CH-E | 4095 | 30 | 70 | Cool white | 5700±300 | 80° | T6 | |
| Ex-KGFS30WM-E | 2992 | 30 | 80 | Warm white | 3000±300 | 15° | T6 | |
| Ex-KGFS30NH-E | 3307 | 30 | 70 | Natural white | 4000±300 | 15° | T6 | |
| Ex-KGFS30NH-E | 3307 | 30 | 70 | Natural white | 5000±300 | 15° | T6 | |
| Ex-KGFS30CH-E | 3307 | 30 | 70 | Cool white | 5700±300 | 15° | T6 | |
| Ex-KGFF60WM-E | 5670 | 60 | 80 | Warm white | 3000±300 | 180° | T6/T5 | |
| Ex-KGFF60NH-E | 6300 | 60 | 70 | Natural white | 4000±300 | 180° | T6/T5 | |
| Ex-KGFF60NH-E | 6300 | 60 | 70 | Natural white | 5000±300 | 180° | T6/T5 | |
| Ex-KGFF60CH-E | 6300 | 60 | 70 | Cool white | 5700±300 | 180° | T6/T5 | |
| Ex-KGFB60WM-E | 7245 | 60 | 70 | Warm white | 3000±300 | 80° | T6/T5 | |
| Ex-KGFB60NH-E | 7560 | 60 | 70 | Natural white | 4000±300 | 80° | T6/T5 | |
| Ex-KGFB60NH-E | 7560 | 60 | 70 | Natural white | 5000±300 | 80° | T6/T5 | |
| Ex-KGFB60CH-E | 7560 | 60 | 70 | Cool white | 5700±300 | 80° | T6/T5 | |
| Ex-KGFS60WM-E | 5670 | 60 | 80 | Warm white | 3000±300 | 15° | T6/T5 | |
| Ex-KGFS60NH-E | 6300 | 60 | 70 | Natural white | 4000±300 | 15° | T6/T5 | |
| Ex-KGFS60NH-E | 6300 | 60 | 70 | Natural white | 5000±300 | 15° | T6/T5 | |
| Ex-KGFS60CH-E | 6300 | 60 | 70 | Cool white | 5700±300 | 15° | T6/T5 |
Remarks:
1. Operating voltage including Default-100~240V AC; A-24-48V AC/DC; B-10-30V DC.
