| Categories | LED Explosion Proof Work Light |
|---|---|
| Brand Name: | KHJ |
| Model Number: | Ex-KSTB24 |
| Certification: | ATEX,IECEx,CE,RoHS |
| Place of Origin: | Guangdong, China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 400pcs per day |
| Delivery Time: | 3-8 work days |
| Packaging Details: | 680*370*285mm |
| Product Name: | Saturn series |
| Operating Voltage: | 100-277 VAC, 141-391VDC |
| Wattage: | 5~60W |
| Luminaire Efficacy: | 126lm/W |
| Area Classification: | Group II Zone 1 & 21 and 2 & 22 |
| Lifespan: | >50,000 hours |
| Battery Rated Capacity: | 12Ah |
| Rated Capacity: | Lead-acid batteries |

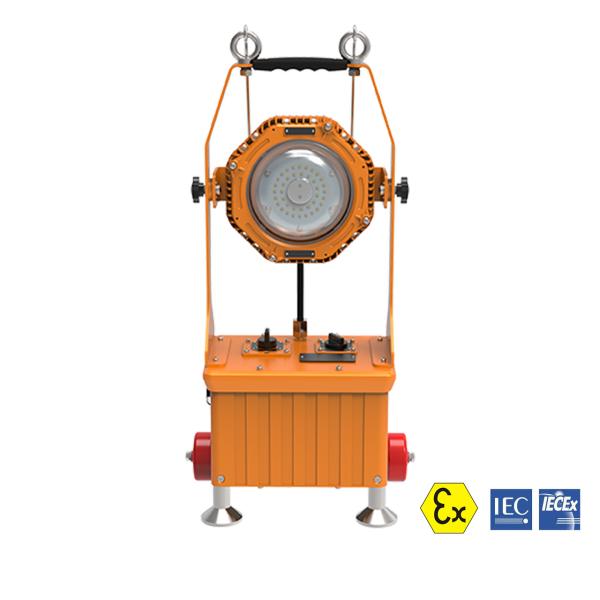

LED Explosion Proof Work Light Ex Saturn portable light Zone 1
Highlight:LED Explosion Proof Work Light, Ex Saturn portable light
Features And Benefits:
1. Dimmable design can adjust the power from 5W to 60W.
2. 5 years warranty for led light, 18 months warranty for the battery.
3. With battery box, back up time 12 h(15W), 8 h(30W), 4 h(60W).
4. Easy Installation and Maintenance.
5. Vibration and shock resistant.
6. High performance and reliable.
Product Important Information:
| Type Of Protection | Ex d e | |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7 | |
| Area Classfiction | Zone1 & Zone 2 Areas to (IEC)EN 60079-10-1, | |
| Installation | (IEC)EN 60079-14 | |
| Certificate | ATEx | ECM 17 ATEX-B TD45 |
| IECEx | IECEx CQM 16.0005X | |
| Equipment Coding | Ex d e IIC T5 Gb IP54 | |
| Temperature Class | -20℃ ≤ Ta ≤ +55℃ | |
| ATEx Coding | ||
| Ingress Protection | IP54 (IEC)EN 60529 | |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. | |
Applications:
Application Power Plants / Heavy Industrials Storage Facility /
Paper mills Wastewater Treatment Plants Loading Docks / Platforms /
Shipyards Chemical Processing Facility Petrochemical Processing
Facility.

Ordering information:
|
|
|
| Power (W) |
|
| Temp. Classification |
| -20℃~+55℃ | |||||||
Ex-KSTB24V12FFWM-U-E | 100~277 AC (141~392 DC) | Warm white | 3000±300 | 15 | 70 | 1740 | T5 |
| 30 | 70 | 3480 | |||||
| 60 | 70 | 6950 | |||||
| Natural white | 4000±300 | 15 | 70 | 1890 | ||
| 30 | 70 | 3780 | |||||
| 60 | 70 | 7560 | |||||
| Natural white | 5000±300 | 15 | 70 | 1890 | ||
| 30 | 70 | 3780 | |||||
| 60 | 70 | 7560 | |||||
| Cool white | 5700±300 | 15 | 70 | 1890 | ||
| 30 | 70 | 3780 | |||||
| 60 | 70 | 7560 |
