| Categories | Air Suspension Springs |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | VKNTECH |
| Certification: | IATF16949/ISO9000 |
| Packaging Details: | CARTON/PALLET |
| Supply Ability: | 2000000pcs/Year |
| MOQ: | 20 Pieces |
| Price: | $1.00 - $50.00/Pieces |
| Model Number: | 1K9466 |
| OE NO.: | W01-358-9466 |
| Warranty: | 12 Months |
| Car Model: | for and Hendrickson truck |
| Type: | by sea / by air / by truck |
| Price condition: | FOB China |
| Sample: | Available |
| Material: | Imported Natrul Rubber |
| Operation: | Gas-filled |
| Brand: | VKNTECH or customized |
| Service offered: | OEM |
| Suspension system: | Air Spring Suspension |
| Type of Goods: | Air Spring/Air bags/Air Ballons |
| Package: | Standard packing or customized |
| Payment term: | T/T&L/C |
| Port: | Guangzhou |
| Company Info. |
| Guangzhou Viking Auto Parts Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

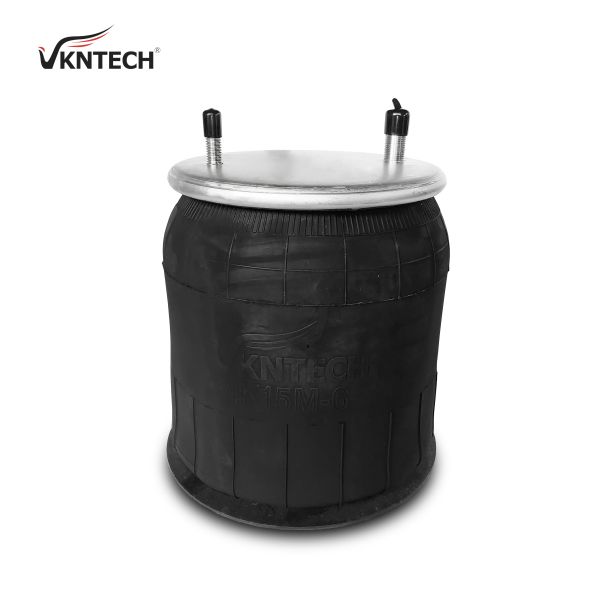

Quality Rubber Air Bag For Suspension Parts / W01-358-9466 Air Suspension For Ford & Marmon Air Spring
OEM Numbers
| Contitech | 9 10-16 P 410 | DAYTON | 3529466 |
| Firestone | W01-358-9466 | HENDRICKSON | 49048 |
| 1T15M-6 | 49674-1&2 | ||
| Goodyear | 1R12-365 | 49207 | |
| 1R12-197 | 364QS28 | ||
| 574QL411M | |||
| TRIANGLE | 8410 |
Drawing

Technical data
| ir Spring Compressed Height | 8.1 in. |
| Air Spring Type | 1T Reversible Sleeve |
| Diameter | 10.12 in. |
| Maximum Height | 20 in. |
| Piston Height | 4.88 in. |
| Bead Plate Top Diameter | 9 in. |
| Top Mount | stud |
| Bottom Stud Configuration | 2 |
| Bottom Mount | stud |
| Top Stud Configuration | 2 |
| Bead Plate Bottom Diameter | 10 in. |
| Application | Hendrickson 49048 (Ford), Hendrickson 49674-1&2 ()(57QL411M), Hendrickson 49207 (Marmon)HA-360/400/460 [up to 1991] |
| Assembled Product Weight (lb) | 14.3 |
| Bellows | 1T15M-6 |
| Design Height (in.) | 10.5-11.5 |
| Loading Capacity at 20 psig | 1,566 lbsf |
| Loading Capacity at 60 psig | 4,698 lbsf |
| Loading Capacity at 90 psig | 7,047 lbsf |
| Maximum Diameter | 12.7 |
| Maximum Rebound Height (in.) | 19.61 |
| Minimum Jounce Height (in.) | 8 |
| Natural Frequency | Hz |
| Operating Temperature (Deg C) | 57 to -54 |
Replaces: Hendrickson 49048 (Ford), Hendrickson 49674-1 & 2 () 57QL411M, Hendrickson 49207 (Marmon), HA-360/400/460 (up to 1991)
Cross References: E1R12173, 1T15MT6, 364SQ28, 566243074, 566243075,
8410, 49048, 49207, 49674, 352103, 1R12365, 1R12566243074,
1R12566243075, 566243074, 566243075, 1R12-365, 49048, 48674,
364SQ28, 57QL411M, 8410, 64276, 9 10-16 P 410, 910-16P410,
91016P410, W01-358-9466, W013589466
A cross reference listing means that this air bag may be a suitable
replacement for the part numbers listed. Please double check the
dimensions and location of mounting holes and stud to be sure the
air bag will work in your application.
|
