B-12514-004/S2063 Natural Rubber Air Spring/1R14-019 Air Suspension Spring Parts For OEM Piston Steel 11 10.5-21 A 318

Categories	Truck Air Spring
Place of Origin:	Guangdong, China
Brand Name:	VKNTECH
Certification:	IATF16949/ISO9000
Packaging Details:	CARTON/PALLET
Supply Ability:	2000000pcs/Year
MOQ:	20 Pieces
Price:	$1.00 - $50.00/Pieces
Model Number:	1K9152
OE NO.:	W01-358-9152
Car Model:	For HENDRICKSON TRAILER
Warranty:	12 Months
Price condition:	FOB China
Type:	by sea / by air / by truck
Sample:	Available
Material:	Imported Natrul Rubber
Operation:	Gas-filled
Brand:	VKNTECH or customized
Service offered:	OEM
Suspension system:	Air Spring Suspension
Type of Goods:	Air Spring/Air bags/Air Ballons
Package:	Standard packing or customized
Payment term:	T/T&L/C
Port:	Guangzhou

Contact Now

Add to Cart

Company Info.

Guangzhou Viking Auto Parts Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

OEM Numbers

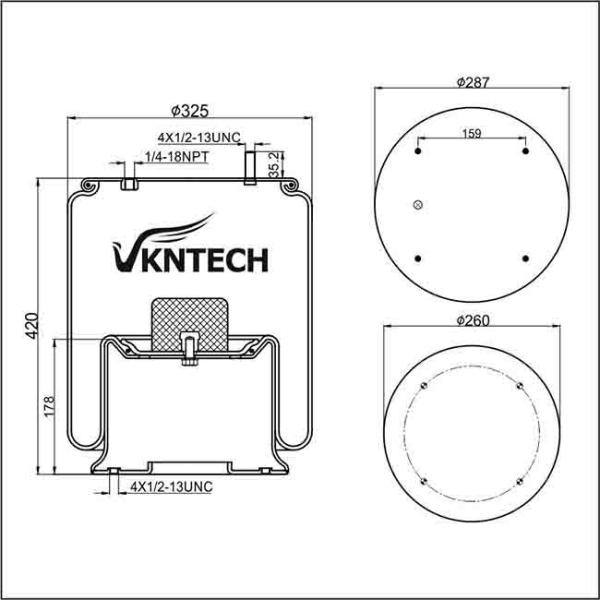

Product Drawing

Specifications

Air Spring Compressed Height	8.7 in.
Air Spring Type	1T Reversible Sleeve
Diameter	10.62 in.
Maximum Height	27.3 in.
Piston Height	7 in.
Bead Plate Top Diameter	11.31 in.
Top Mount	stud
Bottom Stud Configuration	4
Bottom Mount	flat
Top Stud Configuration	5
Bead Plate Bottom Diameter	10.3 in.
Application	Hendrickson Trailer S2063, Holland (Neway) 90557069,MFG.SV.# Neway 90044197, Porcupine, Peerless
Assembled Product Weight (lb)	24
Bellows	1T19L-11
Design Height (in.)	14.5-18.5
Loading Capacity at 20 psig	1,760 lbsf
Loading Capacity at 60 psig	5,280 lbsf
Loading Capacity at 90 psig	7,920 lbsf
Maximum Diameter	13.7
Minimum Jounce Height (in.)	8.88
Natural Frequency	Hz
Operating Temperature (Deg C)	57 to -54

Featues and Benefits

· Require little to no maintenance
· Pressure tested for quality assurance
· Increase towing and hauling capabilities
· Replace worn out oem air bags
· Increase life of other suspension components
· NO maintenance required – these air bags are true workhorses and do not require any upkeep after the initial installation
· Direct replacement from OEM air springs – no additional components required
· Great for extending the life of your suspension as a whole – VKNTECH air springs are the most conveinent and reliable solution
· Spring Pro Bellows Number: TR9158
· Goodyear Bellows Number: 566-28-3-020
· Goodyear Part Number: 1R14-030
· Firestone Bellows Number: 1T19F-11 or 1T19L-11
· Firestone Part Number: W01-358-9158
· Replaces: Hendrickson Can. B-12514-004, Hendrickson Can. B-12514-011, Neway 90557005, Hendrickson Trailer S2063, Neway 90557069, Ridewell 1003589158C, Mfg SV# Neway 90044197
· Cross References: E1R14030, 1R14030, 9152, 8318, 8369, 352-9158, B-12514-004, B-2063, 36514-1, 36514-4, 554780C1, SC2045, AR-1215-1-F, 90557005, 90557069, S-2574C, AS622-9158, 64352, 11 10.5-21 A 318, 1110.5-21A318, 1110.521A318, W01-358-9158, W013589158
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
