| Categories | Industrial LED High Bay Light |
|---|---|
| Brand Name: | KHJ |
| Model Number: | KJF80,KJF100, KJF120, KJF150 |
| Certification: | CE,RoHS |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 400pcs/day |
| Delivery Time: | 3-8 work days |
| Packaging Details: | 405*405*200mm |
| Enclosure Material: | Die-casting aluminium alloy |
| Luminaire Efficacy: | 142m/W |
| Lifespan: | >50,000 hours |
| Operating Voltage: | 100-277 VAC，141-392 VDC |
| Power: | 80W/100W/120W/150W |
| Frequency: | 50/60Hz |
| Power Factor: | ＞0.98 |
| THD: | ＜10% |

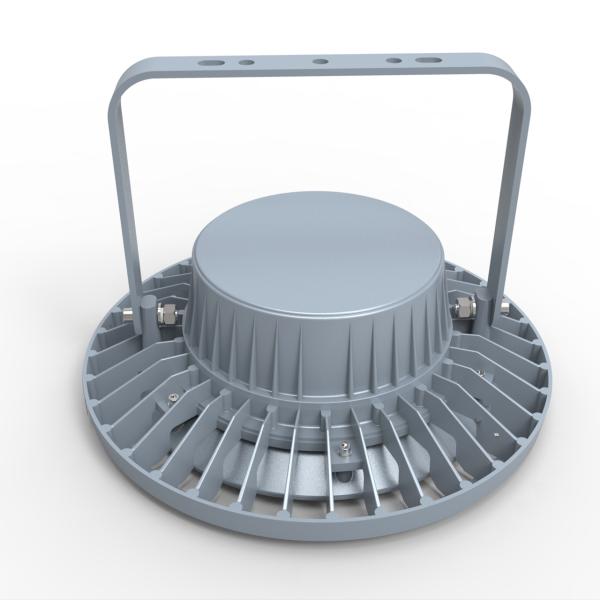

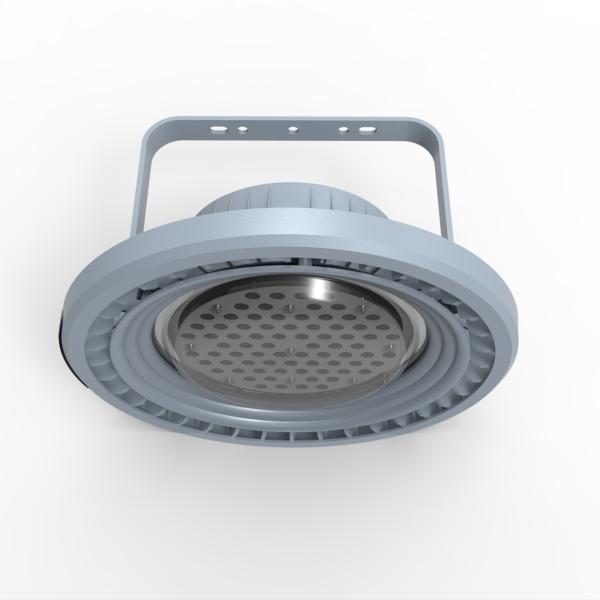

Jellyfish Series Luminaire Efficacy 142m/W LED Industrial High Bay Light
Features And Benefits:
1. Energy saving. Reduce the number of luminaires needed, providing excellent luminaries efficacy more light where you need it.
2. Anti glare, reduces glare in applications where the user may have direct visual contact with the light source.
3. Shock and vibration-resistant tempered glass , reduces the risk of premature failure.
4. LUMILEDS LED source. High efficacy lumen output and high CRI.
5. High efficiency LED source,designed to provide reliable operation in even harshest environment.
6. High strength aluminum alloy housing.
7. IP66,Can be used in wet locations,robust construction suitable for corrosive applications.
8. 80W,100W,120W and 150W available. Optional luminous intensity distribution for different applications.
9. Ambient temperature from -40℃to 55℃.
10. Life span> 50,000 hours.
11. Surge protection:10KV.
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 55015:2006+A1:2007+A2:2009 | EN 61547:2009 | EN 61000-3-2:2006+A1:2009+A2:2009 |
| EN 61000-3-3:2008 | EN 60598-2-5:1998 | EN 60598-1:2008 |
| EPA3050B:1996 | EN1122B:2001 | EPA3052:1996 |
| EPA3060A:1996 | EPA7196A:1992 | EPA3540C:1996 |
| EPA8270D:2007 | IEC 62321:2008 |
Luminaire Efficacy: 142m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,141-392 VDC
Power:80W/100W/120W/150W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:4.6Kg
Size:φ 380*128mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 1XM16X1.5,equipped with 1 meter cable
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

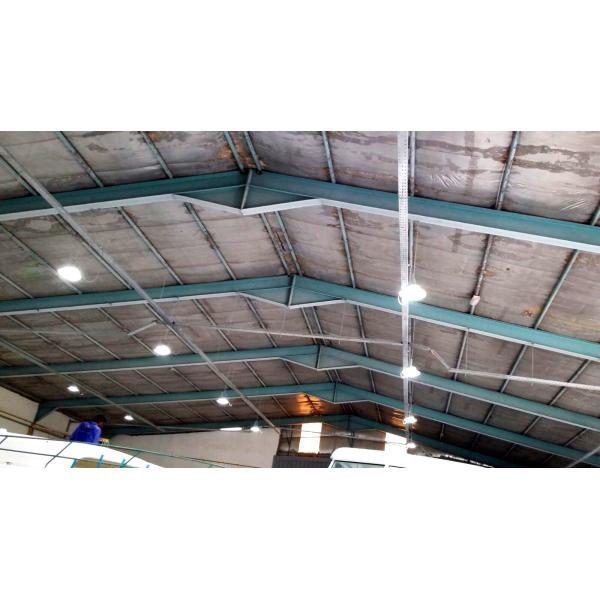

Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
| KJF80*WM-E | 100~277 AC (141~392 DC) | 10500 | 80 | 70 | Warm white | 3000±300 |
| KJF80*NH-E | 11340 | 80 | 70 | Natural white | 4000±300 | |
| KJF80*NH-E | 11340 | 80 | 70 | Natural white | 5000±300 | |
| KJF80*CH-E | 11340 | 80 | 70 | Cool white | 5700±300 | |
| KJF100*WM-E | 13125 | 100 | 70 | Warm white | 3000±300 | |
| KJF100*NH-E | 14175 | 100 | 70 | Natural white | 4000±300 | |
| KJF100*NH-E | 14175 | 100 | 70 | Natural white | 5000±300 | |
| KJF100*CH-E | 14175 | 100 | 70 | Cool white | 5700±300 | |
| KJF120*WM-E | 15750 | 120 | 70 | Warm white | 3000±300 | |
| KJF120*NH-E | 17010 | 120 | 70 | Natural white | 4000±300 | |
| KJF120*NH-E | 17010 | 120 | 70 | Natural white | 5000±300 | |
| KJF120*CH-E | 17010 | 120 | 70 | Cool white | 5700±300 | |
| KJF150*WM-E | 19687 | 150 | 70 | Warm white | 3000±300 | |
| KJF150*NH-E | 21262 | 150 | 70 | Natural white | 4000±300 | |
| KJF150*NH-E | 21262 | 150 | 70 | Natural white | 5000±300 | |
| KJF150*CH-E | 21262 | 150 | 70 | Cool white | 5700±300 |
Remarks:
1.*Stands for candela distribution, including H1V1 / H4V4/H5V5 /
H6V6/FW.
2.For beam angle H1V1/H4V4/H5V5,the luminous flux will be 8% less;
3.For beam angle FW,the luminous flux will be 25% less.
Candela Distribution:
Installation Method:
