Rubber Industrial Suspension Air Springs Actuator 120060H-1 With Full Stroke 23mm

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: 120060H-1
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangzhou, China
MOQ: 3 pieces
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model NO.: 120060H-1
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Bolts Number: 6pcs
Top Plate Hole/Stud: M6
Bottom Plate Hole/Stud: M6
Top Bolts Dia.: 90mm
Bottom Bolts Dia: 90mm
Trademark: Neutral
Transport Package: Cartons
Specification: 16*16*16 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: Yes
Type: Suspension Air Spring
N.W.: 1.6 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

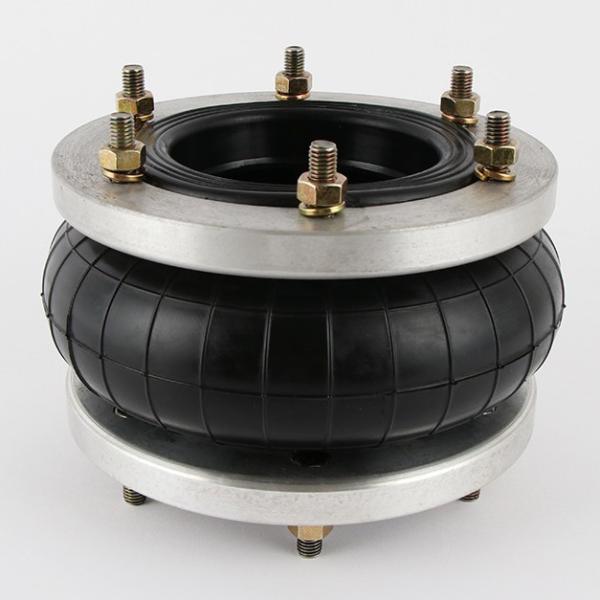

Rubber Industrial Suspension Air Springs Actuator 120060H-1 With Full Stroke 23mm

Industrial Air Springs Actuator AIRSUSTECH 120060H-1 With Full Stroke 23mm


120060H-1​ Technical parameters


Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :M6
Top Cover Distance Plate Screw (Nut) :90MM
Bottom Cover Plate Screw (Nut) Tooth :M6
Screw Center Distance of Bottom Cover Plate : 90MM

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : /

Cover Plate
Top Cover Plate Diameter:108MM
Bottom Cover Plate Diameter: 108MM

Rubber Bellows
Rubber Bellows MAX Diameter: 130 mm
Rubber Bellows Natural Diameter :110 mm
The Working Stroke : MAX 65 mm to MIN 42 mm
Maximum Height : 65 mm
Minimum Height :42 mm
Stroke Height : 23 mm

Bumper block / Buffer block
With Bumper Block Or Without Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :NO Pieces of Girdle Hoop


AIRSUSTECH Model numberNominal diameter

0.7Mpa

MAX IDA

Bearing capacity at design height
0.2Mpa0.5Mpa0.7Mpa

120060H-1

110130122313445

0.7Mpa

Natural frequency

Range of travelDelivery status
Minimum compression heightSafety elongation height
3.7942651

Technical performance parameter list of air spring:
Bearing
load
Power
(kg)
Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
Volume(dm³)
Installation height
34(mm)2593594545506437428440.163
41(mm)2132953784705596467390.270
48(mm)1722423133954775556400.344
58(mm)1221852493133784445120.421
62(mm)901462002533053604200.437
65(mm)681161582052462943430.449
69(mm)36681021331641972340.462
Stiffness and frequency at design heightVertical stiffness(Kg/cm)109145158189224254288
Stiffness and frequency at design heightNatural frequency Hz4.744.433.993.893.853.793.75
Stiffness and frequency at design heightNatural frequency cpm284265239233231227225
