Liquid Impermeable Bolted Steel Leachate Storage Tank

Categories Industrial Water Tanks
Brand Name: CEC TANKS
Model Number: W20180508003
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Place of Origin: CHINA
MOQ: 1 SET
Price: $5000~$20000 one set
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Delivery Time: 10-30 days after deposit received
Packaging Details: PE poly-foam between each two steel plates;wooden pallets and wooden box
Coating Color: Dark green, or Customizing colors
Coating Thickness: 0.25~0.40mm, double coating
Acid and alkalinity proof: Standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion: 3,450N/cm
Hardness: 6.0 Mohs
Holiday test: >1500V
Installation: By jacking machine or steel pole, fast in installation
Foundation: Concrete or glass fused steel
Steel grade: ART 310
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

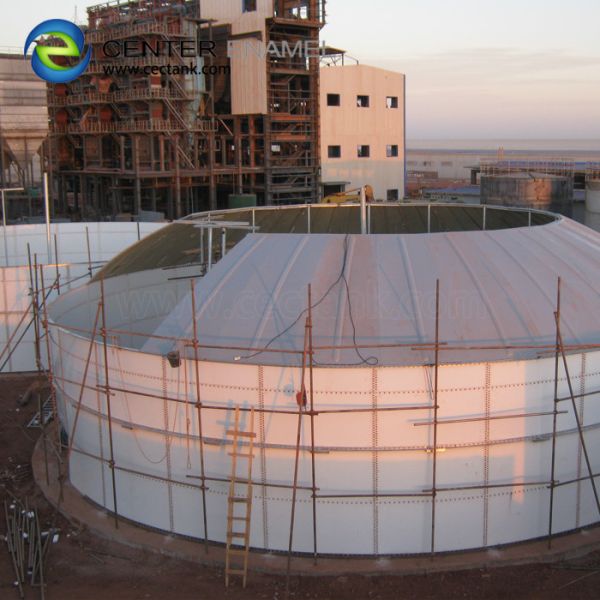

Liquid Impermeable Bolted Steel Leachate Storage Tank

Bolted Steel Leachate Storage Tank


A leachate is any liquid that, in the course of passing through matter, extracts soluble or suspended solids, or any other component of the material through which it has passed. If not properly stored and treated, leachate can seep into the groundwater and waste the groundwater. Center Enamel is the leader manufacturer of leachate tanks in China. Our leachate tanks have been used for landfill leachate storage since 1989. These leachate storage tanks prevent contaminated water from seeping into the ground water prior to treatment.


Corrosion Resistance with Glass Fused to Steel


Glass fused to steel leachate storage tanks are mainly consisted of glass fused to steel plates, After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, the glass fused to steel plates can resist PH range from 1 to 14. This feature allows glass fused to steel plates used for leachate storage tanks.


Glass Fused to Steel Leachate Storage Tank Specifications

Coating colordark blue, dark green, white, and customized
A standard steel plate sizeeffective size 2400mm x 1200 m
Steel plates thickness3mm - 12mm, depends on the diameter & height
Coating thickness0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proofstandard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion3,450N/cm
Elasticsame as steel sheet, around 500KN/mm
Hardness6.0 Mohs
Service life>30 years
Spark test>1500 V
Permeabilitygas and liquid impermeable
Easy yo cleansmooth, glossy, inert, anti-adhesion
Corrosion resistanceexcellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds

About Center Enamel

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
