| Brand Name: | kampa |
| Model Number: | ILD |
| Place of Origin: | Zhejiang, China, CN;ZHE |
| MOQ: | 1000 Pieces |
| Price: | $5.00 - $8.00/Pieces |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Company Info. |
| Yueqing Kampa Electric Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

1.Introduction ofResidual Current circuit breaker
Easy 9 Series Residual Current Circuit Breaker (without over- current protection) is suitable for the line of AC50/60Hz, voltage 240V(2 pole)/ 415V(4 pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value it will cut off the power rapidly to protect human safety and prevent the accident from the current leakage. It is applicable to industrial area, commercial area, tall building and civil house.It complies with standard IEC/EN 61008.1 and GB1696.1
| Frame class | 32A |
| Ratedworkingvoltage | 240/415V |
| Ratedfrequency | 50/60Hz |
| Ratedworkingcurrent | 16,25,40,63A |
| Ratedresidualoperatingcurrent | 10mA, 30mA,100mA,300mA,500mA |
| Ratedresidualun-operatingcurrent | 15,50,150,250mA |
| Sensibility | A&AC |
| Maximum operating time | IΔn t≤0.1s, 5IΔn t≤0.04s |
| Rated making and breaking capacity | ln≤50A500A,ln≤63A630A |
| Limiting value of un-operating current | 6ln |
| Ratedlimitingshort-circuitcurrent | 6000A/10000A |
| PoleNo. | 2P,4P |
| Mechanical life | 20000 |
| Electriclife | 4000 |

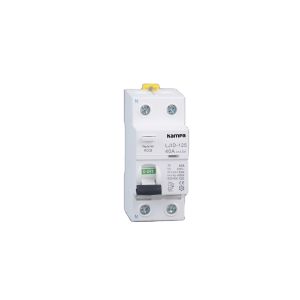

2.PicturesofResidual Current circuit breaker


3.ProductionLineofProduct

4.MoreProductfor You to Choose

5.PackingofProduct

6.SampleRoomsofProduct
