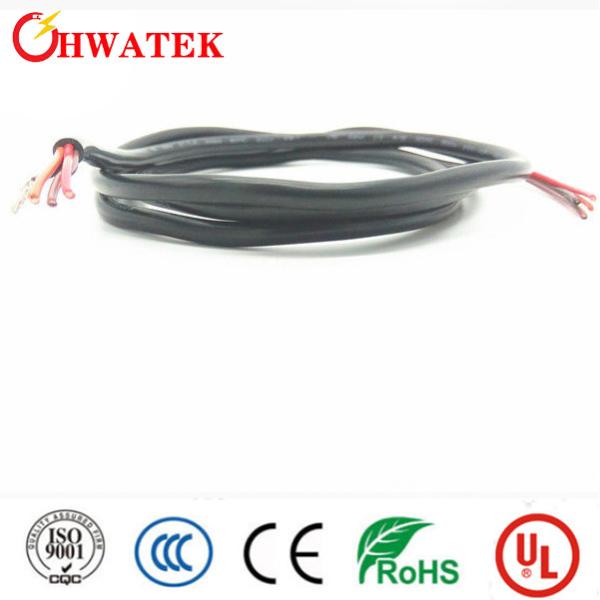

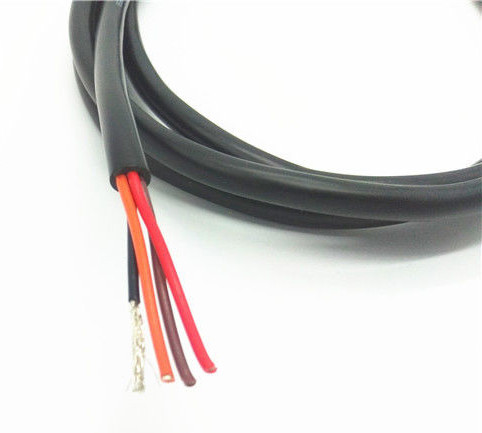

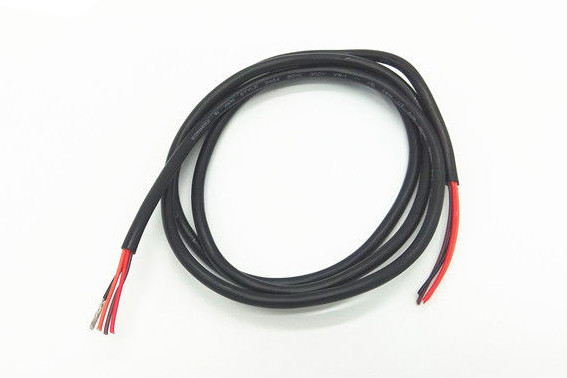

UL2586 PE Braided Electrical DC Cable Wire Multi Strand

UL2586 PE Braided Multistrand Electrical Winding Motor Energy Electric DC Cable Wire

Product Description

Construction
Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC, SRPVC, PP
Jacket: PVC

Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,

Technical data
Rated voltage:600V
Rated Temperature:-40ºC-105ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.5kV/1min

Printing :E258652 AWM STYLE 2586 AWGXX 105ºC 600V VW-1 ---c AWM I A/B 105ºC 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Properties
Heat resistance
Oil resistance
Wear resistance
Bending resistance
UV resistance

Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Certificates

Production Progress

Shipping

FAQ
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
