Copper Tungsten Electrical Contacts

Copper Tungsten Electrical Contacts is the composite of Tungsten and Copper, which own the excellent performances of Tungsten and Copper, such as heat-resistant, ablate-resistant, high-intensity, excellent thermal and electrical conductivity. Tungsten copper alloy is easy to be machined. Tungsten copper alloy is used widely in such industries as engine, electrical power, electron, metallurgy, spaceflight and aviation. Using CIP formation, sintered tungsten skeleton and infiltrating copper (silver) technology, large size and special shape products of WCu composites with 6-90 percent of copper are produced, such as electric contacts, electrode, refractory parts, heat sinks and parts of rocket, We can also produce Tungsten copper alloy sheet material, tubing, plate and other small products by mould pressing, extrusion pressing and MIM.

Copper Tungsten Electrical Contacts information:
Material: W50-90Cu10-50
Brand:W55Cu45,W60Cu40,W70Cu30, W75Cu25, W80Cu20, W85Cu15, W90Cu10
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy rods size: dia(3.0-200mm)*L
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu Flatness tolerance:<4um
WCuRoughness:Ra1.6-Ra0.8
WCuSurface: polished, ground.
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size see following attachment

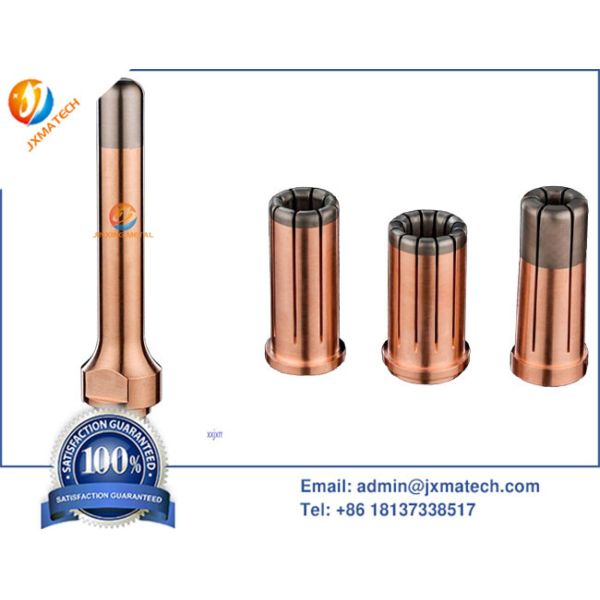

Copper Tungsten Electrical Contacts Picture:

We can produce various sizes 2022 Wcu 70-80-90 Alloy Customized Tungsten Copper
