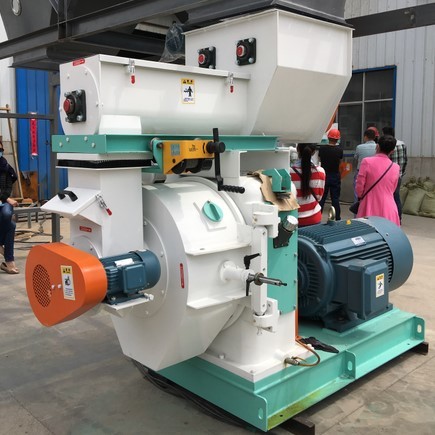

Animal Feed Pellet Mill Machine Chicken Feed Pellet Making Machine
Product description of feed pellet mill machine
The poultry feed pellet mill machine can produce various poultry
feed pellets, suitable for most small and medium-sized feed
factories, feed pellets can be used in their own farms or sold
This animal feed pellet mill can be used for processing livestock,
poultry and aquatic feed pellets, which is specially suitable for
big feed factory, breed farms. It has the better raw material
versatility, which can be suitable for pelletizing many kinds of
raw material, such as corn, broom corn, wheat, beans, oil seed meal
and other materials . And also, this manufacturing plant for animal
feed has the features of low energy consumption and high production
efficiency for larger profits.e can produce various poultry feed pellets, suitable for most small
and medium-sized feed factories, feed pellets can be used in their
own farms or sold.
Parameter of feed pellet mill machine
| Model No. | Main motor power | Capacity (t/h) | Ring die inner diameter (mm) | Feeder power (kw) | Conditioner motor power (kw) | Size (mm) | Weight (kg) |
| SZLH250 | 22kw | 0.6-1 | 250 | 0.75 | 1.1 | 1750×650×1750 | 800 |
| SZLH320 | 37kw | 1-3 | 320 | 0.75 | 2.2 | 1900×1800×1650 | 2000 |
| SZLH350 | 55kw | 3-5 | 350 | 0.75 | 2.2 | 2100×2000×1850 | 2400 |
| SZLH420 | 110kw | 8-10 | 400 | 1.5 | 4 | 2200×2000×2150 | 2900 |
| SZLH508 | 132/160kw | 10-18 | 450 | 1.5 | 4 | 2300×2350×2150 | 3500 |
Features of feed pellet mill machine:
1. The part in contact with the material adopts stainless steel
structure, which occupies a small area and has low noise;
2. Wide adaptability, can produce chicken feed, duck feed, fish
feed, etc., with high economic benefits;
3. Using dry processing technology, the produced feed pellets have
high hardness, smooth surface and internal maturity, which is
beneficial to the digestion and absorption of nutrients by animals;
4. The forming process of the pellets kills all kinds of parasite
eggs and other pathogenic microorganisms, thereby reducing the
types of insects and diseases in the digestive system.
Pellet size of feed pellet mill machine:
The granules are formed at one time, easy to feed, store and
transport,and you can make 2-8mm diameter animal fed pellets.
a. For pig, the pellet diameter is usually 3.5-6.5mm.
b. For cattle, the pellet diameter is usually 4.5-8mm.
c. For chicken, pellet diameter is usually 3.2mm.
d. For fish, pellet diameter is usually.0.9-3.0mm.
e. For shrimps, pellet diameter is usually 1.0-3.5mm.
Pellet length is customized.
Advantages of feed pellet mill machine
1. With reasonable technology, homogeneous grinding particles, high
capacity and low energy consumption, it can produce 1000-40000 tons
mash and pellet feed per shift annually.
2. Modular Structure: The plant is compact, which occupies less
floor space and has low requirement on the mill tower, also needs
low investment in civil works. This structure is convenient for
assembly and disassembly, facilitates the shipment and installation
3. High accuracy dosing system with centralized control: the
analogue panel is adopted. All machines can be interlocked and
safety, alarm device is available. The operation is simple and
convenient
4. Wide applicable scope: The plant can produce both poultry &
livestock feed and fish feed and is applicable for medium and small
sized feed mills.
