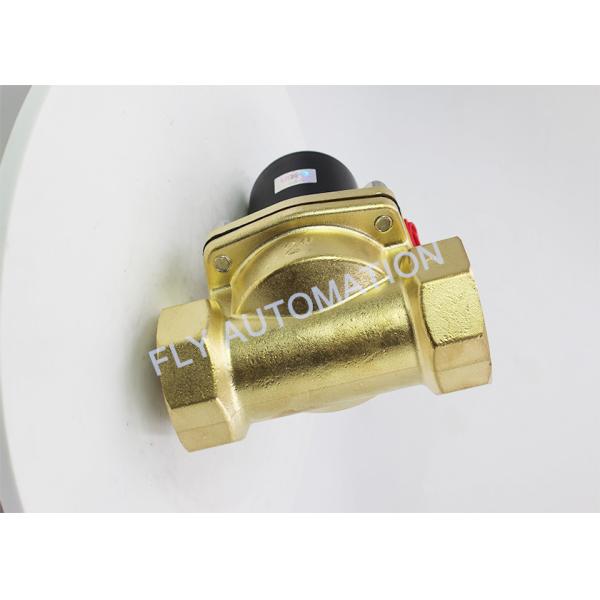

UW-50 Electric Water Valve Normally Closed 2W G2" Brass 2/2 Way AC220V UNID

UW-50 2W G2" Brass 2/2WayAC220V UNID Water Solenoid Valves Normally Closed Conductive

PRODUCT DESCRIPTION
1. UW series is direct, multiplex, connected diaphragm, conductive and normally closed (NC)
2/2 way solenoid valve.
2. Able to be operated directly under low pressure
3. Availability of fluid type: water, air, light oil
4. Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C)
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
3. AC voltage tolerance:土10%; DC voltage tolerance:土1%
4. It should be installed horizontally; vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature; solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst

PRODUCT D ESCRIPTION
1. UD series is direct-acting, conductive, and normally closed (NC) 2/2 way solenoid valve.
2. Able to be operated directly without pressure
3. Availability of fluid type: water, air, light oil, gas, vacuum
4. Acceptable for customization: Viton (130°C),Silicone (130°C) and EPDM (130°C)
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
1. AC voltage tolerance:士10%; DC voltage tolerance:土1%
2. It should be installed horizontaly; vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature; solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst
