UNID US-15-50 US Series Normally Closed Water Valve

Categories Water Solenoid Valves
Brand Name: UNID
Model Number: US-15-50
Certification: ISO Standand
Place of Origin: China
MOQ: 1 PC
Price: Negotiation
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 100 PCS Per Week
Delivery Time: 7 working Days
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement

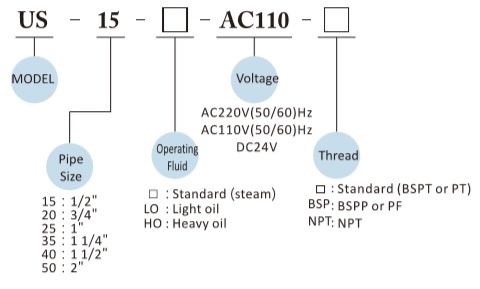

MODEL: US-15
PIPE SIZE: 1/2”
CV: 4
ORIFICE: 17mm
FLUID TEMP: -5*C~ +185*C
Light oil /Gas: 0.5~10
Dimension (mm) L: 82
H: 125
D: 58
Weight (kg): 1.6
Company Info.
Airwolf Automation
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

UNID US-15-50 US Series Normally Closed Water Valve

UNID US-15-50 US Series Normally Closed High-Temperat Brass Control Fluid Flow Water Solenoid Valve

PRODUCT DESCRIPTION
.US series is multiplex, pilot operated piston, conductive and normally closed
(NC) 2/2 way solenoid valve.
.Availability of fluid type:steam, heavy oil
CAUTIONS:
.Minimum pressure to open:over 0.5~1kgf-c㎡
.Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
.To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
.AC voltage tolerance:±10%;DC voltage tolerance:±1%
.It should be installed horizontally;vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
.Liquid status when it is high temperature;solid status when it is cool.
.Corrosive fluid
.Viscosity over 20cst
MODELWaterproof DIN/flying lead CoilNASS DIN Coil (IP65)PIPE SIZECVORIFICEFLUID TEMPOperating Pressure kgf I cm' (bar)Vacuum (Torr)Dimension (mm)Weight (kg)
WaterAirLight oilGasLHD
US-151/2”417mm-5*C~ +185*C0.5~100.5~1082125581.6
US-203/4"617mm-5°C- +185*C0.5~100.5~1082125581.67
US-251"1222mm-5*C~ +185"C0.5~100.5~1091133582.02
US-351 1/4"1830mm-5"C~ +185'C1~101~10111141583.08
US-401 1/2"2230mm-5*C- +185*C1~101~10111144583.1
US-502"4850mm-5"C- +185*C1~101~10163175586.82

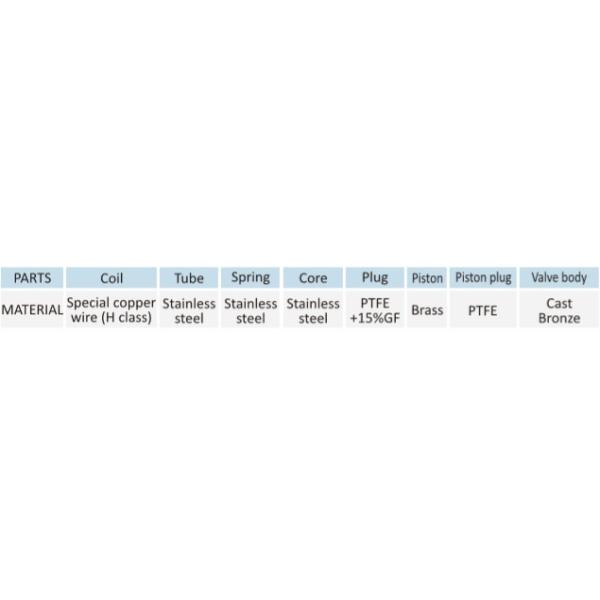

PARTSCoilTubeSpringCorePlugPistonPiston plugValve body
MATERIALSpecial copper wire (H class)Stainless steelStainless steelStainless steelPTFE +15%GFBrassPTFECast BRONZE
