| Brand Name: | NSK |
| Model Number: | 6307ZNR |
| MOQ: | 1 |
| Price: | USD 0.5-10 PCS |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 PCS/MON |
| Delivery Time: | 3-15 DAYS |
| Packaging Details: | Single Box , Industrial Packing |
| Type: | Ball |
| Structure: | Deep Groove |
| Number of row: | Single Row |
| Precision rating: | P0 P6 P5 P4 P2 |
| Seals type: | ZZ 2RS OPEN |
| Package: | Original Package |
| Company Info. |
| JFZ BEARING CO.,LTD |
| View Contact Details |
| Product List |
Description
Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications.

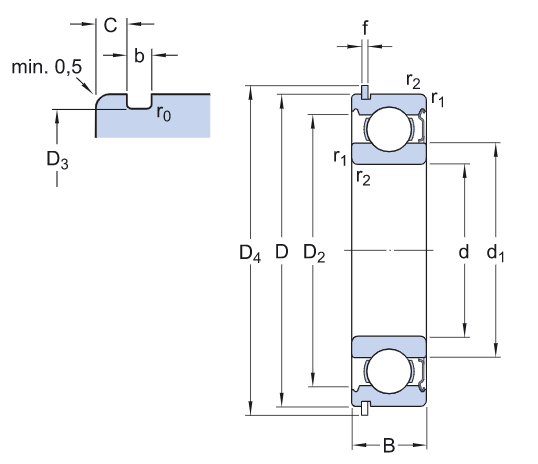

This 6307 ZNR SKF bearing is a Deep Groove Radial Ball Bearing Shielded on One Side with a snap ring groove in the outer ring and an appropriate snap ring, this bearings also has a standard radial internal clearance The bearing's dimensions are 35x80x21.
| 63 | 07 | Z | NR | |
|---|---|---|---|---|
| Medium Series | 35mm - Bore Size | Metal Shield on One Side of Bearing | Normal Radial Internal Clearance | Snap ring groove in the outer ring, with appropriate snap ring |
BRAND : NSK
SKU : 6307ZNR
CONDITION : NEW
AVAILABILITY : IN STOCK
WEIGHT : 0.4600 KGS
Technical Data
INSIDE DIAMETER (MM) : 35MM
OUTSIDE DIAMETER (MM) : 80MM
WIDTH (MM) : 21MM
CAGE TYPE : STEEL
SEALS OR SHIELDS : SINGLE METAL SHIELD
CLEARANCE : STANDARD
DYNAMIC LOAD RATING (KN) : 35.1
STATIC LOAD RATING (KN) : 19
FATIGUE LOAD RATING (KN) : 0.815
REFERENCE SPEED RATING (R/MIN) : 19000
LIMITING SPEED RATING (R/MIN) : 12000

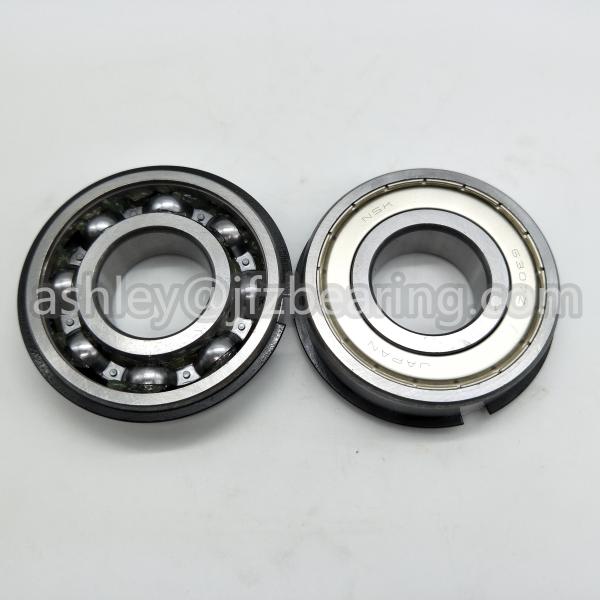

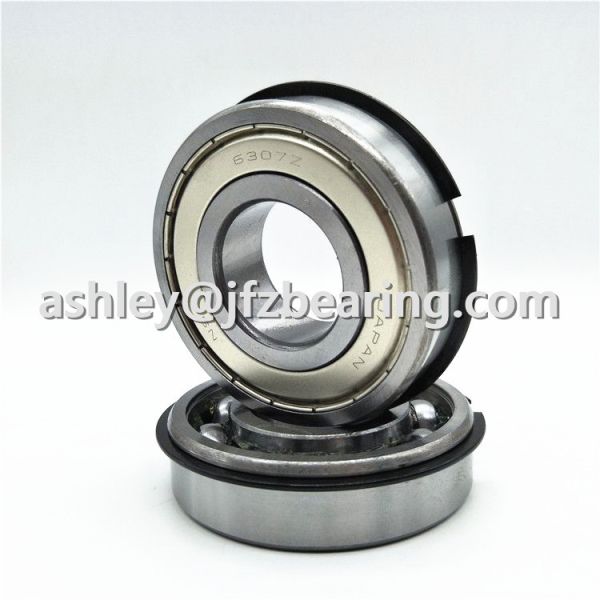

Product Picture
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
|
