500470a5102aaaaa Cross White Hydraulic Motor Re26180200 Roller Stator Danfoss

Categories Orbit Hydraulic Motor
Brand Name: HANJIU
Model Number: BMER-475
Certification: CE
Place of Origin: CHINA
MOQ: 30 Sets
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Delivery Time: 10-15 work days
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Type: Hydraulic Drive Motor
Speed: cont160rpm/int.195rpm
Warranty: 1year
torque: cont.1085/int.1180 N.m
output: 14.5kw-16.5kw
pressure: 17.5mpa-19mpa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

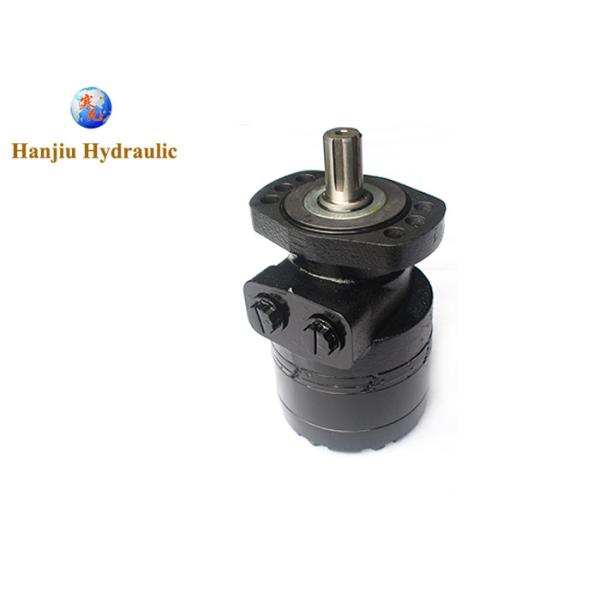

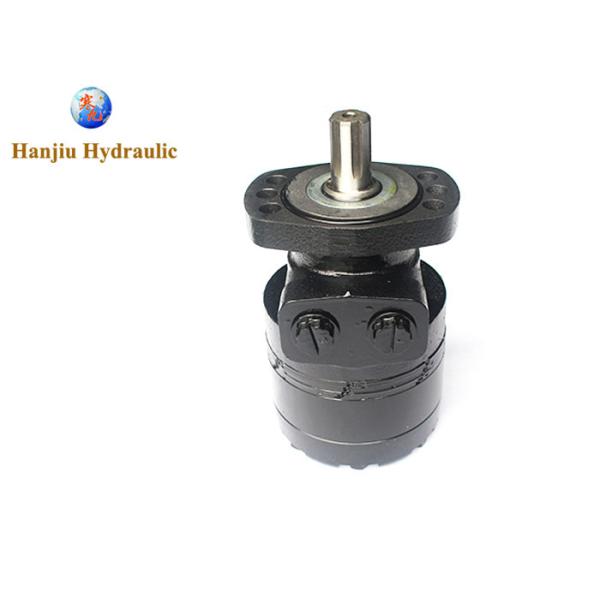

500470a5102aaaaa Cross White Hydraulic Motor Re26180200 Roller Stator Danfoss

500470A5102AAAAA Cross White Hydraulic Motor RE26180200 Roller Stator Danfoss

.

Product details:


1,model numberBMER
2,displacement475ml/r
3,flangemagneto Mount
4,shaftSAE 6B
5,oil port7/8-14 o-ring
6,drain---
7,rotationStandard
8,paintBlack
9,replacewhite RE


Main Specifications:

Type

BMER

125

BMER

160

BMER

200

BMER

230

BMER

250

BMER

300

BMER

350

BMER

375

BMER

475

BMER

540

BMER

750

Geometric displacement

(cm3 /rev.)

118156196228257296345371462540745
Max. speed (rpm)cont.360375330290290250220200160140100
int.490470425365350315270240195170120
Max. torque (N*m)cont.32545053062570081090599010859801050
int.38052560071079093010351140118012401180
peak450590750870980112012851360126013801370
Max. output (kW)cont.12.01515.516.017.518.017.516.514.511.58.0
int.14.017.518.019.020.021.020.019.016.515.010.0
Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
int.24242424242424241917.512
peak27.627.627.627.627.627.627.627.620.520.514
Max. flow (L/min)cont.4560707075808075757575
int.6075858590959590909090


Other types


RE18070400


RE24070300


RE26080410


RE18070310





Low Speed High Torque (LSHT) hydraulic motors orbit type motors that interchange with Parker hydraulic motors, Danfoss hydraulic motors, White Drive Products hydraulic motors, TRW Ross hydraulic motors and Eaton Char-Lynn hydraulic motors. Honor Pumps high speed, low torque hydraulic gear motors that interchange with Barnes Contcentric hydraulic motors. Anfield Industries hydraulic motors.


All hydraulic motors that are promoted as a "Drop in replacement for" meet or exceed the specifications of the the hydraulic motor that they are replacing. These hydraulic motors are a direct replacement for fit, form and function. All hydraulic motors that HANJIU Technology Supply offer have a 12 month warranty from date of shipment.


  • Char-Lynn Hydraulic Motor Interchange

  • Danfoss Hydraulic Motor Interchange

  • Gear Type 2 Bolt Flange

  • High Speed High Torque Hydraulic Vane Motors

  • Low speed High torque

  • OEM Replacement Hydraulic Motors

  • Parker Hydraulic Motor Interchange

  • Prince Hydraulic Motor Interchange

  • Ross Hydraulic Motor Interchange

  • Snow Removal Hydraulic Motors

  • White Hydraulic Motor Interchange
