Norgren PM/31061 Industrial Air Springs Airsustech 2B6X1 With Aluminum Smooth Plate

Norgren PM/31061 Industrial Air Springs AIRSUSTECH 2B6X1 With Aluminum Smooth Plate

AIRSUSTECH 2B6X1 Cross OEM:

AIRSUSTECH 2B6X1

Replace these air springs (air bellows)

Norgren Part Number: PM/31061

NorgrenPart Number:PM 31061

Norgren Part Number:PM31061
Norgren bellows: 6" x1/ 6"x1 / 6x1

Firestone Part Number: W01-R58-4052

Firestone Part Number: W01 R58 4052

Firestone Part Number: W01R584052
Firestone Bellows Number: 6"x1

Firestone Bellows Number:6"x1

Firestone Bellows Number:6x1

Continental ContiTech Part Number: FS 76-7 1/2 M10
Continental ContiTech Part Number: FS 76-7 DS CR / FS76-7DSCR
Continental ContiTech Part Number: FS 76-07 DS G1/2 CR
Continental ContiTech Part Number: FS76-7

ContiTech Part Number: FS76-7

ContiTech Part Number: FS767
Dunlop FR: SP153
Dunlop UK (Pneuride): P1305 01 13/

Dunlop UK (Pneuride): PNP305510113

AIRSUSTECH 2B6X1 Single Convoluted Air Spring Specifications

STYLE6 x 1 steel
NUMBER OF BALLS 1-fold
MIN. HEIGHT (MM) 50 mm
MAX. HEIGHT (MM) 105 mm
MAX. WORKING HEIGHT (MM) 100 mm
MAX. LOAD CAPACITY (KN) 6 kN
INSTALLATION SPACE (MM) 190 mm
MAX. DIAMETER (MM) 162 mm
WEIGHT (KG) 1.95 kg
AIR CONNECTION G 1/2 "

Specifications and Detail Technical Parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 6pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 6pcs X M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

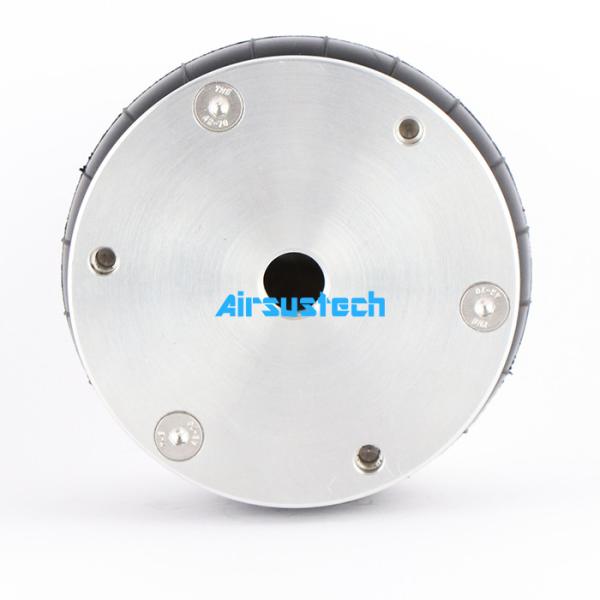

❸ Cover Plate

Top Cover Plate Diameter (Width): 154 mm

Bottom Cover Plate Diameter (Width): 154 mm

Material top and bottom plate:steel

❹Rubber Bellows

Diameter max at 7 bar:165MM

Stroke of Rubber Bellows:55 m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no Girdle Hoop

Description of AIRSUSTECH 2B6 X 1:

AIRSUSTECH 2B6X1 is produced by AIRSUSTECH factory. AIRSUSTECH air spring 2B6X1 double scroll airbag can completely replace Norgren PM/31061 Industrial Air Springs Firestone Air Bags; the technical parameters of AIRSUSTECH 2B6X1 are the same as Norgren PM/31061 Industrial Air Springs, indicating AIRSUSTECH 2B6X1 gas Scroll industrial air springs will not use internal flexible parts of molded beads.The number of rubber bellows is 25, and the flexible piece is connected to the end of the bracket by clamping the material between the top plate and the bottom plate, and then adjusting it to a suitable diameter.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
