IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling

IP55 Sandwich Structure Panel Front Rear Access Heat Exchnager Cooling Outdoor Power Cabinet Telecommunication Enclosure

1. Application

The ET9090210-UP9 Outdoor Power Cabinet is mainly used in wireless communication base station, such as 5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc. The cabinet can contain rectifier system, UPS, inverter, battery etc

2. Description

This cabinet have 20U 19 inch space and 2 layer battery shelves, use Sandwich structure panel, galvanized steel material, one front door and one rear door. Adopt heat exchanger for cooling. All the screw is high corrosion resistance stainless steel material.

3. Features

(1) The cabinet is dustproof, sunproof fireproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: heat exchanger. (Other cooling option: air conditioner and fans). MTBF≥50000h
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5) Use outdoor powder coating with high anti-corrosion.

4. Technical Parameters

5. Accessories List

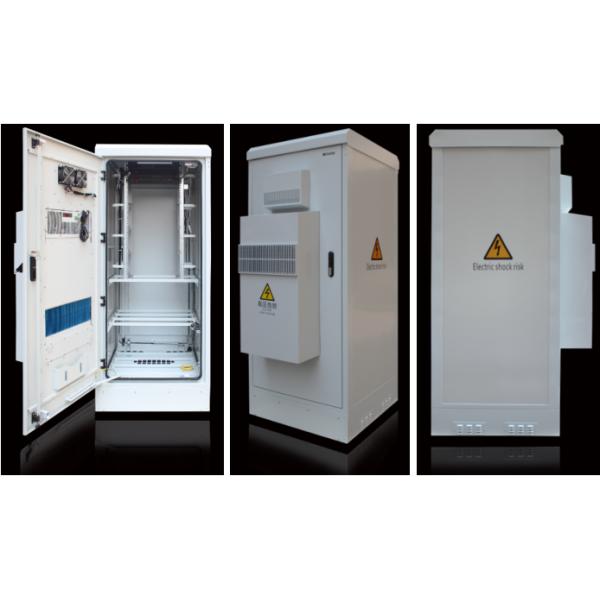

6. Cabinet Picture

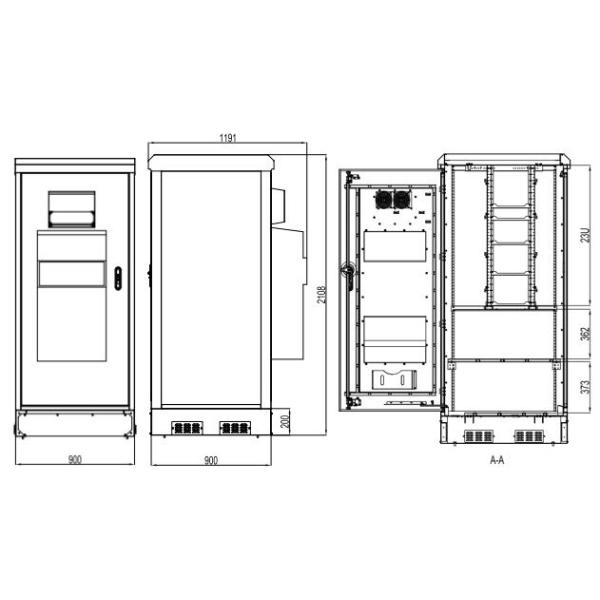

7. Drawing

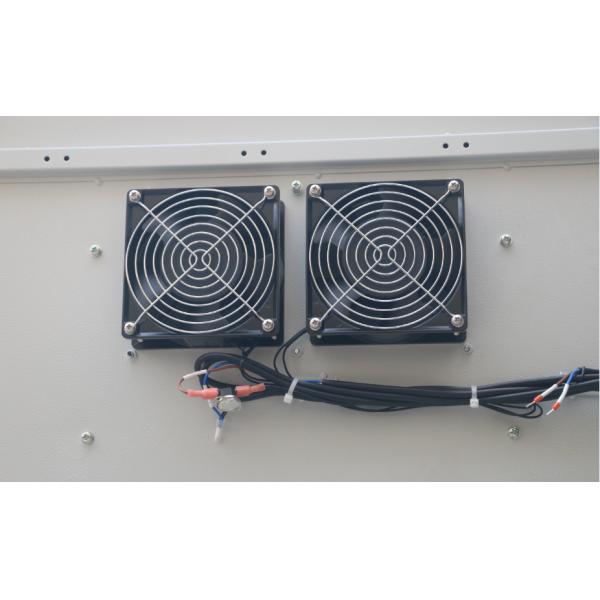

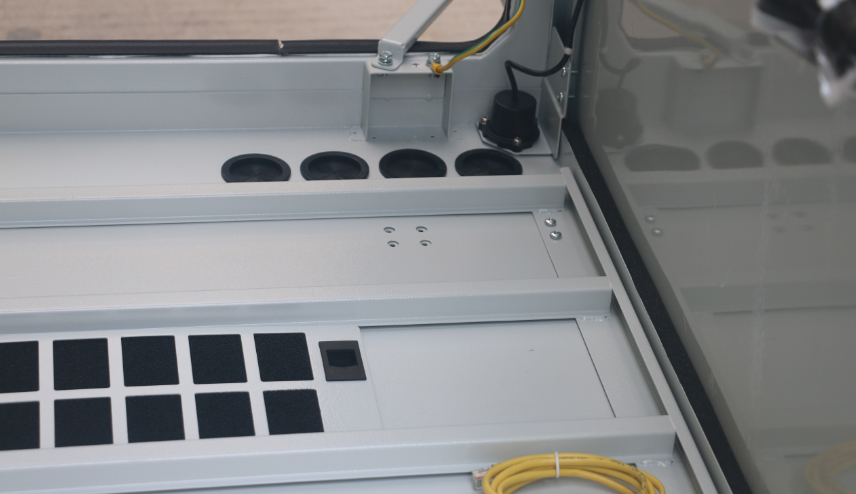

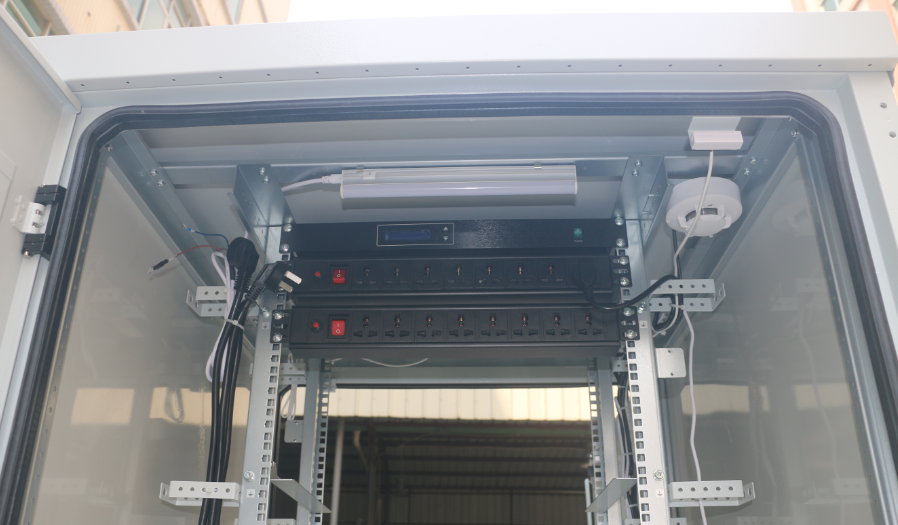

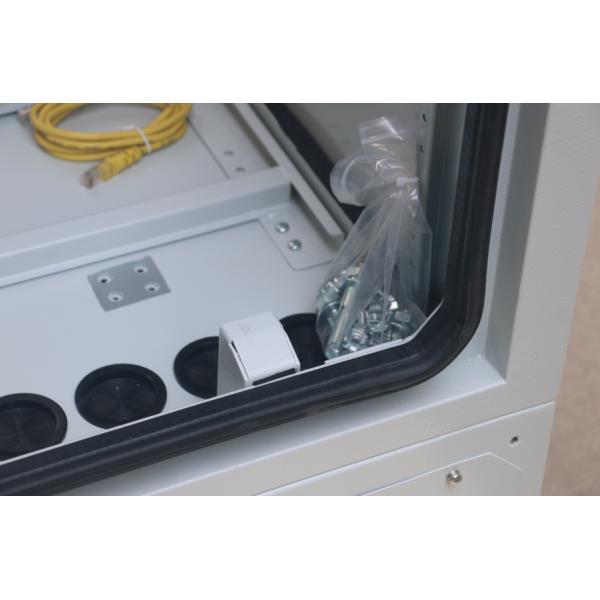

8. Cabinet Details

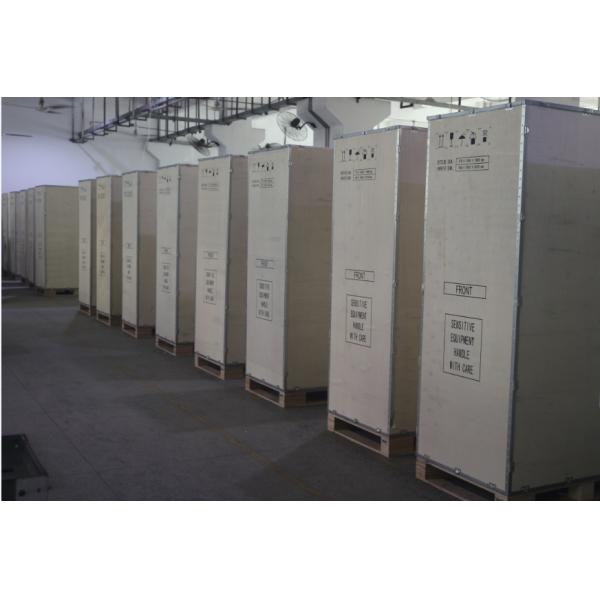

9. Packing
