ASU80 Single Losse Tube Self Supporting Fiber Optic Cable

ASU80 Self-Supporting Single Losse Tube Fiber Optic Cable

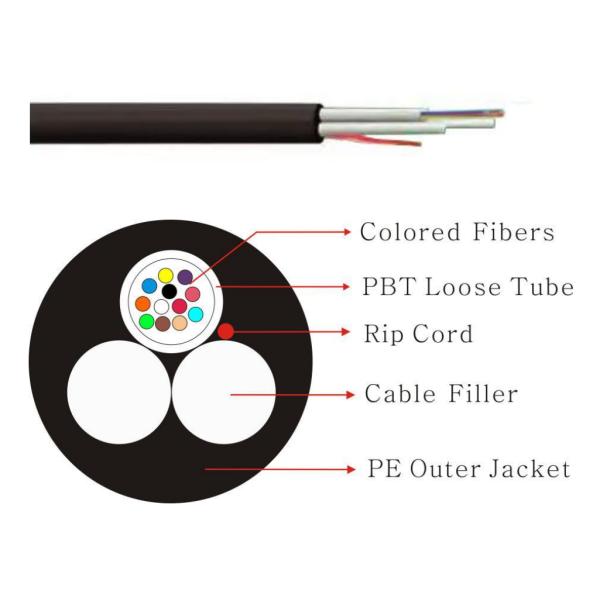

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

Feature

Small Size and Ligth Weight

Two FRP as strength member to provide good tensile performance

Gel Filled or gel free , good waterproof performance

Low price ,high fiber capacity

applicable for short span aerial and duct installation

Optical Characteristics

Technical parameter

Real Factory

What does the acronym ASU stand for?
When you find this abbreviation in the nomenclature of an optical cable, it means that it is a self-supporting (AS) cable with a single loose tube (U) through which all the optical fibers pass.

The number that accompanies the acronym refers to the number of meters in which that cable model can support itself, that is, in spans of up to 80m, spans of 100m or spans of 120. This span is nothing more than the distance between the posts you will install the support system for the cable.

ASU 80
The ASU80 optical cables are self-supporting in spans of up to 80 meters, therefore, they are indicated for cable passage in urban centers, as within cities the poles are usually, on average, 40 meters apart, which guarantees a good support for this cable.

ASU 100
ASU100 optical cables are self-supporting in spans of up to 100meters, therefore, they are indicated for cable routing in rural areas, where the poles are usually between 90 and 100 meters apart.

ASU 120
ASU120 optical cables are self-supporting in spans of up to 120 meters, therefore, they are indicated for the passage of cables in environments where the poles are far apart, such as on roads and crossings over rivers and bridges.

We still have self-supporting cables for longer distances on the market, such as the ASU500, but the 80, 100 and 120 are the most commonly used due to their applicability.
