| Categories | Underground Fiber Optic Cable |
|---|---|
| Brand Name: | Jiqian |
| Model Number: | GYFTY53 |
| Certification: | CE/ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 1KM |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60000KM/month |
| Delivery Time: | 3-5 days, it depends on your quantity |
| Packaging Details: | wooden drum |
| Fiber count: | 2-288 cores |
| Cable Structure: | Double Jacket |
| Strength member: | FRP or steel wire |
| Application: | underground |
| Fiber options: | G652D ,G657A |
| Jacket: | PE |
| Color: | Black |
| Warranty: | 25 yaers |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

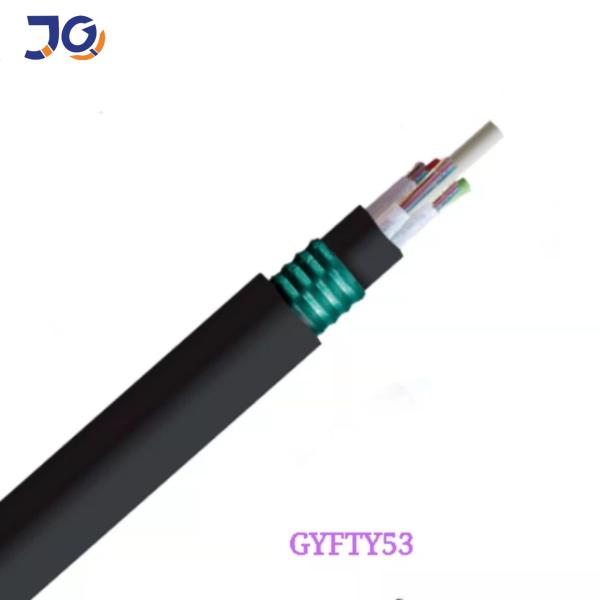

12 24 48 Core Underground Sm/mm Double Jacket Fiber Optic Cable Gyfty53

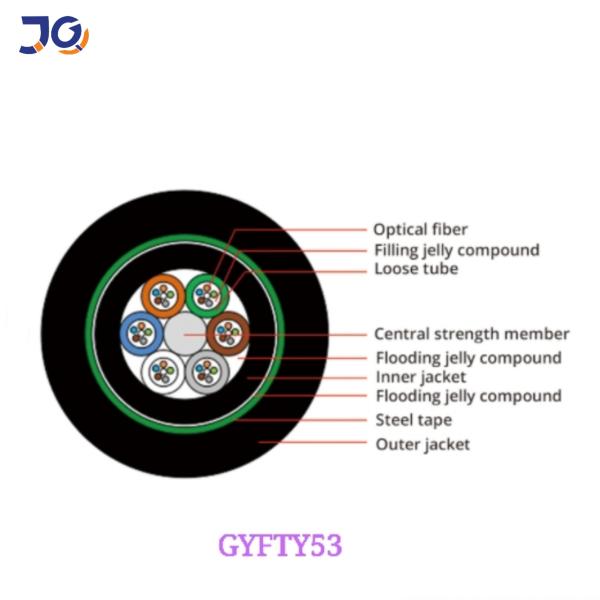

GYFTY53 fiber cable consists of :
1.Fiber
2.Loose Tube Filled with Jelly
3.Central Strength Member
4.Filler
5.Cable Filling Compound
6.Inner Jacket
7.Outer Jacket

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of
fiber
· Crush resistance and flexibility

Application
Interbuilding voice or data communication backbone,Installed in duct,underground conduit.

Optical Characteristics:
| Fiber | G.652 | G.655 | 50/125^m | 62.5/125^m | |
Attenuation (+20X) | 850nm | <3.0dB/km | <3.3dB/km | ||
| 1300nm | <1.0dB/km | <1.0dB/km | |||
| 1310nm | <0.36dB/km | <0.40dB/km | |||
| 1550nm | <0.22dB/km | <0.23dB/km | |||
| Bandwidth | 850nm | >500MHz-km | >200MHz-km | ||
| 1300nm | >500MHz-km | >500MHz-km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength cc | <1260nm | <1450nm | |||
