| Categories | Hydraulic Demolition Hammer |
|---|---|
| Brand Name: | HANYUN |
| Model Number: | HY135 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable Price |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 1000 sets per year |
| Delivery Time: | 3-20working days |
| Packaging Details: | plywood box or container |
| Breaker name: | Hydraulic excavator hammer |
| Chisels head: | Flat head, moil point, conical head |
| Color: | Red color hydraulic excavator hammer |
| Breaker shell: | Q345B/Q235B thick steel |
| Working Purpose: | Rock, frozen soil and concrete breaking breaker |
| Excavator used: | Light duty, medium duty and heavy duty excavator |
| Near port: | Qingdao port, Tianjin port, Shanghai port |
| Catagory: | Excavator attachments |
| Company Info. |
| Zhengzhou Hanyun Construction Machinery Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

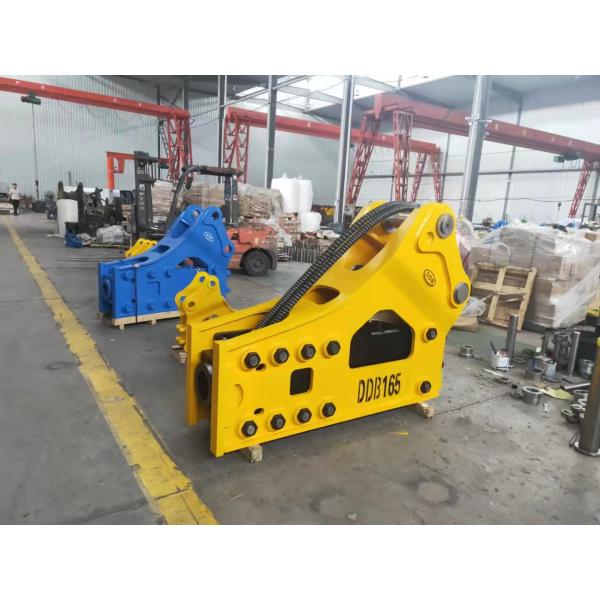

Frozen Soil Breaking Rock Breaking Concrete Breaking Hydraulic
Excavator Hammer
(1) Applications of hydraulic excavator hammer
1. Building demolition;
2. Concrete road breaking;
3. Asphat road breaking;
4. Frozen soil breaking;
5. Rock breaking in quarry and mining;
6. Trenching;
7. Tunnel excavating;
8. Mountain excavating;
9. Other hard objects breaking jobs
(2) Main Technical Parameters
| Model of hydraulic excavator hammer | 135mm hammer chisels |
| Total weight (KG) | 1663 |
| Size (MM) | 1610*530*1280 |
| Driving oil pressure (KG) | 180-220 |
| Driving oil volume (L/MIN) | 100-150 |
| Striking frequency(BPM) | 350-600 |
| Rubber hose diameter (INCH) | 1 |
| Drill rod diameter(MM) | 135 |
| Drill rod weight(KG) | 125 |
| Applicable vehicle weight (T) | 18-23 |
(3) FAQ
1. Q: How do you ship the concrete structures demolition hammers?
A: Usually we will cover demolition hammers with plastic film firstly, then load them into the container.
2. Q: When you will deliver the products after we place one order?
A: Usually 3-10 working days for the standard size. For customized hydraulic hammers, about 15 days
3. Q: What is your payment method?
A: L/C, T/T available for the payment. Usually 30% TT as deposit, 70% blanced by TT before shipping
4. Q: What is your quality warranty period?
A: For the complete hydraulic breakers, 6 months-12 months quality warranty period. But quick-wearing
spare parts are not included.

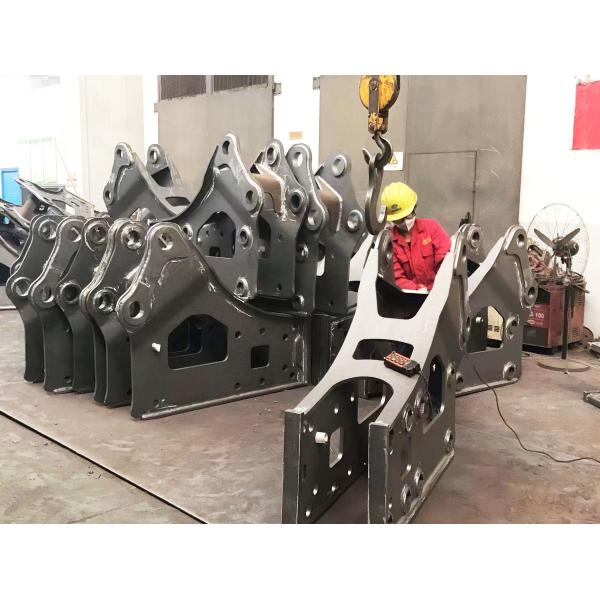

5. Q: How about your heat treatment technology?
A: Hanyun owns its own leading heat treatment technology, we have a full line of high-end imported heat
treatment line and professional technicians to control heat treatment. Thus breaker cylinders and chisels
processed are anti-wearing, anti-striking, having a long service life
|
