4 Inch Dia Stainless Steel Water Well Screen Pipe 4 - 10mm Thickness

4 Inch Dia Stainless Steel Well Screen Pipe 4 - 10mm Thickness For Water Well

wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,

XinLu factory's water well screens is produced by a perfect combination of Vshaped wire and V-shaped rod or round rod. The wire is welded onto the rod at each intersection point.
Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anticorrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

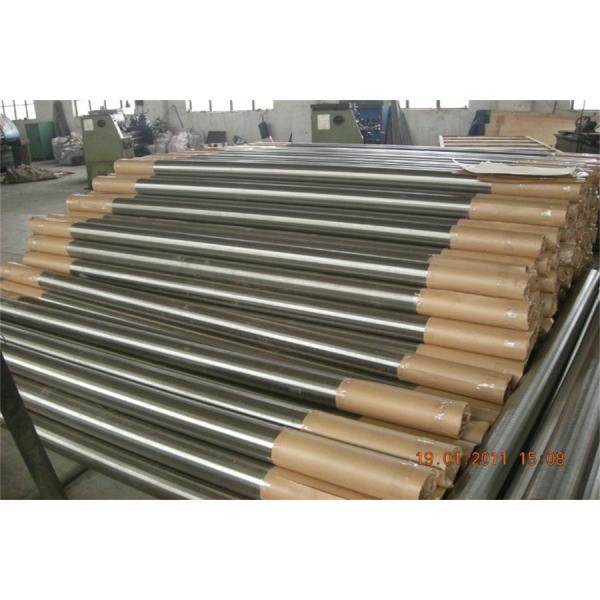

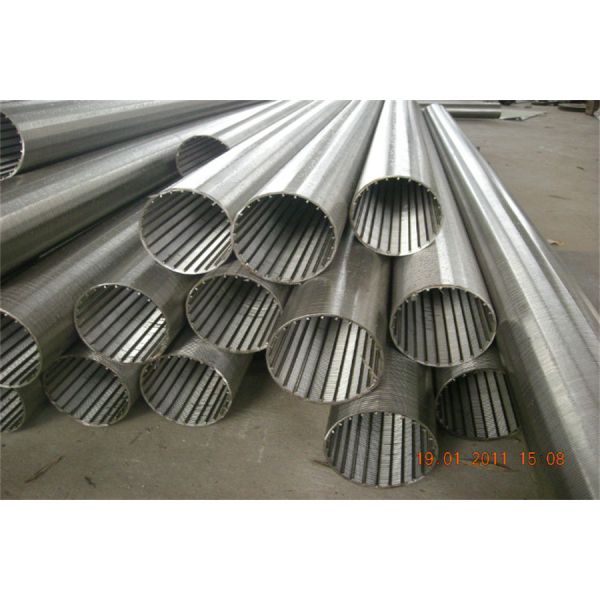

Stainless Steel Water Well Screen Pipe

Slot Rod Based Continuous Slot Johnson Wire Wrapped Screen Tube

1. Inroduction:

The welded stainless steel water well screen is made up of support wire and filter wire. with the material of stainless steel 302,304,316,304L,316L.

2. Component:

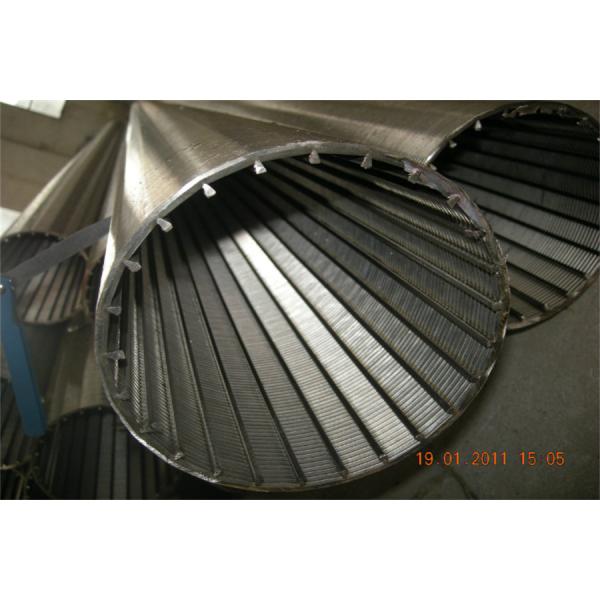

The support wires can be round wires, triangular wires or trapezoidal wires, while the filter wires is triangular wires(V shape wires).

3. Characteristics:

precise aperture size, high filter precision,firm structure, high-temperature resistance, corrosion resistance and mechanical performance is good,long service life, safe and reliable, etc. Can be used in various media filtration and screening.

4. Specifications for your reference:

5. Application:

widly used in coal,mine,water treatment and etc field.

Stainless Steel Water Well Screen Pipe Description:

Material:

Low Carbon(Q195, Q235)
Low carbon galvanized
Stainless steel ( 304, 304L,316, 316L, 321)
Stainless Steel No Magnetic( 201, 205)

Mild steel wire

Iron wire

Shape: Tube/pipe (Wire-wrapped stainless steel screen pipe, Water & Oil Well screen, Wedge wire screen, Changeable filter element, screen nozzle, Screen Cylinder, Spiral screen pipe, Strainer tube, Filter circumference, filter drum, v wire slot tube, screen basket. Cylinder screen,stainless steel lateral arm, hub lateral, head lateral,etc)

Slot (mm):0.08, 0.1, 0.15,0.20, 0.25, 0.30, 0.35, 0.40,0.45, 0.50, 0.60, 0.7, 0.75,1.00, 1.50, 2.00, 3.00 and so on.

Length ( mm): 50, 100, 200, 500, 1000,2000, 3000……6000( max)

Weaving: v wire / wedge wire wrapped Welded

LOOPED WEDGE WIRESCREEN TUBE

Well Scren Tube (Strainer Pipe) is a kind of filtered water tubing with the perforation. it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

WELDED PROFILE WIRE SCREEN PIPE/TUBE

End connection:

welded ring
threaded male /female coupling

V WIRE SLOT TUBE

Used: Application in the water well, oil, mining, coal, oil, chemical fertilizers, food, environmental protection, sewage treatment, food filter screen mesh and other industries to sew, oil filter, wire net in salt industry,etc.

Stainless Steel Water Well Screen Pipe Specifications

Features: Consistent weld integrity at every point of welding.

Tight slot control for consistent flow rates.

Stringent Quality Control measures ensure a quality product.

Weld Rings or Threaded Fittings as per customer requirements.

Multiple wire profile options to suit applications and specification.

Geological formations comprised of small, fine particles

Water wells where gravel packs will be installed

Thin aquifers, where maximum open area is required

Large and small diameter deep wells

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.

Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Anping county Xinlu Wire Mesh Products Co.,Ltd is located in Anping county which well knowen of “The hometown of wire mesh in China”.

We are a factory specializing in the production of wedge wire screens with 5 sets wedge wire screen machines and one set laser cutting machine. The diameter production range is from 25.4mm to 2 meters, and the minimum slot can reach 30 microns. various sizes of wedge screen orders can be accepted. All wedge wire screens surface treatment are electrolytically polished or pickled polished or galvanized. Bright, no burrs, no injury to hands. Believe it can meet your needs.
