| Categories | Roller Coating Equipment |
|---|---|
| Brand Name: | Osmanuv |
| Model Number: | OSM-GT-1320-Ⅶ |
| Certification: | ISO9001 And CE |
| Place of Origin: | CHINA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union |
| Delivery Time: | 35-45 Working days |
| Packaging Details: | Wooden Box |
| Supply Ability: | According to customer's demand |

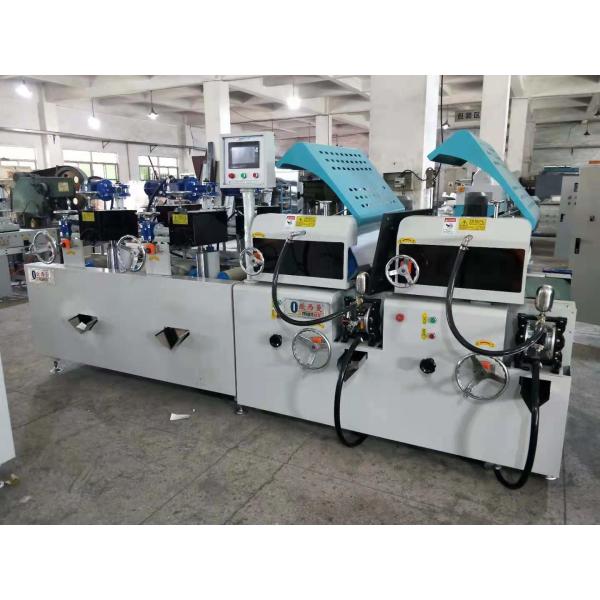

| Product Name: | Multifunctional coating machine |
| Mechanical dimensions: | 1500mm long × 1650mm wide × 1660mm high. (According to actual size) |
| Color: | Grass green + computer white |
| Roller coating system:: | 3 rollers (respectively mirror steel roller, silica gel roller, mirror steel roller) are specially designed, and the running direction of each roller can be positive and reversible, and each roller can be independently controlled. , Both front and rear ste |
| Belt:: | adopt German Sieglin PVC anti-static belt, stable conveying, stable performance and long service life. |
| Effective working size (effective width): | 1320 |
| Company Info. |
| Dongguan Osmanuv Machinery Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Professional roller coating equipment designed for efficient surface treatment of various materials including wood, plastic, and metal. This multifunctional coating machine delivers smooth, uniform finishes with excellent coverage and no color difference.
| 1 | Mechanical Size | 2000mm × 3200mm wide × 1520mm high (Subject to actual size) |
| 2 | Effective Working Size | a. Effective width: 2000mm b. Thickness: 3-180mm c. Length (shortest): 500mm |
| 3 | Material | The shell is made of 1.5mm steel plate bending and welding, surface treated with liquid paint, and supporting wall made of 20cm steel plate (A3 material) |
| 4 | Coating Part | Four groups of roll coating system, each consisting of steel roller and silica gel wheel, with independent up/down lifting capability |
| 5 | Side Cots | Diameter: ￠150mm, length: 200mm. Made from Japanese high-quality polyurethane, wear-resistant with good elasticity. Hardness customizable (30-50 degrees). Features high-quality coupling transmission with KHV bearings and frequency converter speed control |
| 6 | Side Metering Wheel | Diameter: ￠100mm, length: 200mm. Made from 45# seamless steel tube with CO² welding, surface fine grinding, dynamic balance with runout less than 0.05mm. Hard chrome plating and polishing for bright finish |
| 7 | Conveyor Roller | Power: 1.5KW, diameter: ￠100mm, length: 1320mm. Made from 45# seamless steel tube with CO² welding, surface fine grinding, dynamic balance with runout less than 0.05mm. Hard chrome plating and polishing for bright finish. Direct plug-in connection drive |
| 8 | Transmission Mode | 100mm transmission roller transmission, width: 1320mm. Long service life with smooth transmission |
| 9 | Transmission Speed | 5-20m/min |
| 10 | Working Height | 0-850mm (working face height from ground). Roller height equipped with position display |
| 11 | Control System | 5 sets of hollow worm gear reducer and 5 sets of frequency converter. Each drum can be adjusted independently |
|
