FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage

Categories FAG BEARING IN CHINA
Brand Name: KOYO
Model Number: 2308-TVH
MOQ: 1
Price: USD 0.5-10 PCS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 PCS/MON
Delivery Time: 3-15 DAYS
Packaging Details: Single Box , Industrial Packing
Number of row: Double Row
Type: Ball
Package: Box,Original Package
Cage: Steel Cage
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage

Description


This 2308-TVH bearing is a double row, extra wide series, metric self aligning bearing with a solid cage made from glass fibre reinforced polyamide 66 and a normal radial internal clearance. The bearing's dimensions are 40x90x33mm

2308TVH
Extra Wide40mm - Bore SizeCylindrical BoreOpen TypeSolid Cage Made From Glass Reinforced Polyamide 66Normal Radial Internal Clearance

Product Information


BRAND:
FAG Brand Logo




SKU:
2308-TVH-FAG




AVAILABILITY:
IN STOCK




WEIGHT:
0.9220 KGS


Main Dimensions & Performance Data
d40 mmBore diameter
D90 mmOutside diameter
B33 mmWidth
rmin1.5 mmMinimum chamfer dimension
Cr46,000 NBasic dynamic load rating, radial
C0r13,500 NBasic static load rating, radial
Cur860 NFatigue load limit, radial
nG7,900 1/minLimiting speed
nϑr8,700 1/minReference speed
≈m0.925 kgWeight
Mounting dimensions
da min49 mmMinimum diameter shaft shoulder
Da max81 mmMaximum diameter of housing shoulder
ra max1.5 mmMaximum fillet radius
Temperature range
Tmin-30 °COperating temperature min.
Tmax120 °COperating temperature max.
Calculation factors
e0.43Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
D174.5 mmShoulder diameter outer ring
Y11.46Dynamic axial load factor
Y22.25Dynamic axial load factor
d153.7 mmShoulder diameter inner ring
Y01.52Static axial load factor

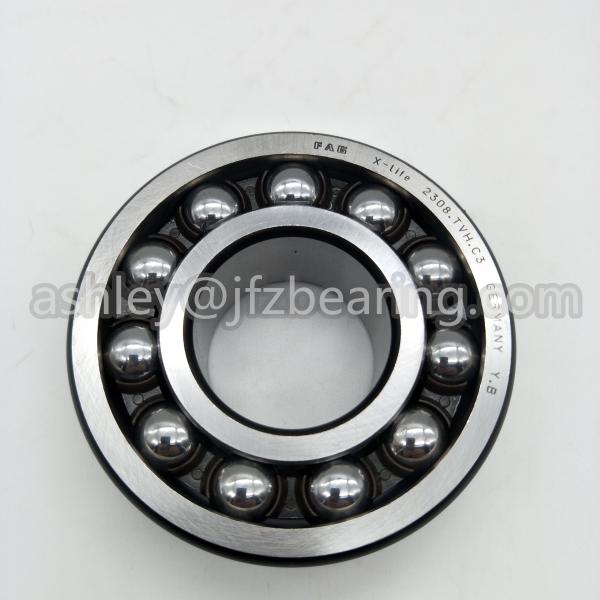

Product Picture


Packing , Payment , Delievry and Stock


Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaginga)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis


Buy FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage at wholesale prices
