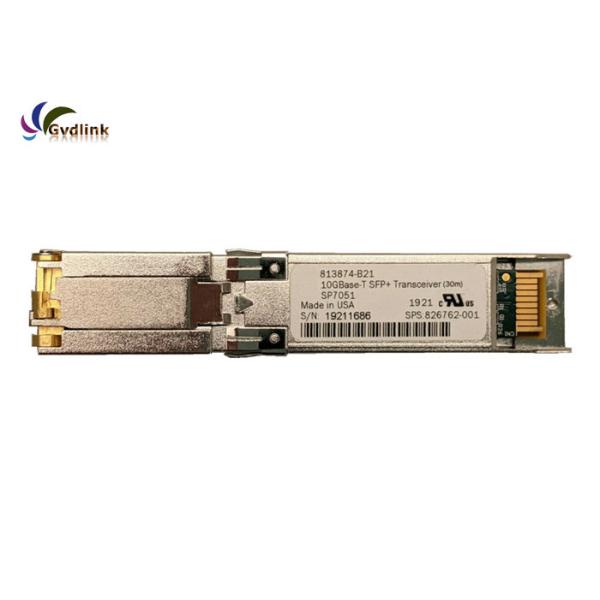

Copper 2.5W SFP+ Fiber Transceiver RJ45 30m 813874-B21 HPE Compatible

813874-B21 HPE Compatible 10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module

Description

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

​Our HP SFP 10G Compatible product

Features

• Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
• Hot-pluggable SFP footprint
• Compact RJ-45 connector assembly
• RoHS compliant and lead-free
• Single +3.3V power supply
• 10 Gigabit Ethernet over Cat 6a cable- Max 30M
• Ambient Operating temperature: 0°C to +65°C

Our product line show

Shenzhen Gaveid communication Technology Co.,Ltd was founded in 2008 . We design , develop , manufacture and distribute the optical product to satisfy customer 's need for optical communication in Ethernet , SDH/SONET , Video monitor , FTTH , telecommunication , CATV system etc . Currently Gvdlink can offer the complete product lines including SFP , SFP+ , XFP , QSFP , DWDM , CWDM etc., From 155M~100G optical fiber transceiver , And DWDM , CWDM MUX/DEMUX Passive solution , We also provide cable , optical cord , network card and POE switch for the networking sulotion . We provide to our customers with our high-performance , cost-effective products to fulfill their requirements , contributing this way to the customer ' s success and satisfaction .
